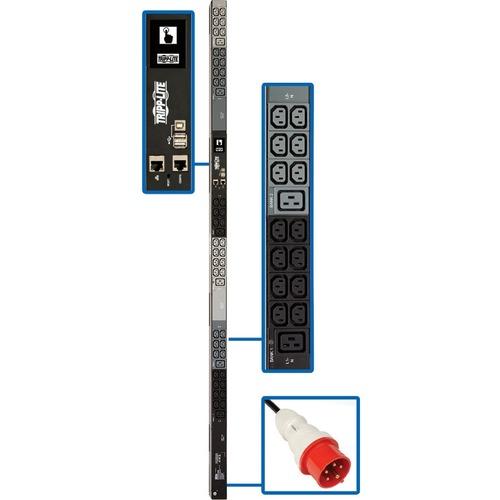

Tripp Lite PDU3XEVN6G20 48-Outlets PDU - Monitored - IEC 60309 16/20A RED (3P+N+E) - 42 x IEC 60320 C13, 6 x IEC 60320 C19 - 380 V AC, 400 V AC, 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
Tripp Lite PDU3XEVN6G20 48-Outlets PDU - Monitored - IEC 60309 16/20A RED (3P+N+E) - 42 x IEC 60320 C13, 6 x IEC 60320 C19 - 380 V AC, 400 V AC, 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
Tripp Lite PDU3XEVN6G20 48-Outlets PDU - Monitored - IEC 60309 16/20A RED (3P+N+E) - 42 x IEC 60320 C13, 6 x IEC 60320 C19 - 380 V AC, 400 V AC, 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
Features
3-Phase PDU Distributes and Monitors Network-Grade Power
This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for data centers, server rooms and high-density network closets, the PDU3XEVN6G20 features 42 C13 and six C19 220/230/240V outlets in three load banks, which distribute AC power to rack equipment. Each load bank is accompanied by an LED that illuminates green when it is ready to distribute power. The banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.
Built-In LX Platform Network Management Card Allows Remote Access 24/7
The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The monitored PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.
Color Touchscreen LCD Offers Important Data at a Glance
An easy-to-navigate color touchscreen LCD reports network data, including IP address, input current level per phase, and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 0U PDU via mobile device. If an EnviroSense2 module is connected to the 3-phase PDU, the LCD also displays status and environmental data, such as temperature and humidity.
Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 70-inch 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with IEC 309 16/20A Red (3P+N+E) 380/400/415V 3-phase input connects the PDU to a compatible AC power source, generator or protected UPS.
TAA-Compliant for GSA Schedule Purchases
The PDU3XEVN6G20 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
2-Year Warranty
The PDU3XEVN6G20 is backed by a 2-year warranty, ensuring reliability and performance.
- 42 C13 and 6 C19 220/230/240V outlets distribute AC power to connected equipment
- Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access
- Installs in 0U of rack space in standard 19 in. racks using included mounting hardware
- 6 ft. cord with IEC 309 16/20A Red (3P+N+E) 3-phase input connects to AC power source
- Color touchscreen LCD provides current levels, environmental data and network info
| Network (RJ-45) | Yes |
| Management |
|
| Limited Warranty | 2 Year |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| TAA Compliant | Yes |
| Input Voltage | 415 V AC |
| 415 V AC | |
| 400 V AC | |
| 415 V AC | |
| 400 V AC | |
| 400 V AC | |
| 380 V AC | |
| 380 V AC | |
| 380 V AC | |
| Output Voltage | 220 V AC |
| 230 V AC | |
| 240 V AC | |
| 240 V AC | |
| 240 V AC | |
| 220 V AC | |
| 230 V AC | |
| 220 V AC | |
| 230 V AC | |
| Input Current | 16 A |
| Power Rating (Watt) | 11.50 kW |
| Product Type | PDU |
| Manufacturer Part Number | PDU3XEVN6G20 |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer | Tripp Lite |
| Product Model | PDU3XEVN6G20 |
| Product Name | PDU3XEVN6G20 48-Outlets PDU |
| Brand Name | Tripp Lite |
| Weight (Approximate) | 6.12 kg |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70" (1778 mm) |
| Width | 2.17" (55.12 mm) |
| Depth | 2.86" (72.64 mm) |
| Mounting Orientation | Vertical |
| Plug/Connector Type | IEC 60309 16/20A RED (3P+N+E) |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| PDU Type | Monitored |
| Receptacle Detail | 42 x IEC 60320 C13 |
| 6 x IEC 60320 C19 |
