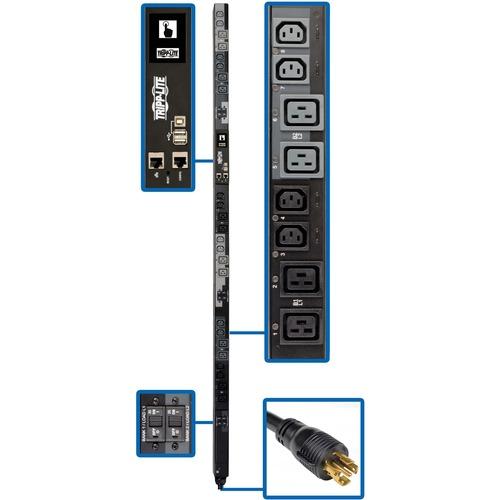

Tripp Lite PDU3XEVSR6L2230 24-Outlets PDU - Switched - NEMA L22-30P - 12 x IEC 60320 C13, 12 x IEC 60320 C19 - 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant

Tripp LiteSKU: PL5-PDU3XEVSR6L2230-5218ZT-0037332206862-EN
filler

Precio:
Precio de venta$2,507.99

Descripción

Tripp Lite PDU3XEVSR6L2230 24-Outlets PDU - Switched - NEMA L22-30P - 12 x IEC 60320 C13, 12 x IEC 60320 C19 - 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant

3-Phase PDU Distributes, Monitors and Manages Network-Grade Power

Recommended for data centers, server rooms and high-density network closets, this switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. You can more efficiently manage network power consumption and remotely reboot locked network items without having to visit the site. Reducing the number of on-site visits can help lower the cost of data center maintenance, thus lowering the 0U PDU's total cost of ownership.

24 Outlets Dispense AC Power to Connected Equipment

During normal operation, 24 individually controllable outlets-12 C13 and 12 C19-in six separately breakered load banks distribute AC power to rack equipment. Each 240V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets and banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

Built-In LX Platform Network Management Card Allows Remote Access 24/7

The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.

Color Touchscreen LCD Offers Important Data at a Glance

An easy-to-navigate color touchscreen LCD reports network data, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 3-phase PDU via mobile device. If an EnviroSense2 module is connected to the PDU, the LCD also displays its status and environmental data, such as temperature and humidity.

Easy to Install Vertically in an EIA-Standard 19 in. Rack

The 70-inch 0U PDU mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A six-foot cord with NEMA L22-30P 415V 3-phase input connects the switched PDU to a compatible AC power source, generator or protected UPS.

TAA-Compliant for GSA Schedule Purchases

The PDU3XEVSR6L2230 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

2-Year Warranty

The PDU3XEVSR6L2230 is backed by a 2-year warranty, ensuring reliability and performance.

Features
  • 12 C13 and 12 C19 240V outlets distribute AC power to connected equipment
  • Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access
  • Remote power monitoring and control reduces on-site visits and maintenance costs
  • 6 ft. cord with NEMA L22-30P 415V 3-phase input connects to compatible AC source
  • Color touchscreen LCD provides current levels, environmental data and network info
Network (RJ-45) Yes
Management
    • IPv4
    • IPv6
    • HTTP
    • HTTPS
    • SMTP
    • SNMPv1
    • SNMPv2
    • SNMPv3
    • telnet
    • SSH
    • FTP
    • DHCP
    • NTP
Limited Warranty 2 Year
Package Contents
  • PDU3XEVSR6L2230 24-Outlets PDU
  • Built-in LX Platform Interface
  • Configuration Cable
  • 24 x Plug-lock Insert Sleeves
  • Rack-Mounting Hardware
  • Spare Mounting Buttons
  • Mounting Bracket Accessory
  • Owner's Manual
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
Input Voltage 415 V AC
Output Voltage 240 V AC
Input Current 24 A
Power Rating (Watt) 17.30 kW
Product Type PDU
Manufacturer Part Number PDU3XEVSR6L2230
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model PDU3XEVSR6L2230
Product Name PDU3XEVSR6L2230 24-Outlets PDU
Brand Name Tripp Lite
Weight (Approximate) 7.67 kg
Mount Type Rack-mountable
Rack Height 0U
Height 70" (1778 mm)
Width 2.17" (55.12 mm)
Depth 2.52" (64.01 mm)
Mounting Orientation Vertical
Protection Type Overload Protection
Plug/Connector Type NEMA L22-30P
Phase Three Phase
Receptacle Type IEC 60320 C13
IEC 60320 C19
PDU Type Switched
Receptacle Detail 12 x IEC 60320 C19
12 x IEC 60320 C13
