Tripp Lite Monitored PDU3XVN10G16 36-Outlets 11kVA PDU - Monitored - 6 x IEC 60320 C19, 30 x IEC 60320 C13 - 11 kW - Vertical - Rack-mountable
Tripp Lite Monitored PDU3XVN10G16 36-Outlets 11kVA PDU - Monitored - 6 x IEC 60320 C19, 30 x IEC 60320 C13 - 11 kW - Vertical - Rack-mountable
Tripp Lite Monitored PDU3XVN10G16 36-Outlets 11kVA PDU - Monitored - 6 x IEC 60320 C19, 30 x IEC 60320 C13 - 11 kW - Vertical - Rack-mountable

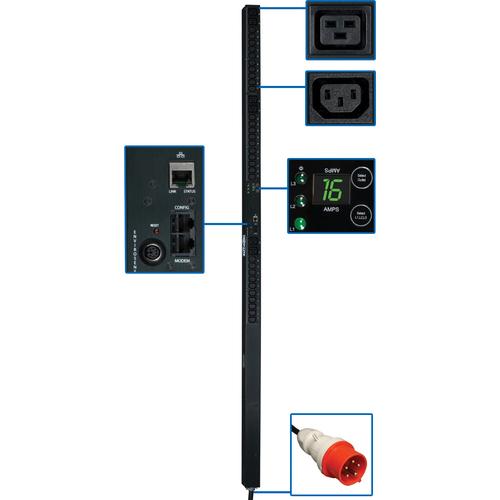

PDU3XVN10G16 Monitored 3 phase 400V input / 230V output Zero U vertical rack PDU supports 11kW total output capacity. Includes 10 ft. / 3m input cord with IEC-309 Red 16A (3P+N+E) 400V 3 phase input plug and 36 230V outlets arranged in 3 single phase output load banks. Each output loading bank contains 12 outlets (10 C13 and 2 C19). Visual meter with scroll button and PowerAlert remote monitoring interface enables real-time current monitoring for each output phase. Supports 0U vertical rackmount installation with included mounting accessories. Toolless button-mount installation supported in compatible racks. Included cord retention brackets keep vital network equipment plugged in and continuously powered.
- Monitored 11kW 3 Phase 380/400V input, 220/230V output PDU; 178cm 0U vertical rackmount
- Reports voltage, frequency and load per-phase via built in ethernet interface
- Visual current meter; Toolless button-mount installation
- IEC-309 Red 16A (3P+N+E) 380/400V 3 phase input; 3m line cord
- 30 C13 & 6 C19 single phase 230V outlets; Included cord retention brackets
- Temperature, humidity and contact closure monitoring options
| Management |
Protocols: |
| Limited Warranty | 2 Year |
| Output Voltage | 230 V AC |
| Input Voltage Range | 400 V AC |
| Power Rating (VA) | 11 kVA |
| Additional Information |
Input Receptacle: IEC-309 Red 16A (3P+N+E) |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| PDU Type | Monitored |
| Receptacle Detail | 30 x IEC 60320 C13 |
| 6 x IEC 60320 C19 |
| Weight (Approximate) | 5.72 kg |
| Mount Type | Rack-mountable |
| Height | 70" (1778 mm) |
| Width | 2.19" (55.63 mm) |
| Depth | 3.58" (90.93 mm) |
| Mounting Orientation | Vertical |
| Product Type | PDU |
| Manufacturer Part Number | PDU3XVN10G16 |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer | Tripp Lite |
| Product Model | PDU3XVN10G16 |
| Product Name | Monitored PDU3XVN10G16 36-Outlets 11kVA PDU |
| Product Series | Monitored |
| Brand Name | Tripp Lite |
