Tripp Lite Switched PDU3XVSR6L2230B 30-Outlets PDU - Switched - NEMA L22-30P - 24 x IEC 60320 C13, 6 x IEC 60320 C19 - 17.30 kW - 0U - Vertical - Rack-mountable

Tripp LiteSKU: PL5-PDU3XVSR6L2230B-45735W-0037332170255-EN
filler

Precio:
Precio de venta$3,256.99

Descripción

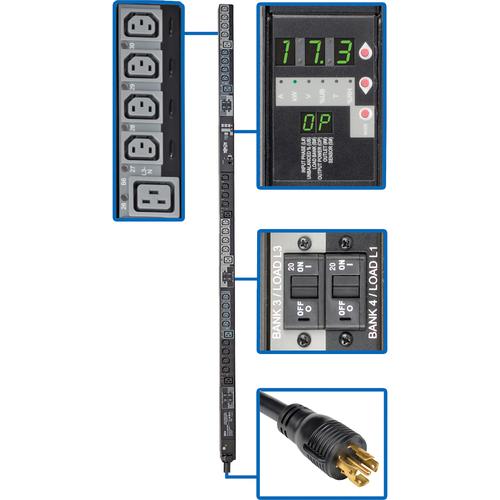

Tripp Lite Switched PDU3XVSR6L2230B 30-Outlets PDU - Switched - NEMA L22-30P - 24 x IEC 60320 C13, 6 x IEC 60320 C19 - 17.30 kW - 0U - Vertical - Rack-mountable

Tripp Lite 3 phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps per-phase or per-receptacle can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. Highly accurate current metering offers +/-1% billing-grade current monitoring and recording ability for each output phase, breakered load bank and individual outlet.

Features
  • Switched 17.3kW 3-Phase 415V input, 240V output PDU
  • Reports voltage & load per-outlet or per phase via ethernet interface
  • 1% billing-grade accuracy; Digital display reports detailed status information
  • 70in / 1778mm 0U vertical format; Toolless button-mount installation
  • 24 C13 & 6 C19 single phase outlets; Plug-lock cable retention inserts
  • NEMA L22-30P 3 phase input; 6ft 1.8m line cord
Management

    Protocols:

    • HTTP
    • HTTPS
    • SMTP
    • SNMPv1
    • SNMPv2
    • Telnet
    • SSH
    • FTPP
    • DHCP
    • BOOTP
    • NTP
Limited Warranty 2 Year
Output Voltage 240 V AC
Input Current 24 A
Input Voltage Range 415 V AC
Power Rating (Watt) 17.30 kW
Package Contents
  • Switched PDU3XVSR6L2230B 30-Outlets PDU
  • Plug-Lock Cable Retention Inserts
  • Spare Installation Buttons (2 9mm / 4 6mm)
  • Mounting Brackets
  • Configuration Cable
  • Owner's Manual
Certifications & Standards
    • UL60950-1
    • CSA22.2
    • NOM
    • FCC Class A
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
Protection Type Overload Protection
Plug/Connector Type NEMA L22-30P
Receptacle Type IEC 60320 C19
IEC 60320 C13
PDU Type Switched
Receptacle Detail 6 x IEC 60320 C19
24 x IEC 60320 C13
Product Type PDU
Manufacturer Part Number PDU3XVSR6L2230B
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model PDU3XVSR6L2230B
Product Name Switched PDU3XVSR6L2230B 30-Outlets PDU
Product Series Switched
Brand Name Tripp Lite
Weight (Approximate) 7.90 kg
Mount Type Rack-mountable
Rack Height 0U
Cord Length 6 ft
Height 70" (1778 mm)
Width 2.17" (55.12 mm)
Depth 2.52" (64.01 mm)
Mounting Orientation Vertical
