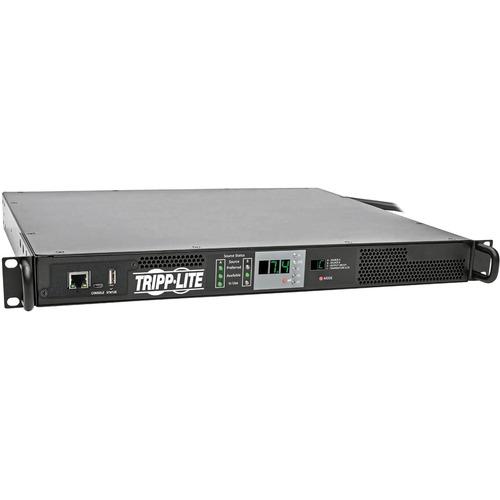

Tripp Lite PDUMNH32HVAT 7.4kW Single-Phase 230V ATS/Monitored PDU - Monitored - IEC 60309 32A Blue (2P+E) - 230 V AC - 7.70 kW - 1U - Horizontal - Rack-mountable

Tripp LiteSKU: PL5-PDUMNH32HVAT-8577CH-0037332187871-EN
filler

Precio:
Precio de venta$2,184.99

Descripción

Tripp Lite PDUMNH32HVAT 7.4kW Single-Phase 230V ATS/Monitored PDU - Monitored - IEC 60309 32A Blue (2P+E) - 230 V AC - 7.70 kW - 1U - Horizontal - Rack-mountable

The PDUMNH32HVAT 7.4kW Single-Phase 230V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and has one IEC 309 32A Blue outlet for connecting a single device or an additional 230V multi-outlet PDU with IEC 309 32A Blue plug, such as Tripp Lite's PDUMV32HV.
Dual 3 meter (10ft) input cords, each with IEC 309 32A Blue input plug, connect to any two separate primary and secondary input power sources, including out-of-phase input sources. The PDU constantly evaluates the power quality of both inputs. To ensure connected equipment remains powered, dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds if the primary source fails or becomes unstable.
Built-in LX Platform network management interface allows remote access to the PDU for power monitoring, configuration, control and to receive user-configurable notifications. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. Provides real-time load/current data with billing-grade accuracy (+/- 1 percent). It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Features
  • Two IEC 309 32A Blue (2P+E) inputs w/10 ft. (3 m) cords
  • IEC 309 32A Blue (2P+E) outlet for connecting device or 0U PDU
  • Automatic transfer switching within 1-5 ms
  • Ethernet network interface for remote access
  • Digital display with LEDs for real-time status monitoring
Management
    • HTTP
    • HTTPS
    • SMTP
    • SNMPv1
    • SNMPv2
    • SNMPv3
    • Telnet
    • SSH
    • FTP
    • DHCP
    • NTP
Input Voltage 230 V AC
Output Voltage 200 V AC
200 V AC
200 V AC
200 V AC
200 V AC
208 V AC
208 V AC
240 V AC
240 V AC
240 V AC
240 V AC
208 V AC
208 V AC
208 V AC
220 V AC
220 V AC
220 V AC
220 V AC
220 V AC
230 V AC
230 V AC
230 V AC
230 V AC
230 V AC
240 V AC
Input Current 32 A
Input Voltage Range 200 V AC - 240 V AC
Power Rating (Watt) 7.70 kW
Limited Warranty 2 Year
Package Contents
  • PDUMNH32HVAT 7.4kW Single-Phase 230V ATS/Monitored PDU
  • Rack-Mounting Brackets
  • Rear Support Rail Kit
  • Owner's Manual
Environmentally Friendly Yes
Environmental Certification RoHS
Plug/Connector Type IEC 60309 32A Blue (2P+E)
Receptacle Type IEC 60309 32A BLUE (2P+E)
PDU Type Monitored
Product Type PDU
Manufacturer Part Number PDUMNH32HVAT
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model PDUMNH32HVAT
Product Name PDUMNH32HVAT 7.4kW Single-Phase 230V ATS/Monitored PDU
Brand Name Tripp Lite
Weight (Approximate) 8.29 kg
Mount Type Rack-mountable
Rack Height 1U
Height 1.73" (44 mm)
Width 16.93" (430 mm)
Depth 14.02" (356 mm)
Mounting Orientation Horizontal
