Tripp Lite PDUMV20HVNETLX 24-Outlet PDU - Switched - NEMA L6-20P, IEC 60320 C20 - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack-mountable - TAA Compliant

Tripp Lite PDUMV20HVNETLX 24-Outlet PDU - Switched - NEMA L6-20P, IEC 60320 C20 - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack-mountable - TAA Compliant

Precio habitual $1,711.99 CAD
Precio habitual Precio de oferta $1,711.99 CAD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Tripp Lite PDUMV20HVNETLX 24-Outlet PDU - Switched - NEMA L6-20P, IEC 60320 C20 - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack-mountable - TAA Compliant

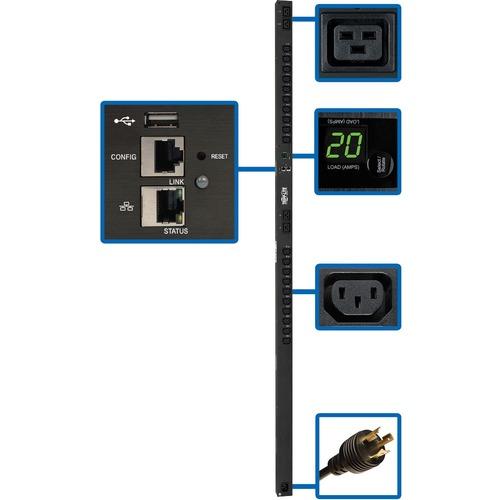

The PDUMV20HVNETLX 3.2-3.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-20P plug connects the PDU's C20 inlet to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
Features
  • 3.2-3.8kW 200/208/230/240V switched PDU
  • 24 individually controllable outlets-20 C13, 4 C19
  • Built-in LX Platform interface for 24/7 remote access
  • Digital ammeter for on-site load monitoring in real time
  • C20 inlet with 10ft NEMA L6-20P AC power cord
Management
    Protocols:
    • HTTP
    • HTTPS
    • SMTP
    • SNMPv1
    • SNMPv2
    • SNMPv3
    • telnet
    • SSH
    • FTP
    • DHCP
    • NTP
Limited Warranty 2 Year
Package Contents
  • PDUMV20HVNETLX 24-Outlet PDU
  • Built-in LX Platform Interface
  • Detachable NEMA L6-20P to C19 power cord, 10 ft.
  • Configuration Cable
  • 24 x Plug-lock Inserts
  • Rack-mounting Hardware
  • Mounting Bracket Accessory
  • Owner's Manual
Country of Origin United States
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
Input Voltage 230 V AC
Output Voltage 230 V AC
Input Current 20 A
Input Voltage Range 200 V AC - 240 V AC
Power Rating (Watt) 3.80 kW
Product Type PDU
Manufacturer Part Number PDUMV20HVNETLX
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model PDUMV20HVNETLX
Product Name PDUMV20HVNETLX 24-Outlet PDU
Brand Name Tripp Lite
Weight (Approximate) 3.86 kg
Mount Type Rack-mountable
Rack Height 0U
Height 70" (1778 mm)
Width 2.19" (55.63 mm)
Depth 2.65" (67.31 mm)
Mounting Orientation Vertical
Plug/Connector Type NEMA L6-20P
IEC 60320 C20
Phase Single Phase
Receptacle Type IEC 60320 C13
IEC 60320 C19
PDU Type Switched
Receptacle Detail 4 x IEC 60320 C19
20 x IEC 60320 C13
