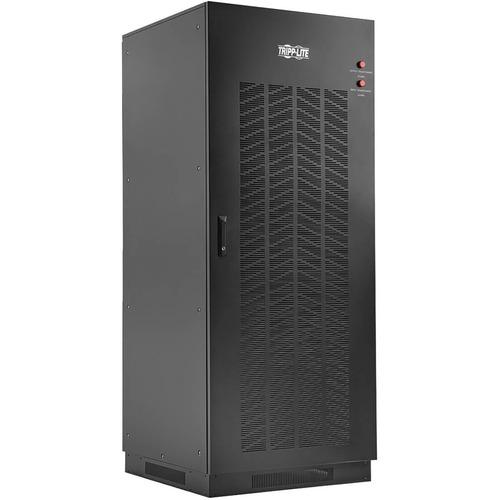

Tripp Lite SmartOnline S3MT-100KWR480V Isolation Transformer - 100 kVA - 480 V AC Input - 480 V AC Output
Tripp Lite SmartOnline S3MT-100KWR480V Isolation Transformer - 100 kVA - 480 V AC Input - 480 V AC Output
Tripp Lite SmartOnline S3MT-100KWR480V Isolation Transformer - 100 kVA - 480 V AC Input - 480 V AC Output
Get Complete Step-Down/Step-Up and Isolation Protection
Tripp Lite's S3MT-100KWR480V includes two transformers in a single cabinet: a 480V (Delta) to 208V (Wye) input isolation step-down transformer and a 208V (Wye) to 480V (Wye) output auto step-up transformer. It isolates the UPS and connected components from line surges and spikes caused by utility power disruptions that can damage equipment or corrupt data. The dual transformers are ideal for 4-wire (3Ph+N+PE) loads in government, manufacturing, healthcare and corporate settings with 480V electrical mains and 480V IT loads.
Performs with High Efficiency up to 97.8%
Not only is the S3MT-100KWR480V wrap-around transformer very efficient, with up to 97.8 percent efficiency, but it is also very quiet with a noise profile less than 65 dBA. Built-in circuit breakers on both transformers help prevent dangerous power overloads. Eight ball-bearing cooling fans help prevent overheating. An overheat-sensing relay and switch combine with red alarm indicators to provide over-temperature warning and overheating protection.
Small Footprint for Quick Installation in a Compact Space
The compact footprint enables installation of the S3MT-100KWR480V with minimal space. The rugged stainless steel housing ships ready for immediate tower installation with a compatible 80-100kVA/kW Tripp Lite S3M-Series 3-phase UPS system.
- Dual 100kVA/kW 480V transformers for government, healthcare and corporate settings
- Up to 97.8% efficiency with a quiet acoustic profile less than 65 dBA
- Resettable protection relay/switch and red alarm indicators warn against overheating
- Rugged stainless steel housing with compact footprint comes ready for installation
- Compatible with select 80-100kVA/kW Tripp Lite S3M-Series 208V 3-phase UPS systems
- 2-year limited warranty
| Limited Warranty | 2 Year |
| Input Voltage | 480 V AC |
| Output Voltage | 480 V AC |
| Power Rating | 100 kVA |
| Input Receptacle Type | Hardwired |
| Output Receptacle Type | Hardwired |
| Product Type | Isolation Transformer |
| Manufacturer Part Number | S3MT-100KWR480V |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer | Tripp Lite |
| Product Model | S3MT-100KWR480V |
| Product Name | SmartOnline S3MT-100KWR480V Isolation Transformer |
| Product Line | SmartOnline |
| Product Series | S3MT |
| Brand Name | Tripp Lite |
| Additional Information |
INPUT TRANSFORMER : |
| Package Contents |
|
| Compatibility |
Tripp Lite 80-100kVA/kW S3M-Series 208V 3-Phase UPS System |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Weight (Approximate) | 889.04 kg |
| Form Factor | Tower |
| Height | 77.60" (1971.04 mm) |
| Width | 23.60" (599.44 mm) |
| Depth | 33.50" (850.90 mm) |
