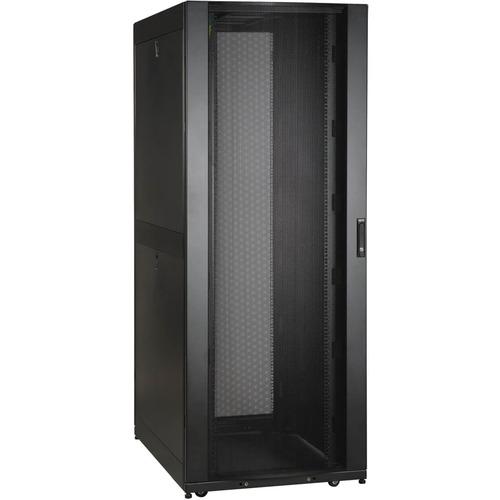

Tripp Lite SmartRack SR45UBWDVRT Rack Cabinet - 45U Rack Height x 19" (482.60 mm) Rack Width - Black - 1020.58 kg Dynamic/Rolling Weight Capacity - 1360.78 kg Static/Stationary Weight Capacity
Tripp Lite SmartRack SR45UBWDVRT Rack Cabinet - 45U Rack Height x 19" (482.60 mm) Rack Width - Black - 1020.58 kg Dynamic/Rolling Weight Capacity - 1360.78 kg Static/Stationary Weight Capacity
Tripp Lite SmartRack SR45UBWDVRT Rack Cabinet - 45U Rack Height x 19" (482.60 mm) Rack Width - Black - 1020.58 kg Dynamic/Rolling Weight Capacity - 1360.78 kg Static/Stationary Weight Capacity
SR45UBWDVRT is a WIDE version of our standard 45U SmartRack Enclosure (750mm wide (29.5") compared to the standard 600mm wide) and includes preinstalled SRCABLEVRT3. The SRCABLEVRT3 helps eliminate cable stress by organizing the cables within the enclosure. The vertical cable manager is 6-ft high and 3" wide.
The SR45UBWDVRT houses 3000lbs of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.
With its locking, reversible, removable front and rear doors and locking, removable side panels, the SR45UBWDVRT provides ultimate equipment safety. The side panels are half size for ease of removal and re-installation. The split rear door design allows the enclosure to be placed closer to a wall. The SR45UBWDVRT meets all requirements toward PCI DSS compliance.
The top panel of the SR45UBWDVRT is vented to help remove warm air from the enclosure and draw in cool air by convection. the top panel includes ports for cable routing, and can be quickly removed without tools.
All components of the SR45UBWDVRT are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.
To simplify deployment, the SR45UBWDVRT comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving enclosures over long distances.
The SR45UBWDVRT comes with a 5-year product warranty. As part of the SmartRack family it is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirements.
- 45U SmartRack enclosure with doors and side panels
- 30" (750mm) width and 42" (1050mm) depth
- Pre-Installed 6-ft vertical cable manager - high capacity for large cable bundles
- 4 interior vertical posts with unthreaded square hole openings
- Massive front to rear ventilation capacity
- 3000 lb stationary / 2250 lb rolling load capacity
- Locking, removable, reversible front and rear doors
- Locking, removable side panels keyed alike with doors
| Limited Warranty | 5 Year |
| Additional Information |
|
| Package Contents |
|
| Country of Origin | China |
| Assembly Required | No |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Product Type | Rack Cabinet |
| Manufacturer Part Number | SR45UBWDVRT |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer | Tripp Lite |
| Product Model | SR45UBWDVRT |
| Product Name | SmartRack SR45UBWDVRT Rack Cabinet |
| Product Line | SmartRack |
| Brand Name | Tripp Lite |
| Weight (Approximate) | 154.22 kg |
| Color | Black |
| Rack Width | 19" (482.60 mm) |
| Rack Height | 45U |
| Height | 83.75" (2127.25 mm) |
| Width | 29.63" (752.60 mm) |
| Depth | 43" (1092.20 mm) |
| Static/Stationary Weight Capacity | 1360.78 kg |
| Dynamic/Rolling Weight Capacity | 1020.58 kg |
