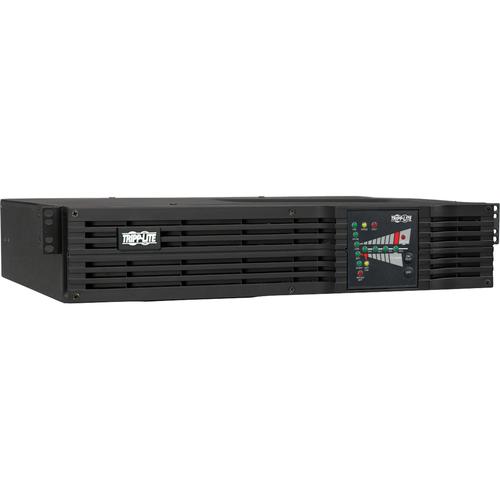

Tripp Lite SU2200RTXL2UN UPS with Pre-installed SNMPWEBCARD - 2U Rack/Tower - 6 Hour Recharge - 4.50 Minute Stand-by - 120 V AC Input - 6 x NEMA 5-15/20R, 1 x NEMA L5-20R
Tripp Lite SU2200RTXL2UN UPS with Pre-installed SNMPWEBCARD - 2U Rack/Tower - 6 Hour Recharge - 4.50 Minute Stand-by - 120 V AC Input - 6 x NEMA 5-15/20R, 1 x NEMA L5-20R
Tripp Lite SU2200RTXL2UN UPS with Pre-installed SNMPWEBCARD - 2U Rack/Tower - 6 Hour Recharge - 4.50 Minute Stand-by - 120 V AC Input - 6 x NEMA 5-15/20R, 1 x NEMA L5-20R
Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. PowerAlert UPS monitoring software is available via free download. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation and output power availability. Audible alarm with push-button momentary alarm-cancel. Programmable self-test. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.- 2200VA / 2.2kVA / 1600 watt on-line double-conversion 2U rack/tower UPS
- 110/120V +/-2% output at 50/60Hz, high efficiency economy mode option
- Expandable runtime, Hot-swap batteries; 19 in / 48.3cm installed depth
- USB, RS232, EPO ports and Pre-installed WEBCARDLX network interface
- Front panel status LEDs with detailed load and battery metering
- 2 independently switchable output load banks
- NEMA 5-20P input; L5-20R & 5-15/20R outlets
Status Indicators |
|
Limited Warranty | 2 Year |
Sound Emission | 45 dB |
Thermal Dissipation | 812.90 BTU/h |
Maximum Operating Temperature | 104°F (40°C) |
USB | Yes |
Serial Port | Yes |
Total Number of Expansion Slots | 1 |
Hot Swappable | Yes |
Backup/Run Time (Half Load) | 14 Minute |
Backup/Run Time (Full Load) | 4.50 Minute |
Typical Battery Recharge Time | 6 Hour |
Package Contents |
|
Software Included | Poweralert Software |
Certifications & Standards |
|
Country of Origin | United States |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Bypass Switch | Automatic |
Dataline Protection | RJ-45 |
RJ-11 | |
Emergency Power OFF | Yes |
Protection Type | Over Voltage |
Brownout | |
EMI / RFI | |
Under Voltage | |
Plug/Connector Type | NEMA 5-20P |
Cord Length | 10 ft |
Receptacle Type | NEMA L5-20R |
NEMA 5-15/20R | |
Receptacle Detail | 1 x NEMA L5-20R |
6 x NEMA 5-15/20R |
Weight (Approximate) | 21.50 kg |
Form Factor | Rack/Tower |
Rack Height | 2U |
Height | 3.50" (88.90 mm) |
Width | 17.50" (444.50 mm) |
Depth | 19" (482.60 mm) |
Network Management | SNMP Manageable |
Alarm | Overload |
Low Battery | |
UPS StartUp | |
UPS Fault | |
Remote Shutdown | |
Power Failure |
Product Type | Dual Conversion Online UPS |
Manufacturer Part Number | SU2200RTXL2UN |
Manufacturer Website Address | http://www.tripplite.com |
Manufacturer | Tripp Lite |
Product Model | SU2200RTXL2UN |
Product Name | SU2200RTXL2UN UPS with Pre-installed SNMPWEBCARD |
Product Line | SmartOnline |
Brand Name | Tripp Lite |
Circuit Breaker | Yes |
Input Voltage | 120 V AC |
Output Voltage | 120 V AC |
Input Current | 16 A |
Load Capacity | 2.20 kVA/1.60 kW |
Surge Energy Rating | 570 J |
Waveform Type | Sine Wave |
Pure Sine Wave |
