Tripp Lite SU3000RTXL3UN US with Pre-installed WEBCARDLX - 3U Rack/Tower - 6 Hour Recharge - 5 Minute Stand-by - 120 V AC Input - 4 x NEMA 5-15R, 4 x NEMA 5-15/20R, 1 x NEMA L5-30R
Tripp Lite SU3000RTXL3UN US with Pre-installed WEBCARDLX - 3U Rack/Tower - 6 Hour Recharge - 5 Minute Stand-by - 120 V AC Input - 4 x NEMA 5-15R, 4 x NEMA 5-15/20R, 1 x NEMA L5-30R
Tripp Lite SU3000RTXL3UN US with Pre-installed WEBCARDLX - 3U Rack/Tower - 6 Hour Recharge - 5 Minute Stand-by - 120 V AC Input - 4 x NEMA 5-15R, 4 x NEMA 5-15/20R, 1 x NEMA L5-30R

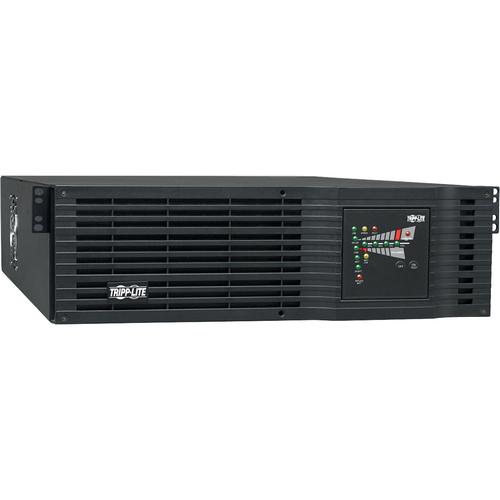

The SU3000RTXL3UN SmartOnline® 120V 3kVA 2.4kW On-Line Double-Conversion UPS provides the highest level of battery backup and AC power protection for critical server, network and telecom equipment. It converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes and zero transfer time to battery.Operating with a high 94% efficiency in optional economy mode, the SU3000RTXL2U cuts BTU heat output, power consumption and energy costs. Featuring four NEMA 5-15/20R and four 5-15R outlets in two switchable breakered load banks, as well as one non-breakered L5-30R outlet, the SU3000RTXL3UN has an internal battery that provides 14 minutes of support at half load and 5 minutes at full load. Adding optional external battery packs, such as Tripp Lite's BP72V15-2U (sold separately), provides extended runtime.
The pre-installed Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
- 3000VA / 3kVA / 2400 watt on-line double-conversion 3U rack/tower UPS
- 110/120V +/-2% output at 50/60Hz, high 98% efficiency economy mode option
- Expandable runtime, Hot-swap batteries, 26 in. / 66cm installed depth
- USB, RS232, EPO ports and PRE-INSTALLED WEBCARDLX
Status Indicators |
|
Limited Warranty | 2 Year |
Thermal Dissipation | 1112.70 BTU/h |
Maximum Operating Temperature | 104°F (40°C) |
USB | Yes |
Serial Port | Yes |
Total Number of Expansion Slots | 1 |
Hot Swappable | Yes |
Backup/Run Time (Half Load) | 14 Minute |
Backup/Run Time (Full Load) | 5 Minute |
Typical Battery Recharge Time | 6 Hour |
Package Contents |
|
Software Included | Poweralert Software |
Certifications & Standards |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Bypass Switch | Automatic |
Dataline Protection | RJ-11 |
RJ-45 | |
Emergency Power OFF | Yes |
Protection Type | Brownout |
EMI / RFI | |
Over Voltage | |
Under Voltage | |
Plug/Connector Type | NEMA L5-30P |
Cord Length | 10 ft |
Receptacle Type | NEMA L5-30R |
NEMA 5-15R | |
NEMA 5-15/20R | |
Receptacle Detail | 4 x NEMA 5-15/20R |
1 x NEMA L5-30R | |
4 x NEMA 5-15R |
Weight (Approximate) | 33.50 kg |
Form Factor | Rack/Tower |
Rack Height | 3U |
Height | 5.20" (132.08 mm) |
Width | 17.80" (452.12 mm) |
Depth | 26" (660.40 mm) |
Network Management | SNMP Manageable |
Alarm | Remote Shutdown |
UPS StartUp | |
UPS Fault | |
Power Failure | |
Overload | |
Low Battery |
Product Type | Dual Conversion Online UPS |
Manufacturer Part Number | SU3000RTXL3UN |
Manufacturer Website Address | http://www.tripplite.com |
Manufacturer | Tripp Lite |
Product Model | SU3000RTXL3UN |
Product Name | SU3000RTXL3UN US with Pre-installed WEBCARDLX |
Product Line | SmartOnline |
Brand Name | Tripp Lite |
Circuit Breaker | Yes |
Input Voltage | 120 V AC |
Output Voltage | 120 V AC |
Input Current | 24 A |
Load Capacity | 3 kVA/2.40 kW |
Surge Energy Rating | 510 J |
Waveform Type | Pure Sine Wave |
Sine Wave |
