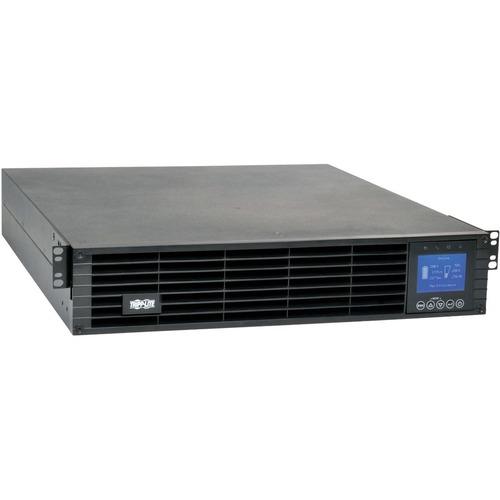

Tripp Lite SmartOnline SUINT1500LCD2UN 1500VA Rack-mountable UPS - 2U Rack-mountable - 5.80 Hour Recharge - 4.50 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 6 x IEC 60320 C13
Tripp Lite SmartOnline SUINT1500LCD2UN 1500VA Rack-mountable UPS - 2U Rack-mountable - 5.80 Hour Recharge - 4.50 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 6 x IEC 60320 C13
Tripp Lite SmartOnline SUINT1500LCD2UN 1500VA Rack-mountable UPS - 2U Rack-mountable - 5.80 Hour Recharge - 4.50 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - 6 x IEC 60320 C13
Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss
This 200/208/220/230/240V 50/60 Hz UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-2% voltage regulation in online and battery modes. Featuring a 1.35kW capacity, high 0.9 power factor, 936 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer time to battery mode in on-line double-conversion mode, the SmartOnline® SUINT1500LCD2UN double-conversion UPS provides the highest level of AC power protection and battery backup for critical network closet, computer room and data center equipment.
Set Power Strategies to Reflect Your Protection Priorities
Pick your power strategy, from precise power for sensitive systems to the highest possible electrical efficiency, while ensuring 100% uptime. Choose from five selectable strategies: Max Efficiency, Max Quality, Frequency Regulation, Frequency Conversion and Auto Adaptive, which automatically offers increased efficiency when power conditions are good and enhanced power quality when power conditions are poor.
Individually Controllable Load Banks Let You Access and Control Outlets Remotely
Four C13 outlets are split evenly into two switchable load banks, allowing you to reboot select components or shed loads remotely. In addition to those four outlets, this UPS provides two more C13 outlets in their own unswitched bank for powering critical components.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery (RBC36S) provides 12.6 minutes of support at half load (675W) and 4.5 minutes at full load (1350W), keeping protected equipment operational through power failures. For mission-critical applications demanding scalable extended runtime, the UPS supports "smart" external battery packs, such as Tripp Lite's BP36V15-2U (sold separately). Both the internal and external batteries are automatically sensed and configured during replacement to offer accurate runtime-remaining and battery age notifications during outages. The intelligent battery management system with temperature-compensated charging extends battery life.
Automatic Bypass Maintains Utility Output During Fault Conditions
Auto-bypass mode keeps connected equipment powered and operational, even during UPS fault conditions.
ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality.
Automatically Turns Back On After Power Is Restored
Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement.
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The front-panel LCD screen reports UPS operating mode, detailed UPS status and site-power information, as well as a variety of advanced UPS setup and configuration options. LEDs indicate AC input/output, battery and fault status.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure.
- Offers network-grade protection against power failures and voltage fluctuations
- Zero transfer time between on-line and battery modes for uninterrupted operation
- Optional external battery packs provide additional runtime for applications requiring it
- Included WEBCARDLX network interface allows you 24/7 remote access from anywhere
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
Status Indicators |
4 Front Panel LEDs: Front Panel LCD Display: |
Limited Warranty | 2 Year |
Maximum Operating Temperature | 104°F (40°C) |
Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
Serial Port | Yes |
EPO Port | Yes |
USB (HID Compliant) Port | Yes |
Network Management | SNMP/HTTP Remote Monitoring |
Alarm | Power Failure |
Overload | |
Low Battery | |
Fault |
Package Contents |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Energy Star | Yes |
Application/Usage | Data Center |
Mission Critical Equipment | |
Network Closet | |
Server | |
Computer Room | |
Dataline Protection | RJ-11 |
RJ-45 | |
Overload Protection | Yes |
Plug/Connector Type | IEC 60320 C14 |
Phase | Single Phase |
Receptacle Type | IEC 60320 C13 |
EMI/RFI Noise Filter | Yes |
Energy Saving | Green Energy-Saving |
Transfer Time | 0 ns |
Receptacle Detail | 6 x IEC 60320 C13 |
Hot Swappable | Yes |
Backup/Run Time (Half Load) | 12.60 Minute |
Backup/Run Time (Full Load) | 4.50 Minute |
Replaceable Battery | Yes |
DC System Voltage | 36 V DC |
Typical Battery Recharge Time | 5.80 Hour |
Weight (Approximate) | 20.36 kg |
Form Factor | Rack-mountable |
Rack Height | 2U |
Height | 3.46" (88 mm) |
Width | 17.24" (438 mm) |
Depth | 19.53" (496 mm) |
Product Type | Dual Conversion Online UPS |
Manufacturer Part Number | SUINT1500LCD2UN |
Manufacturer Website Address | http://www.tripplite.com |
Manufacturer | Tripp Lite |
Product Model | SUINT1500LCD2UN |
Product Name | SmartOnline SUINT1500LCD2UN 1500VA Rack-mountable UPS |
Product Line | SmartOnline |
Brand Name | Tripp Lite |
Input Voltage | 230 V AC |
Output Voltage | 240 V AC |
200 V AC | |
220 V AC | |
208 V AC | |
230 V AC | |
Load Capacity | 1.50 kVA/1.35 kW |
Surge Energy Rating | 936 J |
Waveform Type | Pure Sine Wave |
Output Frequency | 60 Hz |
Input Frequency | 50 Hz |
