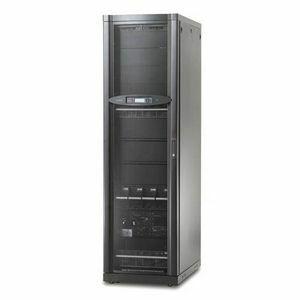

Schneider Electric APC Symmetra PX 10kW Scalable UPS - 10000VA - 3.7 Minute Full Load - 1, 1 x Screw Terminal

Ahorrar 19%
Schneider ElectricSKU: PL5-SY10K40F-94441U-EN
filler

Precio:
Precio de venta$32,183.99 Precio habitual$39,842.46

Descripción

APC Symmetra PX 10kW Scalable UPS - 10000VA - 3.7 Minute Full Load - 1, 1 x Screw Terminal

Symmetra PX 10000VA- Scalable, redundant power protection for centralized IT equipment in medium to large data centers.

Advances in Large Corporation computing, storage technologies, an increasing power demand, requires a change in Large Corporation power protection technology. Symmetra PX 10000VA, three phase input/ three phase output (3:3), is a single unit, composed of modular components. This modular architecture provides the foundation of building and scaling near-continuous availability power systems with a flexible range of power capacity. The Symmetra PX 10000VA packages the high availability requirements of easy power and runtime scalability into a very small footprint. Combined with the complete line of APC datacenter protection software and accessories it provides the four most critical elements of total datacenter protection.
Limited Warranty 1 Year
Network (RJ-45) Yes
Total Number of Expansion Slots 1
Sound Emission 64 dB(A)
Thermal Dissipation 11611 BTU/h
Maximum Operating Temperature 104°F (40°C)
Additional Information
    • Audible Alarms
    • Automatic Self Test
    • Battery modules connected in parallel
    • Cold-start
    • Compact Design
    • Early-warning Problem Notification
    • Easy Maintenance
    • Event logging
    • Front-access servicing
    • Full-rated Power with kVA equaling kW
    • Galvanic isolation
    • Generator Compatible
    • Input Power Factor Correction
    • LCD AlphaNumeric Display
    • Load Meter
    • Menu-driven Operating Instructions
    • Modular Fault-tolerant Design
    • Modular-level Repair
    • Multiple System Shutdown
    • N+1 Redundancy
    • Out-of-Band Management
    • Overload Indicator
    • Pager notification
    • Programmable power event response
    • Rated for Power-Factor Corrected Loads
    • Revolutionary Modular Design for built-In Fault-Tolerance
    • Scalable Power Capacity
    • Scalable Run Time
    • Smallest footprint
    • Temperature Compensated Battery Charging
    • User Replaceable batteries
    • Wide input voltage range
Package Contents
  • User Manual
  • Web/SNMP Management Card
Certifications & Standards
    • cUL Listed
    • EN 50091-1
    • EN 50091-2
    • FCC Part 15 Class A
    • ISO 14001
    • ISO 9001
    • UL 1778
    • UL 60950
Battery Management Intelligent Battery Management
Network Management SNMP Manageable
Alarm Low Battery
On Battery
Input Voltage 110 V AC
Output Voltage 208 V AC
Load Capacity 10 kVA
Power Consumption 10000 W
Waveform Type Sine Wave
Bypass Switch Static
Emergency Power OFF Yes
Plug/Connector Type Hardwired
Receptacle Type Screw Terminal
Receptacle Detail 1 x Screw Terminal
Battery Chemistry Sealed Lead Acid (SLA)
Hot Swappable Yes
Backup/Run Time (Half Load) 14.10 Minute
Backup/Run Time (Full Load) 3.70 Minute
Battery Characteristics Maintenance-free
Typical Battery Recharge Time 3 Hour
Weight (Approximate) 405.97 kg
Color Black
Rack Height 42U
Height 82" (2082.80 mm)
Width 24" (609.60 mm)
Depth 35.50" (901.70 mm)
Product Type Dual Conversion Online UPS
Manufacturer Part Number SY10K40F
Manufacturer Website Address http://www.schneider-electric.com
Manufacturer Schneider Electric SA
Product Name Symmetra PX 10kW Scalable UPS
Product Line Symmetra
Product Series PX
Brand Name APC by Schneider Electric
