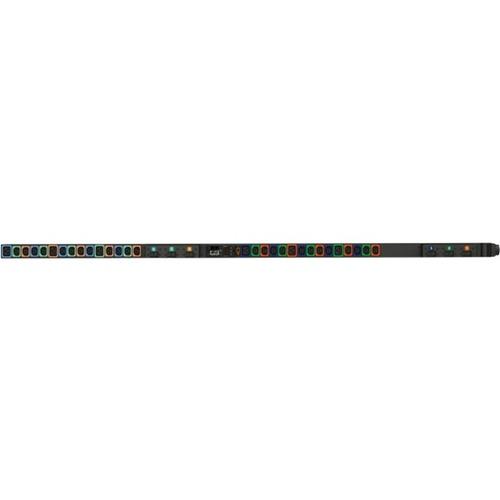

Vertiv Geist UPDU UI30007L rPDU - Monitored - Universal Input - 24 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19 - 230 V AC, 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
Vertiv Geist UPDU UI30007L rPDU - Monitored - Universal Input - 24 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19 - 230 V AC, 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
Geist UPDU UI30007L rPDU - Monitored - Universal Input - 24 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19 - 230 V AC, 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable - TAA Compliant
The Vertiv Geist UI30007L Universal Power Distribution Unit (Vertiv Geist UPDU) is a versatile rack power distribution unit (rPDU) with a universal input and a max power capacity of 22kW. This universal rPDU enables fast and easy installation since it supports common AC power configurations ranging from 16A-63A and 120V-415V in both single phase and three phase configurations. Just choose the right Facility Side Cable (sold separately) to define the input power configuration you need to install the Vertiv Geist UPDU in your network system. This model has 24 locking C13 and 6 locking C19 receptacles, all equipped with the Vertiv patented U-Lock to lessen accidental disconnections. The hot-swappable Interchangeable Monitoring Device (IMD) on this intelligent rack PDU not only has ports for unit-level remote power monitoring and environmental monitoring, but it also provides peace of mind that you can seamlessly update the unit's technology to adapt to your changing business needs.
- The rack PDU supports single phase or three phase power, 16A to 63A, 120V to 415V
- Remotely monitor and manage the smart power strip through a serial or Internet connection
- Worry less about accidental disconnections with the U-Locks on the 24 C13 and 6 C19 receptacles
- Rest assured your unit meets global compliance tests including - TAA Compliance, RoHS, China RoHS, UL, CE, and RCM
- Receive an extra two years on top of the three-year warranty when you register the Vertiv Geist UPDU within 120 days of purchase
Network (RJ-45) | Yes |
Limited Warranty | 3 Year |
Management |
|
Remote Outlet Switching | No |
Input Voltage | 230 V AC |
415 V AC | |
Input Current | 63 A |
Input Voltage Range | 230 V AC - 415 V AC |
Power Rating (Watt) | 22 kW |
Protection Type | Overcurrent Protection |
Double Pole | |
Plug/Connector Type | Universal Input |
Phase | Three Phase |
Receptacle Type | U-Lock IEC 60320 C13 |
U-Lock IEC 60320 C19 | |
PDU Type | Monitored |
Locking Receptacles | IEC 60320 C19 |
IEC 60320 C13 | |
Receptacle Detail | 24 x U-Lock IEC 60320 C13 |
6 x U-Lock IEC 60320 C19 | |
Plug/Connector Detail | 1 x Universal Input |
Country of Origin | United States |
Environmentally Friendly | Yes |
Environmental Certification | China RoHS |
RoHS | |
TAA Compliant | Yes |
Energy Star | No |
Length | 70" (1778 mm) |
Mount Type | Rack-mountable |
Rack Height | 0U |
Width | 2" (50.80 mm) |
Depth | 2.25" (57.15 mm) |
Mounting Orientation | Vertical |
Product Type | PDU |
Manufacturer Part Number | UI30007L |
Manufacturer Website Address | http://www.vertiv.com/ |
Manufacturer | Vertiv |
Product Model | DU03E4W1-30PN67-2S02A9K00-S-A |
Product Name | UPDU UI30007L rPDU |
Product Series | rPDU |
Brand Name | Geist |
