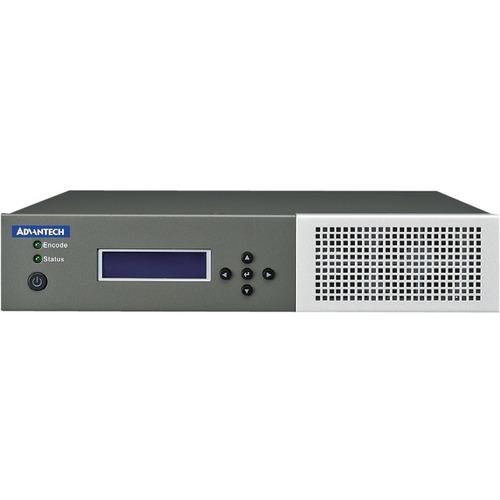

Advantech VEGA-6301E3-3EAE Video Encoder - Functions: Video Encoding, Video Streaming, Video Compression, Audio Embedding - HDMI - 3840 x 2160 - HEVC, H.265 - Network (RJ-45) - USB - 1 Pack - PC, Linux - Rack-mountable, Standalone

AdvantechSKU: PL5-VEGA-6301E3-3EAE-331WWM-EN
filler

Precio:
Precio de venta$9,787.99

Descripción

Advantech VEGA-6301E3-3EAE Video Encoder - Functions: Video Encoding, Video Streaming, Video Compression, Audio Embedding - HDMI - 3840 x 2160 - HEVC, H.265 - Network (RJ-45) - USB - 1 Pack - PC, Linux - Rack-mountable, Standalone

The VEGA-6301 application ready appliance is a small, low power video processing platform,cramming professional video acquisition and capture interfaces, optional Video over IP terminations, a real-time 4Kp60 10bit HEVC encoder, and a full capability Intel Core series processing host into a half rack-width, short depth enclosure. It allows users to capture and adapt live video at up to 4K/UHD resolution from SDI or HDMI feeds and then encode for streaming to content delivery or distribution networks by using the latest hardware HEVC compression technology. A software upgrade option can enable live Video over IP capture and playout, allowing users to support standards like SMPTE 2022-6, Sony IP Live Production System, and AIMS/VSF recommendations with the TICO mezzanine codec. Compressed video can be streamed over a redundant Gigabit Ethernet connection, or a USB connected wireless access dongle. The application development environment is the same Linux or Windows based SDK supported by the VEGA 3000 series PCI Express adapter range, allowing extra deployment scalability options.
Features
  • Compact Video Appliance with real-time HEVC 4Kp60 encoding capabilities
  • 1U high & half rack mountable / standalone design allowseasy user mounting different combinations of appliance in a small space
  • Range of UHD-ready video input formats such as quad 3G-SDI, high speed 12G-SDI, andHDMI 2.0
  • UHD-ready Video over IP connections in addition to standard video connectivity
  • HEVC Encoder supports high quality 10bit 4:2:2 modes @ 4Kp60 or 4 x 1080p60
  • Low power consumption
  • Easy to use SDKs and remote web based configuration interface
Host Interface HDMI
USB Yes
HDMI Yes
Network (RJ-45) Yes
SDI Yes
Platform Supported Linux
PC
Functions Video Encoding
Video Compression
Audio Embedding
Video Streaming
Video Formats HEVC
H.265
Maximum Resolution 3840 x 2160
Form Factor Rack-mountable
Standalone
Height 1.69" (42.80 mm)
Width 8.43" (214 mm)
Depth 11.41" (289.70 mm)
Product Type Video Encoder
Manufacturer Part Number VEGA-6301E3-3EAE
Manufacturer Website Address http://www.advantech.com
Packaged Quantity 1
Manufacturer Advantech Co., Ltd
Product Model VEGA-6301E3-3EAE
Product Name VEGA-6301E3-3EAE Video Encoder
Brand Name Advantech
