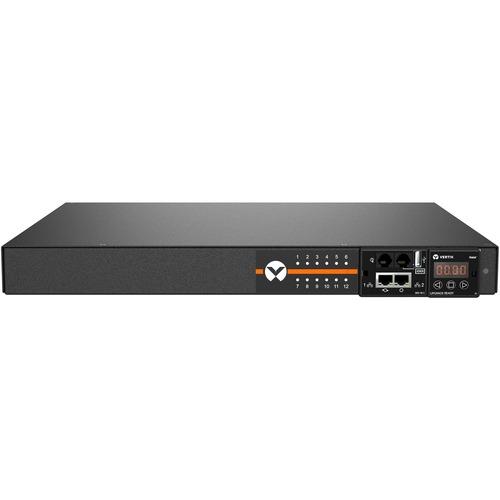

Vertiv Geist Switched Rack PDU - 1U Rack| 20A| NEMA 5-20R| 5-20P| Horizontal PDU - Vertiv Geist Upgradeable Rack Power Distribution Unit| 20A| 120V| 1U Rack Horizontal PDU| (12) NEMA 5-20R outlets| NEMA L5-20P| 1.9kW| Outlet Level Monitoring and Manageme

VertivSKU: PL5-VP52100-699WWK-EN
filler

Precio:
Precio de venta$1,591.99

Descripción

Vertiv Geist Switched Rack PDU - 1U Rack| 20A| NEMA 5-20R| 5-20P| Horizontal PDU - Vertiv Geist Upgradeable Rack Power Distribution Unit| 20A| 120V| 1U Rack Horizontal PDU| (12) NEMA 5-20R outlets| NEMA L5-20P| 1.9kW| Outlet Level Monitoring and Management| UL-Listed and TAA Compliant (VP52100)

Switched Unit Level Monitored Rack PDU VP52100 is a 20A, 120V 1U horizontal with input power monitoring and outlet level switching. It has 12 NEMA 5-20R receptacles and a NEMA L5-20P providing 1.9kW of power capacity. A Switched rPDU allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive equipment. The unit is equipped with an environmental sensor port and dual ethernet ports for IP aggregation.

Features
  • Outlet level control to turn on, turn off, or reboot individual outlets.
  • Bi-stable latching relays significantly reduce idle power draw.
  • Upgradeable and Hot-Swappable monitoring device.
  • Local and remote power monitoring with accuracy of +/- 1% (ANSI & IEC Standards)
  • VLC (Visible Light Communication)
  • Environmental monitoring with the addition of optional sensors.
  • High Temperature Grade 60°C for high temperature environments.
  • Simple and quick installation in all standard racks or cabinets with included mounting brackets.
  • TAA compliant.
Network (RJ-45) Yes
Limited Warranty 3 Year
Package Contents
  • rPDU VP52100 12-Outlets PDU
  • Mounting Brackets
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
Input Voltage 120 V AC
Output Voltage 120 V AC
Input Current 20 A
Input Voltage Range 100 V AC - 120 V AC
Power Rating (Watt) 1.90 kW
Product Type PDU
Manufacturer Part Number VP52100
Manufacturer Website Address http://www.vertiv.com/
Manufacturer Vertiv
Product Model VP52100
Product Name rPDU VP52100 12-Outlets PDU
Product Series rPDU
Brand Name Geist
Protection Type Overload Protection
Accidental Power Shutdown
Plug/Connector Type NEMA L5-20P
Phase Single Phase
Receptacle Type NEMA 5-20R
PDU Type Switched
Receptacle Detail 12 x NEMA 5-20R
Plug/Connector Detail 1 x NEMA L5-20P
Weight (Approximate) 4.54 kg
Form Factor Hot-swappable
Mount Type Cabinet-mountable
Rack-mountable
Rack Height 1U
Height 1.72" (43.69 mm)
Width 17" (431.80 mm)
Depth 12" (304.80 mm)
Mounting Orientation Horizontal
