Description
Specifications
MT-BBT-277V-230V-18.74A Buck and Boost Step-Down Transformer | Ratings |
Transformer Type: Buck/Boost Step-Down Autotransformer | NRTL Listed for United States and Canada |
Phase: Single Phase | NEMA 3R Indoor/Outdoor Enclosure |
Frequency: 50/60 Hz | Meets or Exceeds NEMA ST-20 Standards |
Input Voltage: 277 V | Buck and Boost Step-Down Transformer |
Primary Amps: 15.63 A @ 277 V | |
Primary Configuration: Two Winding | |
kVA: 4.33 | |
Output Voltage: 230 V | |
Secondary Amps: 18.74 A @ 230 V | |
Voltage Difference: 83% | |
Winding Material: Aluminum | |
Knockouts: Side and Rear | |
Primary Termination: Front Access Copper Tabs or Lead Wires | |
Secondary Termination: Front Access Copper Tabs or Lead Wires | |
Cooling: Air / Dry Type | |
Insulation: 180°C | |
Temperature Rise: 115°C | |
Sound Level: 36 dB | |
Enclosure Rating: NEMA 3R | |
Encapsulation: Silica Sand & Resin Compounds | |
Enclosure Material: Steel | |
Finish: ANSI 61 Grey Finish | |
Mounting: Wall Mount Via Mounting Tabs | |
Dimensions: 9.30"H x 5.06"W x 4.56"D | |
Weight: 18 lb |
Product Overview

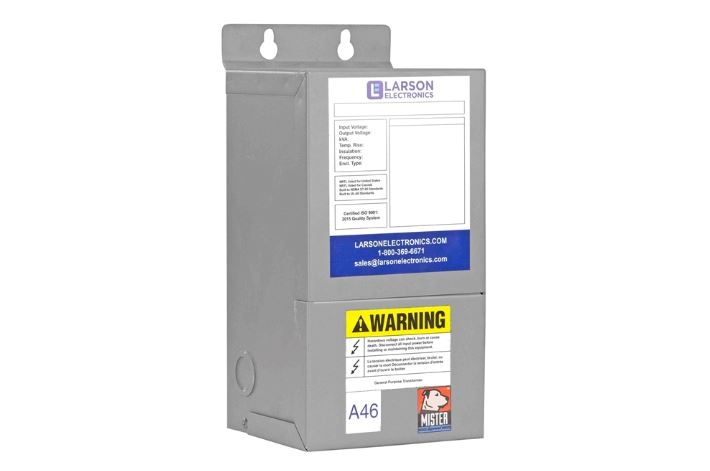

1 Phase Buck & Boost Step-Down Transformer - 277V Primary - 230V Secondary - 18.74 Amps - 50/60Hz
The MT-BBT-277V-230V-18.74A Single Phase Step-Down Buck and Boost Transformer from Larson Electronics is powerful, reliable, and designed with the environment in mind. Suitable for both indoor and outdoor applications, the MT-BBT-277V-230V-18.74A provides increased reliability, higher efficiency, protection against critical equipment failures and an extra level of protection by isolating the power source from the connected device. The lower operating costs, lower heat emissions and lower cost of ownership make this transformer ideal for a wide range of applications and businesses. Transformer Features: The MT-BBT-277V-230V-18.74A buck and boost transformer is a single phase unit with a 4.33 kVA rating and a primary voltage of 277 V using a maximum of 15.63 amps on the primary side. This step-down transformer has a secondary voltage of 230 V and provides up to 18.74 amps available on the secondary side. Featuring robust construction, this unit`s cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology. This unit boasts a low cost of ownership and is highly energy efficient. Lower heat emissions mean less cooling is needed as well. The NEMA 3R painted steel enclosure makes the unit suitable for both indoor and outdoor applications, and this step-down transformer can be wall mounted. The MT-BBT-277V-230V-18.74A features a 180°C insulation with a 115°C temperature rise. Construction: The aluminum winding in the MT-BBT-277V-230V-18.74A are formed from high quality aluminum wire help to improve performance. The close tolerances used during manufacturing also eliminates burrs which hinder performance. Each core is specially coated to prevent the ingress of moisture and are electrically balanced to minimize axial forces during short circuit situations. Buck and boost transformers are designed to maximize the performance and life of electrical equipment. The MT-BBT-277V-230V-18.74A is encapsulated in silica sand and resin, and cased in a NEMA 3R steel enclosure. NEMA 4, NEMA 4X, and NEMA 12 enclosures are available upon request. Benefits: The MT-BBT-277V-230V-18.74A buck/boost step-down transformer offers many benefits to the consumer. Buck/boost transformers pass the majority of the load voltage directly through the transformer, only transforming a small percentage of the load. Due to this technology, a smaller and quieter step-down transformer is manufacturered and uses less materials. This provides owners with significant energy savings as well as offering environmental benefits. Higher efficiency not only extends the life of the transformer, but also turn into cost savings for owners in the form of lower energy bills and decreased cost of ownership. Installation and maintenance costs are reduced due to the smaller form factor, and less overall space requiorments are decreased. In addition, these step-down transformers operate quieter than a standard autotransformer of the same capacity. Mounting: Integrated wall mounting brackets make installation fast and easy. Because of the smaller overall footprint, heavy machinery is rarely needed for mounting and installation. Installation: Installation is simple. Connect the primary leads and secondary leads to the step-down transformer per the provided wiring diagram. Knockout hubs on either side and the bottom of the transformer allow for easy line-in and line-out wiring. The front access cover provides convenient. Applications: Air conditioners, lighting systems, heating elements, motor applications and other applications that that require the ability to power loads that differ from the available line voltage. Limitations: While there are many benefits to a buck/boost transformer, there are some limitations to consider. This transformer will only transformer voltage, it will not convert phases, it will not create even legs between line 1 and line 2 (L1 and L2 WILL be UNEVEN), has no circuit isolation, and does not create a neutral for applications where a neutral is not already present. If any of these limitations apply to you, you will need a standard transformer. Please see below link for our standard line of industrial transformers or our line of phase converters. Note on Voltage Generation: Buck/boost transformers, like this unit, do NOT generate even legs of voltage on the secondary side. The generate voltage legs will always be unbalanced. This is acceptable for some situations, but other situations call for even legs on the secondary side. This simply cannot be achieved with a buck/boost transformer. Note on Phases: This buck/boost transformer is a single phase step-down transformer. For three phase transformers, click on the following links: |
