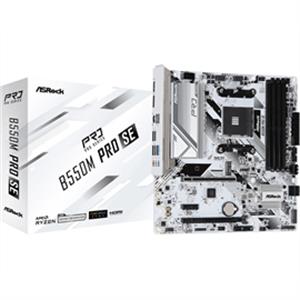

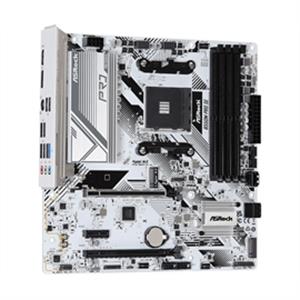

ASRock MB PRO565 B550M Pro SE AMD AM4 Max.128GB DDR4 Micro ATX
ASRock MB PRO565 B550M Pro SE AMD AM4 Max.128GB DDR4 Micro ATX
Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
Supports DDR4 4733+ (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),
1 M.2 (PCIe Gen3 x2 & SATA3)
6 USB 3.2 Gen1 (4 Rear, 2 Front)
6 USB 2.0 (2 Rear, 4 Front)
Dragon 2.5G LAN
Supports Pre-Installed I/O Shield
* Not compatible with AMD Athlon™ Processors.
Unique Feature Rock-Solid Durability - 8 Power Phase - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN |
CPU - Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors Please refer to CPU support list for details. |
Chipset - AMD PRO565 |
Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC and non-ECC, un-buffered memory - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC and non-ECC, un-buffered memory - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC and non-ECC, un-buffered memory - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC and non-ECC, un-buffered memory - AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory - Max. capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) memory modules For Ryzen Series APUs (Picasso, Cezanne and Renoir), ECC is only supported with PRO CPUs. |
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support |
Graphics Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU (Actual support may vary by CPU) - 1 x HDMI 2.1, supports HDR, HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4, supports HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 5K 120Hz Picasso supports HDCP 2.2 with HDMI 2.0 Port |
Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
LAN - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
Slots AMD Ryzen series CPUs (Vermeer and Matisse) - 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode PCIE3: Gen3 x4 mode) AMD Ryzen series APUs (Cezanne and Renoir) - 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode PCIE3: Gen3 x4 mode) AMD Ryzen series APUs (Picasso) - 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode PCIE3: Gen3 x4 mode) - Supports AMD CrossFire - 1 x PCIe 3.0 x1 Slot (PCIE2: x1 mode) Supports NVMe SSD as boot disks |
Storage CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso) Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s PCIe Gen3x2 (16 Gb/s) modes - 4 x SATA3 6.0 Gb/s Connectors Supports NVMe SSD as boot disks NVMe SSD is not supported with AMD Athlon 3000G Processors |
RAID - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
USB - 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) All USB ports support ESD Protection |
Connector - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers - 2 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) Support in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip CPU_FAN1 supports the fan power up to 1A (12W). CHA_FAN1-3/WP support the fan power up to 2A (24W). CHA_FAN1-3/WP can auto detect if 3-pin or 4-pin fan is in use. |

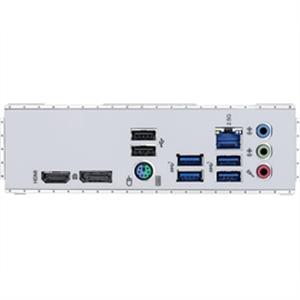

Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port with LED - HD Audio Jacks: Line in / Front Speaker / Microphone |
Software and UEFI Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock Full HD UEFI - ASRock Instant Flash These utilities can be downloaded from ASRock Live Update and APP Shop. |
Accessories - 1 x User Manual - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets |
Form Factor - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
OS - Microsoft Windows 10 64-bit / 11 64-bit |
Certifications - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
Item Dimension (L"xW"xH") 11 x 11 x 3 Weight 3.05 lbs Warranty Information 1 Years |
