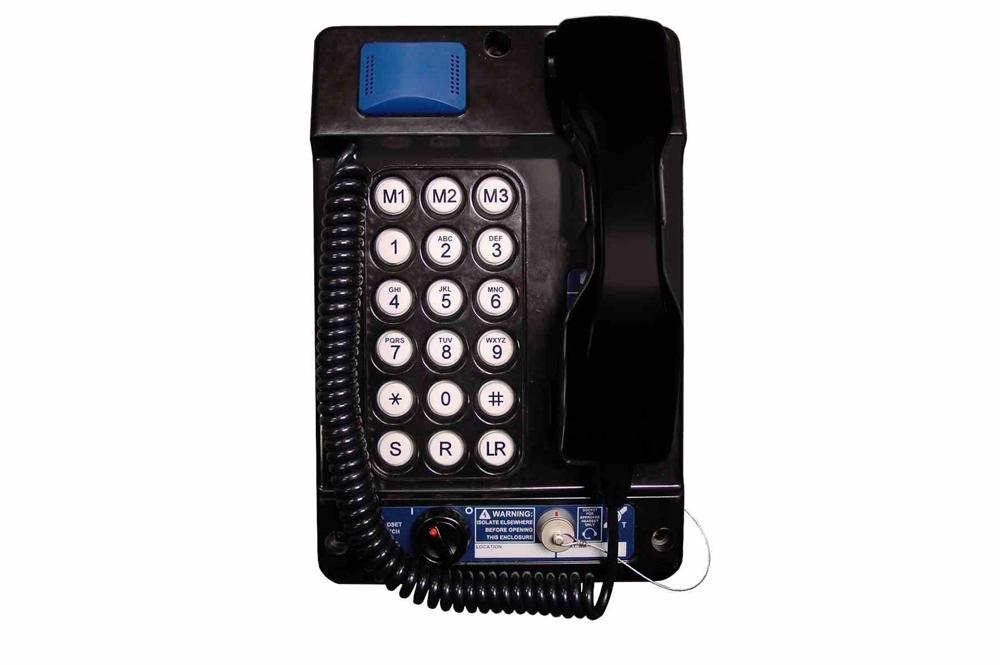

Explosion Proof Phone w/ Dial Pad - 18 Buttons, Analog - Stainless Steel Cord - Black/ATEX Rated
Explosion Proof Phone w/ Dial Pad - 18 Buttons, Analog - Stainless Steel Cord - Black/ATEX Rated
| ATEX-EPPH-NM-ALG-18K-212 ATEX Rated Telephone | Ratings/Approvals |
| Listing: NRTL Listed for International; ATEX Rated | Ex II 2 G/Ex II 2GD ATEX Certified |
| Phone Type: Standard Analog | IP66 |
| Dimensions: 11.5" x 7.5" x 5.5" | Volume Control |
| Weight: 7 lbs | Noise Canceling |
| Voltage: - | Weatherproof |
| Power: From Telephone Line | Â |
| Dialing: LD (Pulse) or DTMF (Tone) - Switchable | Â |
| Ringer Level: Shrill Warble Tone - >90 dBA @ 3.2 feet | Â |
| Integral Ring Detector: Contact Closure Following the Ringing Cadence, Rated at 230V AC, 3A rms | Â |
| Keypad: 18 Buttons - Standard Numerical Keypad w/ (3) Direct Dial Buttons - M1, M2, M3; S (Store), R (Recall) and LR (Last Number Redial) | Â |
| Time Out: Fixed Call Maximum Time Limit to 7 Minutes from Lifting Handset - User Selectable ON or OFF | Â |
| Recall: Internally Switchable from Earth Loop Recall (600ms Pulse) and Timed Break Recall 100ms, 250ms or 600ms | Â |
| Hookswitch: Electronic/magnetic - No Visible Moving Parts | Â |
| Isolated Hookswitch Sensor: Additional Contact Rated at 230V AC, 150mA rms | |
| Operating Temperature: -20°C to +60°C |  |
| Relative Humidity: Up to 95% (Non-condensing) | Â |
| Surface Resistance: <10°Î© |  |
| Materials: Carbon Loaded Glass-filled Polyester (Phone), Polycarbonate (Handset) | Â |
| Handset Cord: Curly | |
| Mounting: Wall Mount | |
| Wiring/Connection: 2-wire Telephone Line, FXS Ports, Analog PABX Lines, PTSN | |
| Parallel Terminal Block: Duplicated Line Terminals | |
| Wiring Hub: (2) M20 | |
| Color: Black |
| The ATEX-EPPH-NM-ALG-18K-212 Explosion Proof Analog Telephone from Larson Electronics is a heavy-duty communication device that is suitable for ATEX rated combustible environments. The unit supports an 18-key dialpad, volume control and several user selectable features. A durable handset cord and an IP66 rating ensures comprehensive reliability during emergency situations. The ATEX-EPPH-NM-ALG-18K-212 is designed to provide safe, reliable communication in ATEX rated environments. This line-powered unit features an 18-key dialpad. Available buttons on the phone include the following: standard numerical with 3 direct dial buttons (M1, M2 and M3), S (store), R (recall) and LR (last number redial). Operators may choose between LD (pulse) or DTMF (tone) dialing, as well as a fixed call maximum time limit of 7 minutes from lifting the handset. A ringer level of 90 dBA (shrill warble tone) can be heard from a distance of 3.2 feet. The analog telephone features an integral ring detector and isolated hookswitch sensor. Durability: This unit is housed in a non-metallic, carbon loaded glass-filled polyester enclosure, with a polycarbonate handset. A chemical and vandal resistant keypad helps deter wear and tear during long-term use. The hookswitch is electronic/magnetic with no visible moving parts. This IP66 rated device can be used in ATEX rated work sites. The weatherproof telephone is ideal for use in hazardous locations with a temperature range of -20°C to +60°C and up to 95% non-condensing relative humidity. Connection: Compatible connections include: 2-wire telephone line, FXS Ports, analog PABX lines and PTSN. This weatherproof telephone is powered from the telephone line. Duplicated line terminals allows connection to a parallel device without an additional junction box. Since this telephone is line powered, it will continue working even if the main power source faults or is disconnected (no internal battery required). Hubs: Operators are provided access to two, M20 hubs at the bottom of the unit for completing cable and wiring connections. Mounting: The ATEX-EPPH-NM-ALG-18K-212 telephone is designed to be wall mounted via four mounting holes found in the back of the unit. Suggested Applications: Hazardous locations, industrial facilities, outdoor communications, construction sites, public areas, plant entrances, parking garages, airports and more.  |
