Solar Flameproof LED Light - C1D2 Panel, 15W Lamp, Sensor/Timer - 20' Cord - ATEX/IECEx Rated
Solar Flameproof LED Light - C1D2 Panel, 15W Lamp, Sensor/Timer - 20' Cord - ATEX/IECEx Rated
| ATEX-EPSLED-80-AVL-SOL-20C-C1D2-20C-AT-DNS Flameproof Solar Powered LED Lamp | Ratings/Approvals |
| Solar Panel Specs | LED Light Ratings |
| Solar Panel Dimensions: 11-3/8"L x 15-3/4"D | Zones 1/2 and 21/22 |
| Watts: - | Ex tb ⅢC T80℃ Db |
| Voltage: 12V | Ex Ⅱ 2 GD Ex de Ⅱ C T6 Gb |
| Sensor Type: Explosion Proof Day/Night | IP66 Waterproof |
| Timer Settings: (16) Programmable On/Off Week or Day | T6 Temperature Rating |
| Timer Range: 1 Minute to 168 Hours | |
| Mounting: Surface | Enclosure Ratings |
| Battery: (4) 18aH Sealed Lead Acid Batteries | Class I, Zones 1&2 Groups IIA,IIB,IIC |
| Runtime: - | Ex e IIC Gb, Ex i IIC Gb |
| Charging Time: 5 Hours | Ex tb IIIC Db IP66 |
| Ex tb / Zone 21&22 AEx tb IIIC | |
| LED Light Specs | T80C /T100C/T130C Db IP66 |
| Listing: NRTL Listed for European Union and International - ATEX/IECEx Rated | Type 3, 4 & 4X |
| Dimensions (w/ Mounting Bracket): 13.62" x 9.84" (346mm x 250mm) | |
| Weight: 18.95 lbs (8.6 kgs) | Solar Panel Ratings |
| Voltage: 12V | Class I, Division 2 |
| Total Watts: 15W | |
| Luminous Intensity: > 2,000 cd +/- 25% | |
| Luminous Efficacy: - | |
| Lamp Life: 50,000+ Hours | |
| LED Color: Red, Green, Blue, Amber or White | |
| Color Rendering Index: - | |
| Lamp Type: - | |
| Lamp Base: - | |
| Replacement Lamp: - | |
| Beam Angle: 360° | |
| Lighting Configuration: Flood Pattern | |
| Power Efficiency: - | |
| Power Factor: - | |
| Ambient Operating Temp Range: -40° C to +55°C | |
| Operating Temp Rating: T6 | |
| Housing Material: Die-cast Aluminum Alloy | |
| Housing Finish: Epoxy Resin Powder | |
| Lens Material: Borosilicate Glass | |
| Hardware Material: Stainless Steel | |
| Mounting: Surface - Mounting Bracket w/ (2) Mounting Holes | |
| Wiring: 20` 10/2 SOOW Cord |

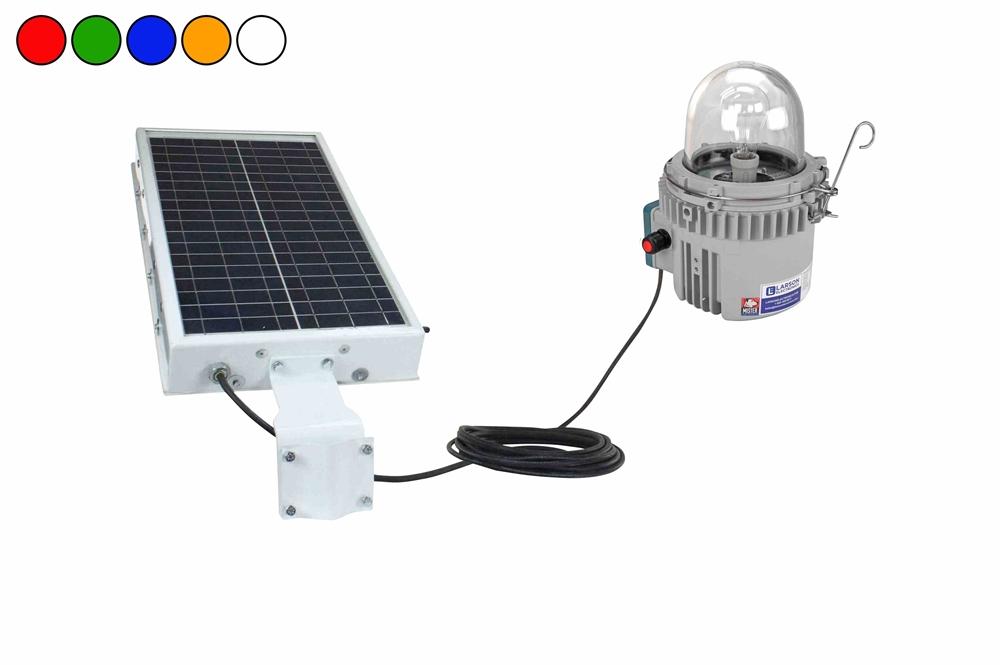

| Made in Texas The ATEX-EPSLED-80-AVL-SOL-20C-C1D2-20C-AT-DNS Solar Flameproof LED Light from Larson Electronics is a reliable lighting solution for remote areas and standalone applications where connection to external power is either impractical or unavailable. This 15-watt red lamp offers 360 degrees of illumination and operates on 12V DC. Charged by a Class I, Division 2 solar panel, four 12V AC 18aH sealed lead acid batteries provide constant, reliable power to the LED light. This unit comes with an explosion proof day/night sensor and a programmable timer for automated operation. The ATEX-EPSLED-80-AVL-SOL-20C-C1D2-20C-AT-DNS is a sustainable solar LED lighting solution for cranes, aviation operations, helipads, offshore/onshore rigs, hazardous locations and remote sites. This ATEX/IECEx rated 15-watt lamp operates on 12V DC and features a steady burn configuration. Charged by the Class I, Division 2 rated solar panel, four 12V AC 18aH sealed lead acid batteries provide constant, reliable power. The batteries, Class I, Division 2 charge controller and battery disconnect are contained within a NEMA 4X remote enclosure and must be installed within the proper environment. A 20` photovollic cable between the enclosure and light fixture allows for easy mounting of the panel and control box. The control box is equipped with an explosion proof day/night sensor, which is programmed to activate the LED light in the evening and shut it off during the day. During the day, solar panels are at peak usage, delivering power to the batteries. Charging time for the battery bank is 5 hours when exposed to direct sunlight. As with all solar powered equipment, charging time is affected by the amount of available ambient light. Indirect sunlight and low ambient light levels, such as on cloudy days, will extend the charge time. LED Light: A durable red LED L810 aviation light provides warning and illuminative safety in hazardous locations and combustible sites. Equipped with a corrosion-resistant housing, this unit operates on 12V. The 15-watt light features an expected lifespan of 50,000+ hours and offers > 2,000 cd +/- 25% luminous intensity. A 360-degree beam angle ensures high visibility during use. This red LED luminary is constructed of die-cast aluminum alloy with an epoxy resin powder finish. Protected by a borosilicate toughened glass lens, the unit carries T6 and IP66 waterproof ratings. This LED L810 aviation light is ATEX/IECEx rated for Zones 1, 2, 21 and 22. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. Solid state LED lighting is also safer for the environment as LEDs are 100% recyclable. And recycling simultaneously reduces operating costs by eliminating the need for the expensive special disposal services required with traditional gas burning and arc type lamps. Timer: This LED light contains a programmable timer, which comes with 16 on/off week or day settings and a range of 1 minute to 168 hours. Key buttons on the unit includes: clock, timer, H+, M+, manual override and reset. A keyboard locking feature prevents tampering by locking the unit after 30 seconds of no activity. An accessible LCD screen allows operators to make quick adjustments to settings and configurations on the timer. This component is powered by a rechargeable battery, with an average standby time of 60 days. Mounting: The solar LED light is compatible with surface mounting installations. An included mounting bracket with two openings can be used to secure the light on flat surfaces. NOTE: Larson Electronics has further upgraded the options available with this light. We expect the light to be mounted separately from the panel. This means the solar panel can be mounted in direct sunlight (not in the hazardous area) while the light is mounted in a hazardous area workspace. Standard installation for explosion proof lighting, including threaded rigid pipe to the LED light fixture and appropriate seal-offs, etc. are required. Suggested Applications: Aviation warning, runway lighting, helideck warning, helipads, aircraft notification, offshore/onshore, paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, gas processing plants, chemical manufacturing, waste treatment plants, remote locations and more. |
