Explosion Proof Motion Sensor - 20' to 25' Mounting Height - 15' x 15' Area Coverage - Timer - IEC Ex / ATEX - Low Voltage

Explosion Proof Motion Sensor - 20' to 25' Mounting Height - 15' x 15' Area Coverage - Timer - IEC Ex / ATEX - Low Voltage

$5,672.00 CAD
$5,672.00 CAD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Specifications / Additional Information
ATEX-EXP-MS-N4X-AT-LV IEC Ex / ATEX Adjustable Motion Sensor Ratings / Features
Listing: Approved for Europe and International Use and IECEx/ATEX Rated Approved for Europe and International Use
Dimensions: 7"-W x 5"-H x 9"-D IEC Ex and ATEX Certified
Detection: Motion Ex II 2GB Ex db IIC GB IP66
Detection Coverage: 15' x 15' (Mounted @ 20-25') Ex II 2GB Ex tb IIC Db IP66
Tilt Angles: -90° to +30° - Elevation Ta = -20°C to +60°C
Reach: 6.5' to 32' - Adjustable NRTL Listed to IEC 60079
System Voltage: 12 V or 24 V AC/DC NRTL Listed to EN 60079
Maximum Amperage: 5A IECEx UL 14.0071U
No Load Current: 1W, 0.09 A @ 12 V, 0.045 A @ 24 V DEMKO 01 ATEX 15742U
Output Hold Time: 0.5 Secs to 15 Mins (Adjustable)
Mains Frequency: 50/60 Hz Special Orders - Requirements
Ambient Temperature Range: -22°F to +140°F
Radiated Frequency: 5.8 GHz
Operation: Normally Opened or Normally Closed
Wiring: Flying Leads
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

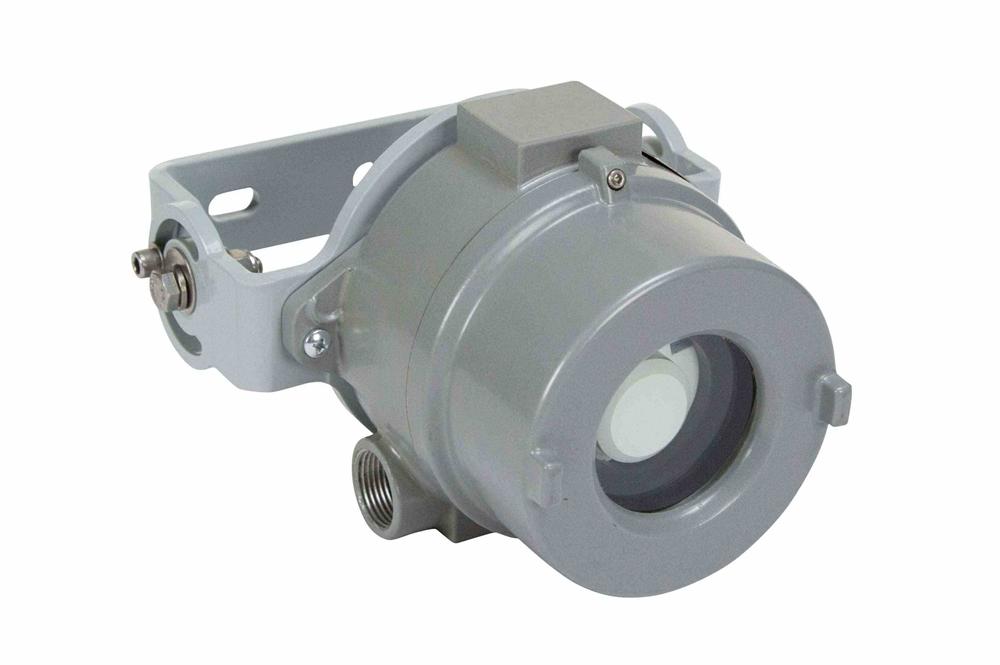

The ATEX-EXP-MS-N4X-AT-LV from Larson Electronics is an IEC Ex / ATEX Motion Sensor that is approved for Europe and International use and provides the ability to power lights or other equipment based on motion. This IEC Ex / ATEX rated motion sensor features adjustable sensitivity and time delay after motion. Designed for mounting at a height ranging between 20-25 feet, the ATEX-EXP-MS-N4X-AT-LV operates on 12 V or 24 V AC/DC current. This IEC Ex / ATEX motion sensor is ideal for operators seeking a high quality motion sensor rated for use in hazardous areas designated IEC Ex / ATEX. This IEC Ex / ATEX motion detector provides up to 15' by 15' coverage when mounted at 20'-25'. The entire unit is constructed of copper free non-sparking aluminum construction with a glass window for motion detection. This unit is easily wall mounted via integral mounting bracket, which can be adjusted -90° to +30° vertically after installation. The IEC Ex / ATEX rated housing provides two 1/2" or 3/4" hub openings located on either side of the housing for running electrical conductors in a feed through configuration. A bushing seal at each conductor opening prevents damage to wiring insulation. This unit leverages cutting-edge microwave sensors to detect motion. When in use, the device sends out discreet waves that are reflected back from nearby walls and objects (not heat or light). Microwave sensors are not affected by line of sight, resulting in wider and more accurate coverage of the target area. By comparison, traditional infrared sensors can only detect heat and light (factors used to identify movement) within the unit's field of view. Microwave sensors also provide stable performance in unpredictable climates and can penetrate glass, plastic and other non-metallic objects.
EXP-MS-N4X-AT in operation. to view our Flex Couplers available for purchase.
Click Images to Enlarge
Reach Setting: For best results, it is recommended to adjust the motion sensitivity of the unit by configuring the reach setting. Reach is the term used to describe the radius of the circular detection zone produced on the ground. After mounting the sensor at a height of 20-25 feet, operators can adjust each control to select distance sensitivity. This detection distance is measured using a person who is between 5.2 feet and 5.5 feet tall with an average build, moving at a speed of 1.0-1.5m/sec. If any of these variables are changed, the detection distance will also change. The ATEX-EXP-MS-N4X-AT-LV operates like a standard on/off light switch. The circuit is normally open when no motion is present. Once motion is detected, the internal switch changes to a closed circuit, allowing voltage to pass through the sensor and power the device(s) at the other end. This unit is designed to operate on low voltage 12 V or 24 V AC/DC electrical circuits. For a model that operates on 120-277 V high voltage electrical systems, Larson Electronics offers the version. This motion sensor is suitable for use in environments where combustible dusts and particulates may be present.
Motion Detected Through a Wall
The ATEX-EXP-MS-N4X-AT-LV has 1/2" or 3/4" NPT tapped conduit openings on either of the unit in feed through versions while dead end versions have a single conduit hub, providing easy and secure connection to main power line supplies. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Lighting, Wet areas or Locations Where Combustible Dust is Present.
