20W Medium Intensity Obstacle LED Light - 220V AC, Flashing - Aluminum - Type A - FAA compliant
20W Medium Intensity Obstacle LED Light - 220V AC, Flashing - Aluminum - Type A - FAA compliant
| AVL-L865-CPR Medium Intensity Obstruction Light | Ratings |
| Lamp Type: Type A LED Obstruction Light | FAA Compliant |
| Dimensions: 8.7" x 6.77" | ICAO: Annex 14 |
| Weight: 4.62 lbs | CAAC: MH/T 6012 |
| Watts: 20W | FAA: AC150/5345-43G |
| Voltage: 176V-264V AC (220V) 50/60 Hz | IP66 |
| Effective Light Intensity (cd): 20,000 ± 25% (w/ >50 cd/m2 Background Darkness), 2,000 ± 25% (w/ <50 cd/m2 Background Darkness) | Constant Current Output |
| LED Life Expectancy: 50,000 hours | Anti-surge/Lightning Protection |
| LED Light Color: White | |
| Flash Mode: Synchronized Flash | |
| Flash Frequency: 20-60 per Minute (Adjustable) |  |
| Horizontal Azimuth Angle: 360° |  |
| Vertical Angle: 3°-7° |  |
| Light Control Environment: 50-500 cd/m2 |  |
| Ambient Operating Temp: -40°C to +55°C | |
| Environment Humidity: 0 - 95% | |
| Wind Resistance: 60 m/s | |
| Materials: Aluminum, Polycarbonate, 304 SS | |
| Mount: Surface/Wall via Base Plate | |
| Housing Color: Yellow |

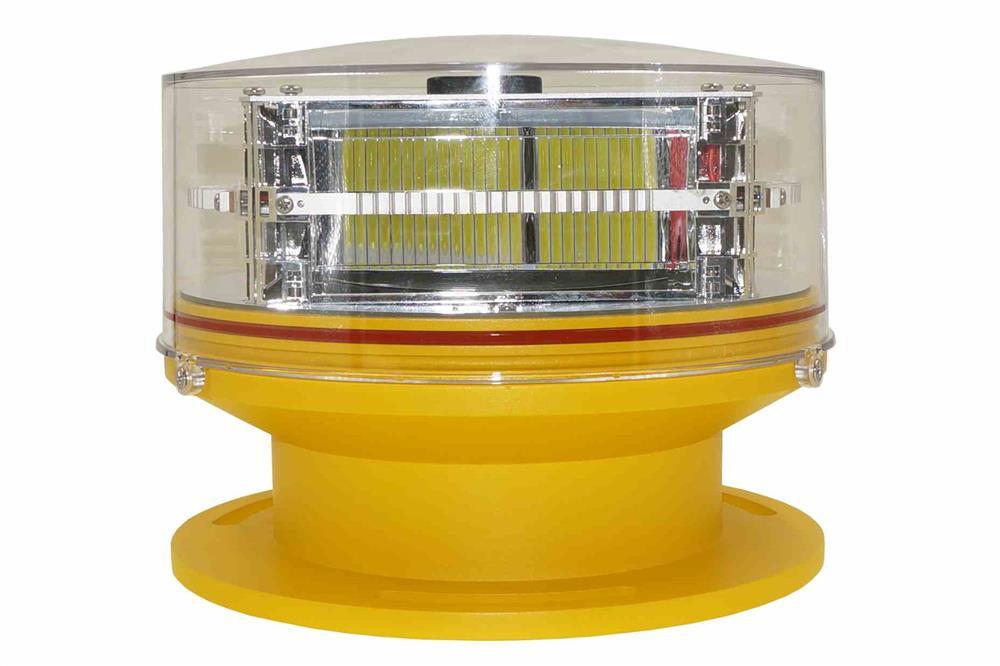

| The Larson Electronics AVL-L865-CPR is a Type A Medium Intensity Obstacle LED Light for the aviation sector and marking tall structures, such as buildings, cranes and drilling platforms. This FAA compliant unit offers white light output at an adjustable flashing rate of 20-60 per minute. The IP66-rated LED lamp offers protection from electrical surges and lightning. Constructed of aluminum and polycarbonate, the LED obstruction light comes with a lightning rod and a circular base plate for mounting on flat surfaces and walls. The AVL-L865-CPR is a medium-intensity LED obstruction light for airports and aviation-related operations. This 20-watt flashing unit operates on 176V-264V (220V) 50/60 Hz. During use, the LED lamp emits a white beam with an adjustable flash frequency of 20-60 per minute. Robust optics ensure minimal light spillage and efficient light projection. Suitable for marking structures and notifying aircrafts in the surrounding environment, the LED light is wind resistant at 60 m/s and features a lightning rod at the top of the lamp. For additional controls, the unit can be connected to light control systems, GPS synchronous controller systems, automatic control switches and control boxes. The LED obstruction light is constructed of aluminum, polycarbonate and 304 stainless steel and features a lightweight design. Equipped with anti-surge and lightning protection, this unit offers constant current output for increased reliability and smooth operation. The IP66-rated and corrosion resistant LED lamp is designed to operate in environments with ambient temperatures ranging between -40°C to +55°C. This FAA Compliant unit complies with the following standards: ICAO: Annex 14, FAA: AC150/5345-43G and CAAC: MH/T 6012. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Mounting: This medium intensity LED obstruction light is secured on a circular base plate for mounting on flat surfaces and walls. Three slots on the plate can be used to mount the LED light during installation. Applications: Aviation, obstruction lighting, tall buildings, cranes, lighthouses, drilling platforms, bridges airports, military, airfield clearance zones, visual aircraft notification, commercial flying spaces, pilot safety, aviation safety and more. |
