Larson Bar Clamp Mount for Permanent or Magnetic Mounting of Lights and Devices - 2.75" - 3.5" Diameter
Larson Bar Clamp Mount for Permanent or Magnetic Mounting of Lights and Devices - 2.75" - 3.5" Diameter

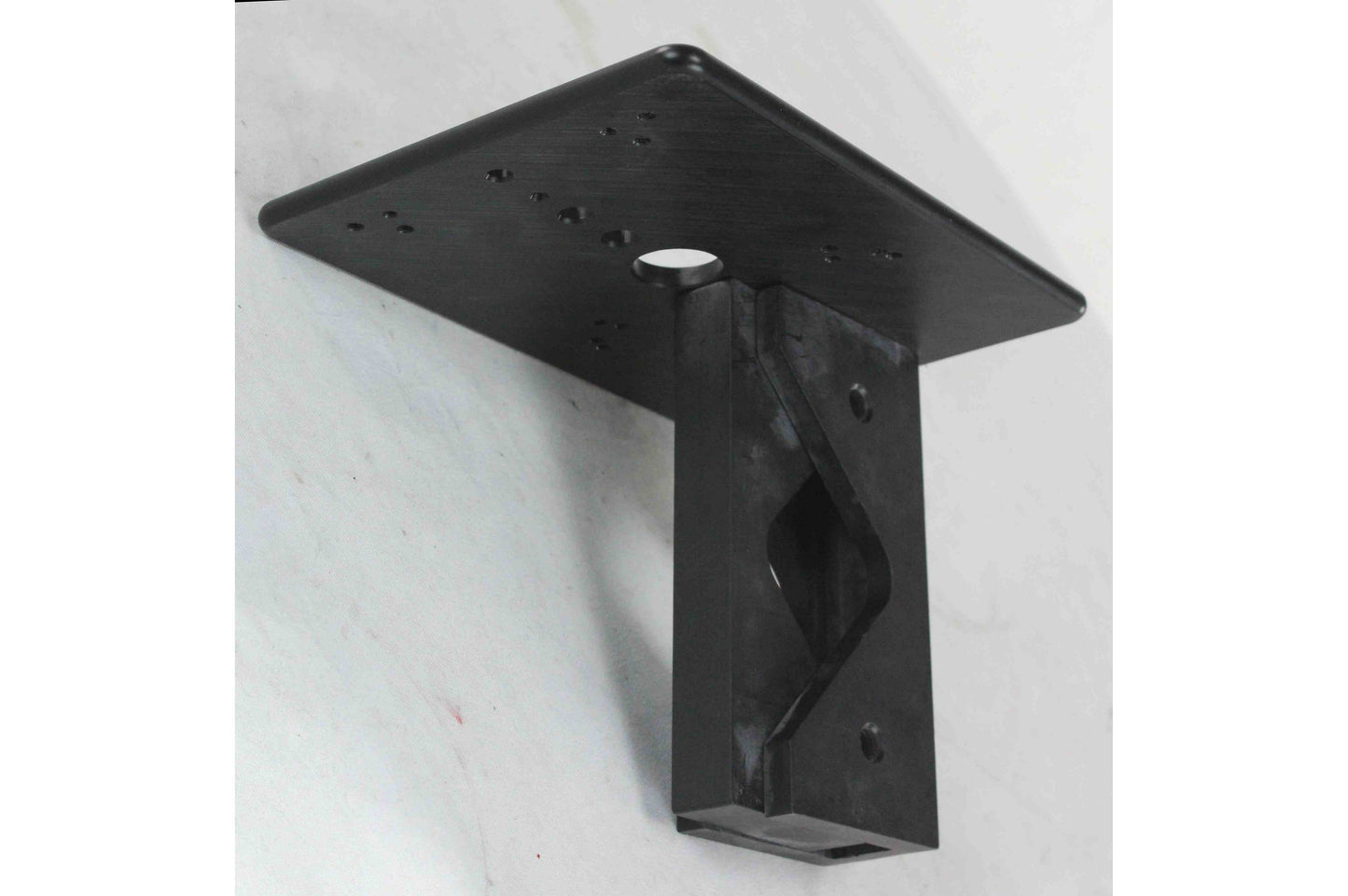

The BC-1-XLRG from Larson Electronics is a Heavy Duty Aluminum Bar Clamping System that enables owners of vehicles, heavy equipment and boats to mount lights or other equipment to square or round tubes, bars or rails. The adjustable clamping system cinches to size around rails of different diameters and can handle payloads to 40 pounds under extreme vibration. for a Step-by-Step Process on the Installation of the BC-1-XLRG Mount
The bar clamp mount is made from aluminum and is available in 2 finishes, including clear anodize and black powder coated. The bar clamp mount adjusts to fit bars, rails, racks, etc. with square or tubular dimensions ranging from 2.75 inches to 3.5 inches in diameter. There are 2 sets of interlocking brackets which are cinched around the square or round tube, using the embedded 1/4-20 stainless steel, socket head bolts.
A mounting plate attaches to the clamps, creating a mounting surface for just about anything. Existing mounting holes include the mounting pattern for the Golight Stryker spotlights, Golight Radioray spotlights, all High Intensity Discharge (HID) equipment lights, HID boat lights and LED spotlight bars and LED spreader floodlight bars
A 3.8 inch hole in the center accommodates post mount lights (like the Acro HID off road lights, 24 volt equipment lights, 12 volt flood lights, HID lights and equipment lights and the Larson Electronics permanent mount lights). The platform also accommodates the 5-inch diameter, 375 pound grip magnets popular with our 12/24 volt DC spotlights, including the HML-6M, HML-5M, HML-7M, HML-8M, etc. with the addition of the magnetic mounting plate (or magnetic stainless steel mounting plate).
A one inch hole enables access for wire harnesses and power cords.
The design of the bar clamp enables the operator to position horizontally or vertically. 2 sets of mounting holes offer the operator the ability to mount the aluminum bracket system on the top or the side of the brackets. Thus this bracket system can be mounted on horizontal rails, bars or tubes. This was in response to customer`s demand for mounting solutions for vertical rails on pumping trucks, etc.
This rail mount solution is effective for magnetic mount lights as well. We have a magnetic stainless steel plate (yes, some stainless steel has magnetic properties) that can be attached to the existing mounting patterns on this light. MMP-2 is the part number for this magnetic mounting plate. With this plate in place, you can remove a light like the GL-3067-M when not in use, but it will stay firmly affixed during use.
This clamping system is effective on heavy equipment, boats, ATVs, trucks, toy haulers, etc.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
