Larson Explosion Proof Cable Gland - M20 NPT - Nickel Plated Brass - ATEX Rated, N4X - 9.906-16.002MM Cable

Larson ElectronicsSKU: PL3-CGB-PXSS2K-NPB-20L-M20
filler

Prix:
Prix réduit$136.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

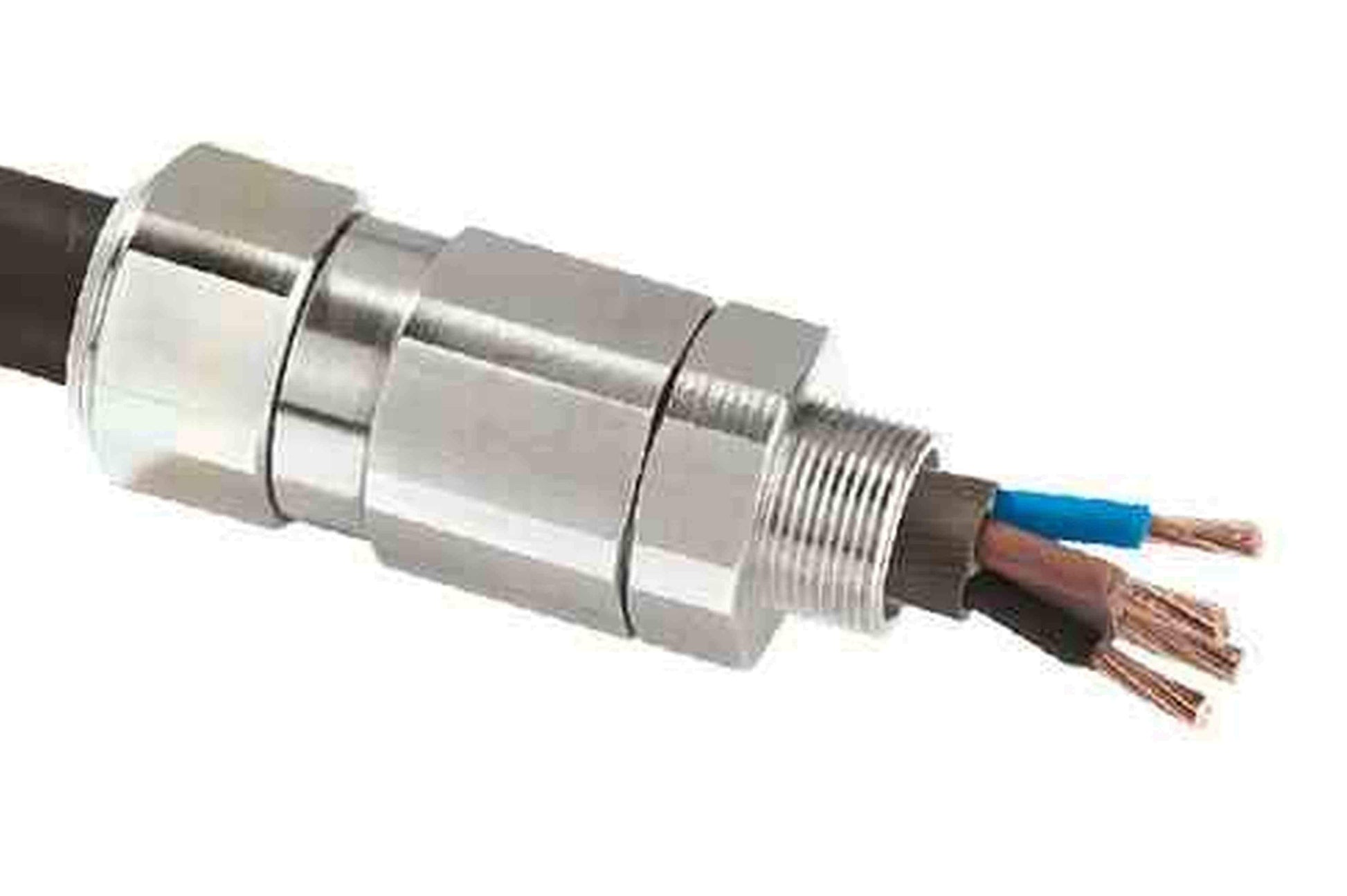

The Larson Electronics CGB-PXSS2K-NPB-20L-M20 Explosion Proof Cable Gland provides secure and safe cable connections in combustible facilities. This unarmored, triple certified flameproof cable gland is constructed of nickel plated brass and caters to standard M20 hubs for connection.
The CGB-PXSS2K-NPB-20L-M20 is a heavy duty cable gland for flammable and rugged environments. This unarmored unit features a standard entry thread of M20. The ATEX-rated cable gland is constructed of nickel plated brass, stainless steel and aluminum. A halogen-free thermoplastic elastomer/barrier compound is used to seal the unit. The accessory is NEMA 4X rated and waterproof (IP66-IP68). This explosion proof cable gland is designed for use in environments ranging between -60°C to +100°C.
Applications:
Mechanical cable retention, cable connections, cable fittings, explosive work sites, hazardous locations, instrumentation, telecommunication, cable management and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications / Additional Information
CGB-PXSS2K-NPB-20L-M20 Cable Gland
Ratings
Unit Type:
Explosion Proof Cable Gland (Unarmored)
Zone 1, 2, 21, 22
Weight:
0.44 lb
ATEX Certifed
Entry Thread (Hub):
M20
IECEx, CSA Approved
Minimum Thread Length:
15mm
INMETRO Approved
Diameter Over Conductors:
12.6mm (Max)
GOST R, GOST K Certified
Number of Conductors:
15 (Max)
Lloyds, DNV, ABS Approved
Cable Diameter:
9.906mm (Min) to 16.002mm (Max)
Rok, GGTN Permitted
Dims Across Flats:
30.5mm (Max)
IP66/IP67/IP68
Dims Across Corners:
33.3 mm (Max)
NEMA 4X
Nominal Protrusion Length:
60.5 mm
Operating Temp:
-60°C to +100°C
Special Orders- Requirements
Materials:
Nickel Plated Brass, SS, Aluminum, Halogen Free Thermoplastic Elastomer (Seal)
Contact us for special requirements
Toll Free:
1(647) 254-9757
Intl:
1-214-616-6180
E-mail:
Contact info@purilite.ca
