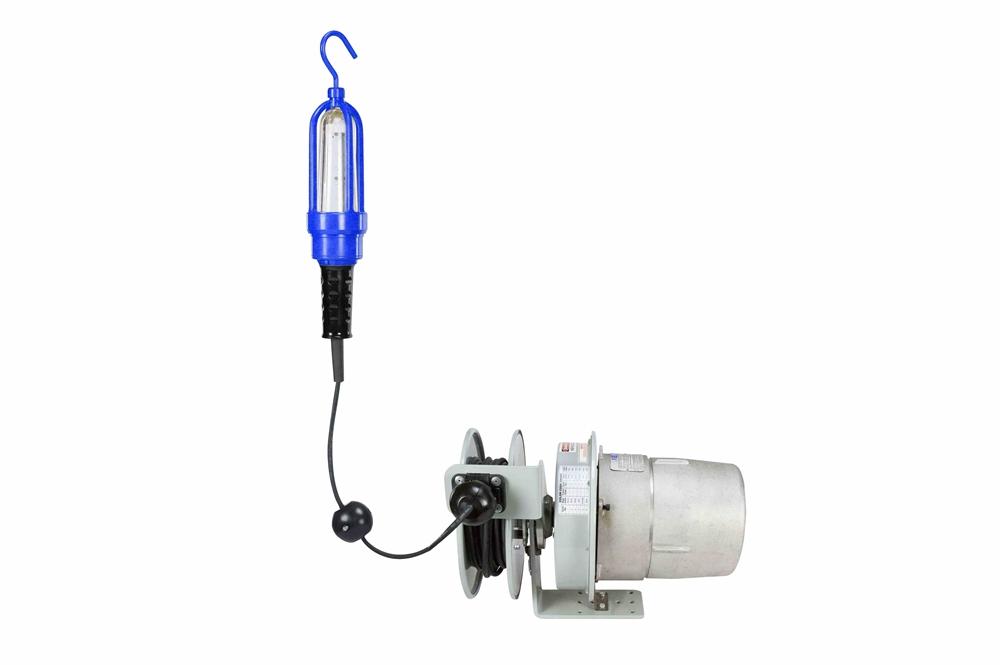

30W Explosion Proof Integrated LED Drop Light & Reel - C1D1 - 25' 16/3 SOOW Cord w/ Explosion Proof Cord Reel

LARSON ELECTRONICSSKU: PL3-EHL-LED-7W-25-HR
filler

Prix:
Prix réduit$9,918.00

Description

Specifications / Additional Information
EHL-LED-7W-25-HR Explosion Proof LED Drop Light Ratings/Approvals
Unit Type: Explosion Proof LED Handlamp Certified to NEC, CEC, ATEX, and IEC Ex Standards
Dimensions: Lamp Only - 16.5"-L x 5"-Dia Class I, Division 1, Groups B, C, D
Lamp Type: LED Class I, Division 2, Groups A, B, C, D
Weight: 12.5 lb; Lamp Only - 5 lb Class II, Divisions 1 & 2, Groups E, F, G
Voltage: 120-277V AC or 11-25V AC/DC Class III, Divisions 1 & 2
Total Watts: 30 Watts Ex d IIB T6 Gb/Ex tb IIIC T85°C Db
Lumens: 3000 Zone 1, Zone 21, Zone 2, Zone 22
Luminous Efficacy: 100 Lm/W T6 (C1D1) / T4A (C2D1) Temp Rating
Color Temp: 6000K IP66 Weatherproof
Color Rendering Index: >80 CRI IK10 Rated
Beam Angle: Omni Directional 1.5KV Surge Suppression
Power Efficiency: >90% 360° Illumination
Power Factor: >0.9
Ambient Operating Temp Range:-50°C to +65°C
Mounting: Aluminum Hook
Wiring: 25' 16/3 SOOW w/ Explosion Proof Cord Reel
Cord Cap: -
Explosion Proof Cord Reel Specifications Ratings/Approvals
Unit Type: Explosion Proof Cord Reel Class I Division 1, Groups C & D
Cord Reel Dimensions: Class II Division 1, Groups E, F, & G
Weight: Class III Division 1
Cord Type: 16/3 SOOW Class 1 Zone 1: AEx d IIB, EX d IIB
Feeder Cord Length: 6' Conforms to NEMA 9 and NEMA 4 (IP56) Standards
Enclosure Materials: Rugged Fabricated Steel and Cast Aluminum Slip Ring Ex d IIB T6 Gb/Ex tb IIIC T85°C Db
Finish: Gray Epoxy on Steel Parts Zone 1, Zone 21, Zone 2, Zone 22
Special Orders - Requirements
Toll Free: 1-800-369-6671
E-mail:
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }
Made in the USA The EHL-LED-7W-25-HR from Larson Electronics is an Explosion Proof LED Drop Light / Trouble Light with Explosion Proof Cord Reel that is ideal for general lighting, detailed tasks, and inspections in hazardous locations. This 30-watt unit features 3,000 lumens of illumination. A heavy-duty swivel hook at the top of the handlamp offers versatile mounting on poles, indentions and small openings for hands-free operation. A unique angled board design offers 360° of comprehensive lighting. This explosion proof handlamp is certified to NEC, CEC, ATEX, and IEC Ex standards for worldwide use. This 30 watt explosion proof LED work light produces 3000 lumens of bright white light and comes complete with 75 feet of explosion proof cord. The EHL-LED-7W-25-HR LED drop light has no ballast and the housing is constructed of non sparking aluminum which results in a very lightweight unit. This hazardous location unit is approved for Class I, Divisions 1 & 2, Class II, Divisions 1 & 2, Zone 1 & 2, and Zones 21 & 22 environments. This explosion proof LED drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired. The non sparking reel contains this unit's 25' of SOOW Cord for convenient cord management. An explosion proof reel and LED hand lamp can be installed and used within the hazardous location area, making it ideal for hazardous work areas where a ready source of easily managed lighting is desired. Cord Reel Ratings: The explosion proof ratings for the cord reel on the EHL-LED-7W-25-HR are different from the handlamp itself. Be sure to read them and understand them before installing this unit. The explosion proof ratings for the cord reel are as follows: Class I Division 1, Groups C & D, Class II Division 1, Groups E, F, & G, Class III Division 1, and Class 1 Zone 1: AEx d IIB, EX d IIB. The cord reel also conforms to NEMA 9 and NEMA 4 (IP56) standards.
100 Watt Incandescent Bulb With the EXP-LED-7W-75
Click Photos to Enlarge Click Photos to Enlarge
This 30 watt LED drop light is suitable for use in areas where petrochemical vapors and various dusts are present and projects 3000 lumens of light, which is twice the lumens per watt output of a 100 watt incandescent bulb. This unit is rated Class I, Division 1 and comes complete with 25' of SOOW 16/3 AWG cord contained on an explosion proof cord reel. This hand lamp has a high efficiency LED bulb that requires no ballast, so the operator doesn't need to drag the ballast housing around. This can be particularly annoying when the transformer becomes entangled in the cord. The light produced by this unit has a 6000k color temperature, which is much sharper and whiter than the light produced by incandescent lamps. The light produced by this lamp is ideal for close work and inspection activities where good contrast and true color representation is needed. The LED lamp in this unit runs much cooler than incandescent or fluorescent lamps, resulting in a lamp housing that remains cool to the touch and eliminates the accidental burns often encountered with incandescent drop lights. Voltage: This explosion proof LED hand light operates on standard 120-277 Volts AC 50/60 Hz or 11-25 V AC/DC for low voltage applications. Make your selection when ordering.
