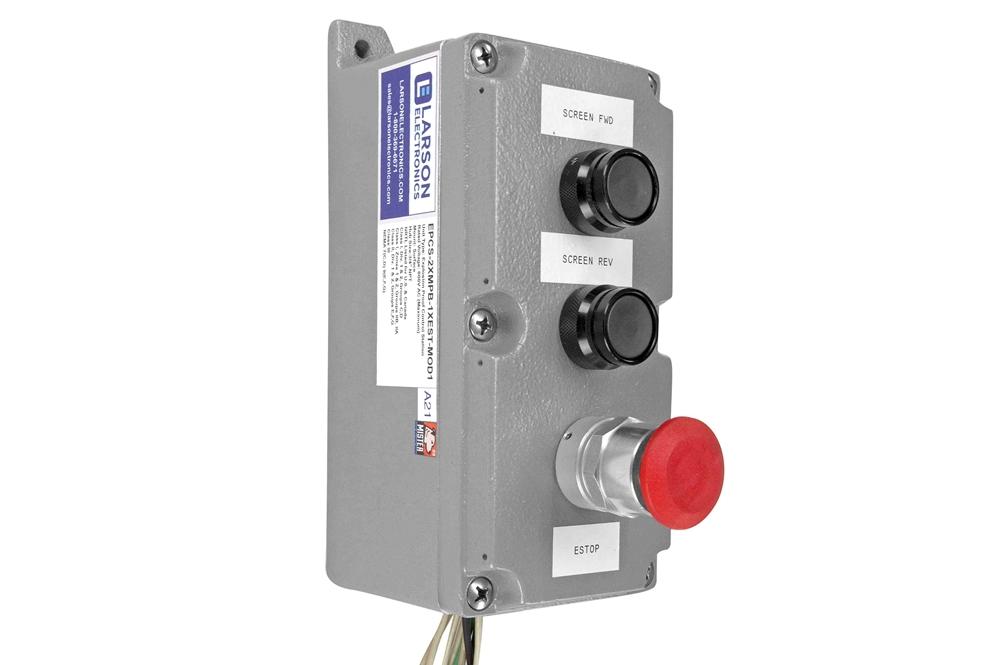

Explosion Proof Control Station - C1D1 - (2) Momentary Jog PBs (1) Mushroom E-stop - NEMA 7/9

LARSON ELECTRONICSSKU: PL3-EPCS-2XMPB-1XEST-MOD1
filler

Prix:
Prix réduit$2,666.00

Description

Specifications / Additional Information
EPCS-2XMPB-1XEST-MOD1 Explosion Proof Control Station Ratings/Approvals
Unit Type: Explosion Proof Control Station Class I, Div. 1 & 2, Groups C,D
Dimensions: 9.375€ x 4" x 3.25" Class I, Zones 1 & 2, Groups llB, llA
Weight: - Class II, Div. 1 & 2, Groups E,F,G
Rated Voltage: 600V AC (Maximum) Class III
Emergency Stop: (1) Maintained Mushroom Pushbutton - 1 NO/1 NC, Red NEMA 7(C,D) 9(E,F,G)
Jog Pushbuttons: (1) Forward - Momentary Pushbutton - 1 NO, Black; (1) Reverse - Momentary Pushbutton - 1 NO, Black Operator Legend Plates
Materials: Aluminum and SS
Enclosure Type: Drilled and Tapped (3) Operator Holes
Mount: Surface
Hub Size:3/4" NPT Toll Free: 1-800-369-6671
  Intl: 1-214-616-6180
  Fax: 1-903-498-3364

' Product Overview '
The Larson Electronics EPCS-2XMPB-1XEST-MOD1 Explosion Proof Control Station is suitable for busy operations in hazardous locations. Featuring five drilled and tapped operator holes, the unit supports several control mechanisms for heavy-duty machines. One emergency stop pushbutton and two momentary jog pushbuttons can be found on this station. Constructed of aluminum with stainless steel components, the NEMA-rated unit is surface mount compatible. The EPCS-2XMPB-1XEST-MOD1 is a durable explosion proof control station designed for hazardous locations. Featuring a maximum voltage rating of 600V AC, this unit supports a total of three drilled and tapped operator holes. For emergency stop, a single pushbutton maintained contact mushroom head is available with an `ESTOP` marked legend plate. Operators are also provided access to two jog pushbuttons. The single forward jog pushbutton is terminated in parallel with the FWD contact of the `screen FWD/Off/Rev` 3-position selector switch. The jog switch features a `Screen FWD` label and only works when the `Screen M-O-A` switch is manually positioned. The reverse jog pushbutton with a `Screen Rev` label is terminated in parallel with the Rev contact of the `screen FWD/Off/Rev` 3-position selector switch. This component only works when the `Screen M-O-A` switch is manually positioned. The EPCS-2XMPB-1XEST-MOD1 is constructed of aluminum with stainless steel parts. Operator name plates are displayed for accurate and proper use of the unit. The NEMA-rated control station is compatible with surface mount configurations. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers and more.
