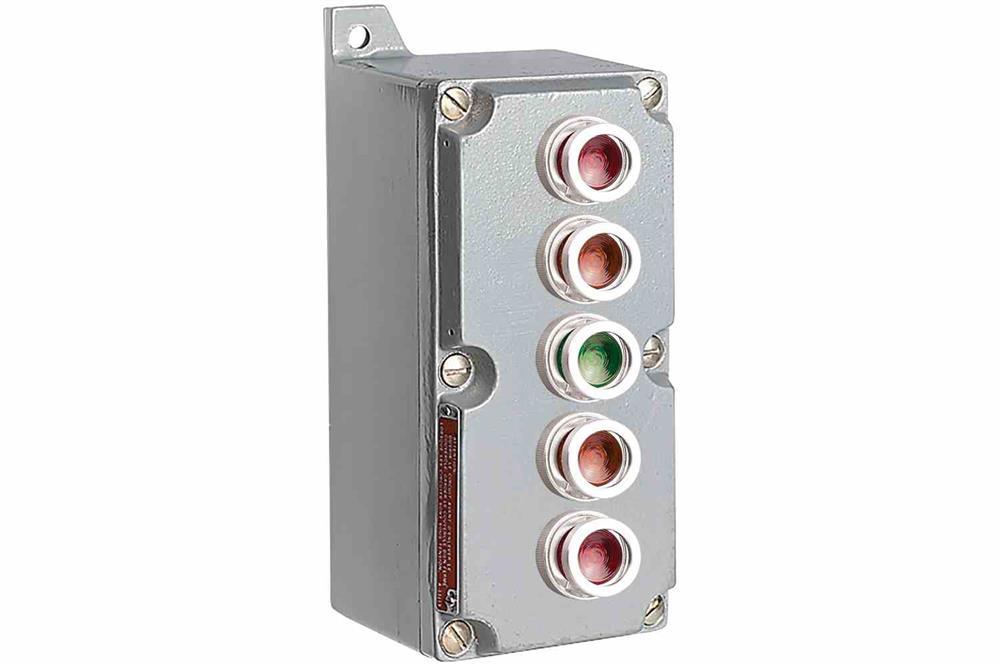

Explosion Proof Control Station - C1D1 - 24V - (5) LED Pilot Lights -Red, Amber, Green, Amber, Red
Explosion Proof Control Station - C1D1 - 24V - (5) LED Pilot Lights -Red, Amber, Green, Amber, Red
| EPCS-5XPL-LED-RAGAR-24V Explosion Proof Control Station | Ratings/Approvals |
| Listing: United States, Canada | Class I, Divisions 1 & 2, Groups C & D |
| Unit Type: Explosion Proof Control Station | Class I, Zones 1 & 2, Groups llB, llA |
| Dimensions: 13" x 3-1/4" x 3-3/16" | Class II, Divisions 1 & 2, Groups E, F, & G |
| Weight: - | Class III |
| Voltage: 24V DC | NEMA 7(C,D) 9(E,F,G) |
| Watts: - | |
| Bulb Type: LED | |
| Pilot Light Quantity: 5 | |
| Pilot Light Colors (Top to Bottom): Red, Amber, Green, Amber, Red | |
| Materials: Copper-free Aluminum | |
| Mount: Wall; (2) Mounting Holes | |
| Mount: Surface | |
| Housing Color: Gray |
| The EPCS-5XPL-LED-RAGAR-24V from Larson Electronics is an Explosion Proof Control Station that offers highly visible notifications in flammable environments. This 24V DC unit features five LED pilot lights on the station. Constructed of copper-free aluminum, this NEMA-rated device can be mounted on walls using two mounting holes at the back of the enclosure. The EPCS-5XPL-LED-RAGAR-24V is a durable explosion proof control station designed for hazardous locations. Designed to operate on 24V DC, this unit contains a total of five LED pilot lights. The lighting arrangement on the explosion proof control station includes the following (top to bottom): red, amber, green, amber, red. The EPCS-5XPL-LED-RAGAR-24V is constructed of copper-free aluminum. The NEMA-rated control station is compatible with wall-mounting configurations, via two mounting holes located in the upper left corner and bottom right corner of the enclosure. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers and more. |
