EXP Emergency Stop Switch, 600V 20A DPST, LV Aux Contacts, Shutoff Pump Label
EXP Emergency Stop Switch, 600V 20A DPST, LV Aux Contacts, Shutoff Pump Label

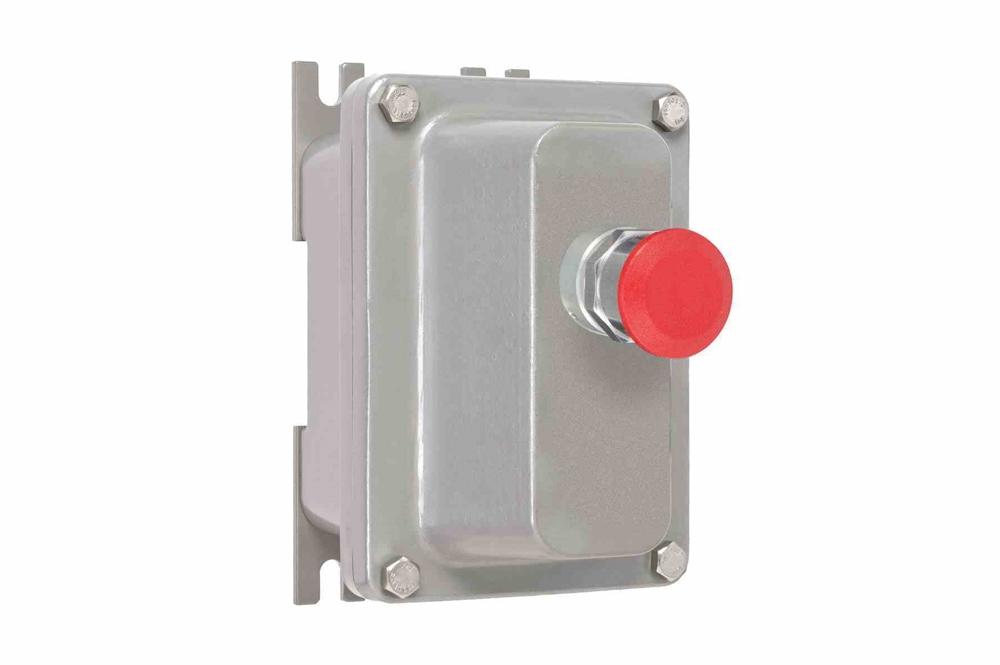

| EPCS-PB20-600V-2P-AXC-M2 Explosion Proof Emergency Stop Switch | Features/Ratings |
| Unit Type: Explosion Proof Push Button Switch | Listed for United States & Canada |
| Dimensions: 5.75" x 8.06" x 6.31" | Class I, Divisions 1 & 2, Groups C, D |
| Weight: 12 lbs | Class II, Divisions 1 & 2, Groups E, F, G |
| Rated Voltage: 600 V | Class III, Divisions 1 & 2 |
| Amps: 20 A | NEMA 3R, 4, 4X, 7 (C, D), 9 (E, F, G) |
| Switch Configuration: Double Pole, Single Throw (DPST) | NRTL Listed to UL 508A |
| Switch Type: Red Mushroom Head | NRTL Listed to UL 1203 |
| Reset: Push-Pull | NRTL Listed to CSA C22.2 No 14, 25, 30 |
| Auxiliary Contacts: Low Voltage | |
| Custom Label Legend: Emergency Stop, Shutoff Pump | |
| Materials: Cast Copper-free Aluminum | Toll Free: 1-800-369-6671 |
| Finish: Grey Powder Polyester Painted Exterior, Electrostatically Applied | Intl: 1-214-616-6180 |
| Mounting: Surface Mount via Mounting Lugs | Fax: 1-903-498-3364 |
| Configuration: Feed Through or Dead End | E-mail: |
| The EPCS-PB20-600V-2P-AXC-M2 from Larson Electronics is an Explosion Proof Emergency Stop Switch that provides accurate control of machines, devices and processes in Class I, II and III rated environments. This explosion proof device is 600 V rated and is protected by a NEMA 4X rated enclosure. The 20-amp double pole single throw (DPST) red push button switch can be reset with a push-and-pull action and is offered in a feed through or dead end configuration. This unit is equipped with a label reading "Emergency Stop Shutoff Pump" above the push button. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPCS-PB20-600V-2P-AXC-M2 is designed for robust control of machines, motors and devices in combustible work sites. This double pole, single throw switch is rated at 600 V. The 20-amp unit features a red, mushroom head switch, which is easily visible. Operators can connect to low voltage auxiliary contacts on the explosion proof unit. Reset is facilitated by a push-and-pull action. The explosion proof device is constructed of cast copper-free aluminum with a grey powder polyester painted exterior and electrostatically applied finish. Equipped with a NEMA 4X rating, the EPS-PB10-MS-AT-N4X-V3 is corrosion resistant and suitable for indoor and outdoor locations. The unit`s enclosure provides protection from solid foreign objects, sleet, rain, snow, hose-directed/splashing water; and external formation of ice will not damage the outer surface. NEMA 4X equipment are ideal for use in corrosive, harsh, combustible and washdown environments. Mounting: Operators may mount the explosion proof unit on surfaces via mounting lugs. The EPCS-PB20-600V-2P-AXC-M2 is offered in a feed through or dead end configuration. Applications: Hazardous locations, control stations, machine activation, marine sites, outdoor locations, industrial facilities, warehouses, manufacturing sites and more. |
