10A Explosion Proof Double Push Button - Class I, II, III - Maintained Contact, Green/Red - NEMA Rated

LARSON ELECTRONICSSKU: PL3-EPCS-PBS-2PB-RG-XL
filler

Prix:
Prix réduit$974.00

Description

Specifications / Additional Information
EPCS-PBS-2PB-RG-XL Double Push Button Ratings/Approvals
Listing: NRTL Listed for United States, Canada Class I, Divisions 1&2 Groups B,C,D
Unit Type: Explosion Proof Double Push Button Switch (Long) Class I, Zones 1 & 2 Groups llB, llA
Dimensions: 6.34" x 2.25" x 2" Class II, Divisions 1 & 2 Groups E, F, G
Weight: 0.66 lb Class III
Voltage Rating: 600V AC NEMA 3, 4, 4X, 7 (B,C,D) 9 (E,F,G)
Amps: 10A
Poles: 2P
Colors: Green and Red
Contact Type: Maintained
Contact Rating: 60A In Rush @ 120V AC; 30A In Rush @ 240V AC; 15A In Rush @ 480V AC; 12A In Rush @ 600V AC; 0.55A In Rush @ 125V DC; 0.275A In Rush @ 250V DC; 6A Breaking @ 120V AC; 3A Breaking @ 240V AC; 1.5A Breaking @ 480V AC; 1.2A Breaking @ 600V AC; 0.55A Breaking @ 125V DC; 0.275A Breaking @ 250V DC; 10A Carrying @ 120V AC; 10A Carrying @ 240V AC; 10A Carrying @ 480V AC; 10A Carrying @ 600V AC; 2.5A Carrying @ 125V DC; 2.5A Carrying @ 250V DC
Nameplate Marking: -
Ambient Temperature Range: -25ºC to 40ºC Toll Free: 1-800-369-6671
Materials: Aluminum and Stainless Steel
Mount: Surface/Panel
Threaded Body: 3/4-14 NPSM Thread
' Product Overview '

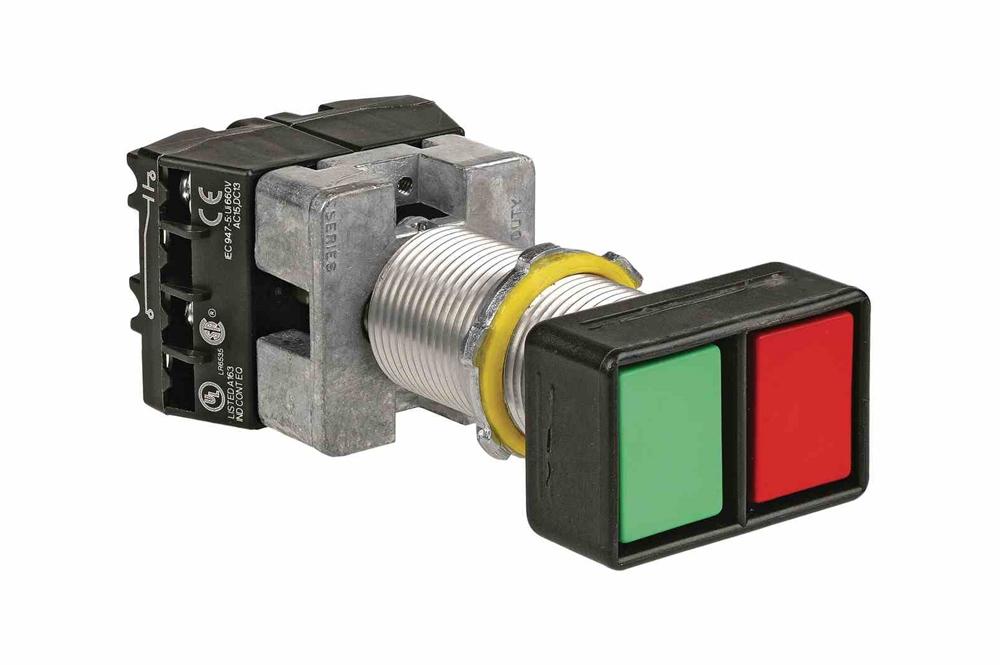

The EPCS-PBS-2PB-RG-XL from Larson Electronics is an Explosion Proof Double Push Button Switch that is suitable for preventing the ignition of external, flammable atmospheres in hazardous locations. This 600V-rated unit features a long body design for installation in thick panels. The explosion proof device features a 3/4-14 NPSM threaded body. The EPCS-PBS-2PB-RG-XL is rated for Class I, Divisions 1 & 2; Class I, Zones 1 & 2; Class II, Divisions 1 & 2; and Class III facilities. The 10-amp long double push button switch comes with a maximum rating of 600V AC. Featuring maintained contact operation, the push buttons are green and red. The explosion proof device has a 3/4-14 NPSM threaded body. For protection in hazardous locations, the explosion proof unit is constructed of aluminum and stainless steel. This double push button is compatible with panel or surface mounting applications. Applications: Chemical processing facilities, food processing plants, oil refineries, agricultural sites, grain storage facilities, metal processing and more.
