Explosion Proof Control Station - C1D1 - (8) 20A Rated Momentary Push Buttons - Surface Mount, (4) Hubs
Explosion Proof Control Station - C1D1 - (8) 20A Rated Momentary Push Buttons - Surface Mount, (4) Hubs
| EPCS-SG-8XMPB-M1 Explosion Proof Control Station | Ratings |
| Listing: NRTL Listed for United States, Canada | Class I, Division 1 |
| Dimensions: 13.25'' (336.55mm) L x 17.25'' (438.15mm) H x 8.70'' (220.98mm) D | Â |
| Weight: - | Â |
| Voltage: 277V AC | Â |
| Push Button Amp Rating: 20 Amps | Â |
| Push Button Qty/Type: (8) Momentary Push Buttons | Â |
| Green Push Button Location/Label: (4) Left Side/Start | Â |
| Red Push Button Location/Label: (4) Right Side/Stop | Â |
| Contacts: (1 Set per Push Button) NO/NC | Â |
| Ambient Operating Temp Range: - | Â |
| Operating Temp Rating: - | |
| Enclosure Material: Copper Free Cast Aluminum (less than 4/10 of 1%) | Â |
| Hardware Material: Zinc Plated Steel | Â |
| Enclosure Finish: Aluminum Lacquer Paint; Custom Available | |
| Mounting: Surface Mount | |
| Total Hub Quantity: (4) | Toll Free:Â 1-800-369-6671 |
| North Side Hubs: (2) 3/4" NPT | |
| South Side Hubs: (1) 3/4" NPT | |
| East Side Hubs: (1) 3/4" NPT | |
| *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |

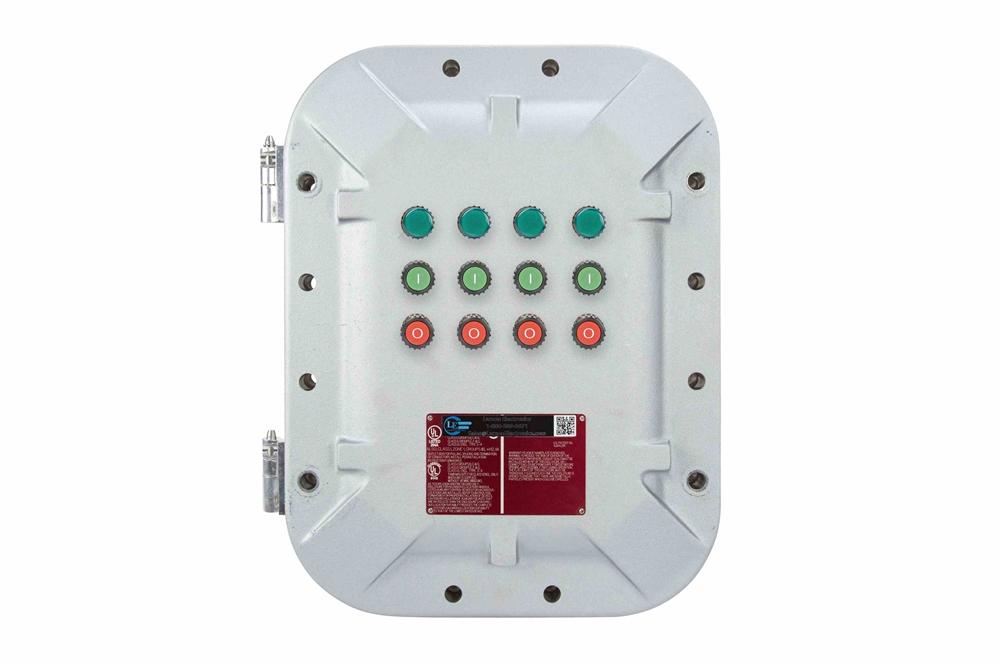

| Made in the USA The Larson Electronics EPCS-SG-8XMPB-M1 Explosion Proof Control Station is designed for use with systems and motors in combustible facilities. This unit is equipped with eight, 20-amp momentary push buttons. Each explosion proof push button features one set of normally open/normally closed contacts. The explosion proof device is ideal for indoor or outdoor applications where flammable vapors, gases, or dust exist or stand the potential to exist. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPCS-SG-8XMPB-M1 is designed for equipment or motor control in combustible work sites. Compatible with 277V AC, the system contains eight explosion proof momentary push buttons. Four green push buttons labeled "Start" are available on the left side of the unit. Four red push buttons labeled "Stop" are available on the right side of the unit. All push buttons are rated at 20 amps and contain one set of NO/NC contacts. The unit is protected by a cast aluminum enclosure with stainless steel hinge and bolts, and includes a watertight gasket. Hubs: The following hubs are available on the explosion proof control station: (2) 3/4" NPT hubs @ north side, (1) 3/4" NPT hub @ east side and (1) 3/4" NPT hub @ south side. Mounting: The EPCS-SG-8XMPB-M1 is compatible with surface mounting applications. |
