Larson Explosion Proof Extension Cord - Double Gang - 30 Amp Continuous Service - 50' 12/3 SOOW Cord

Larson ElectronicsSKU: PL3-EPEXC-2X-50-10.3-30A
filler

Prix:
Prix réduit$5,210.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

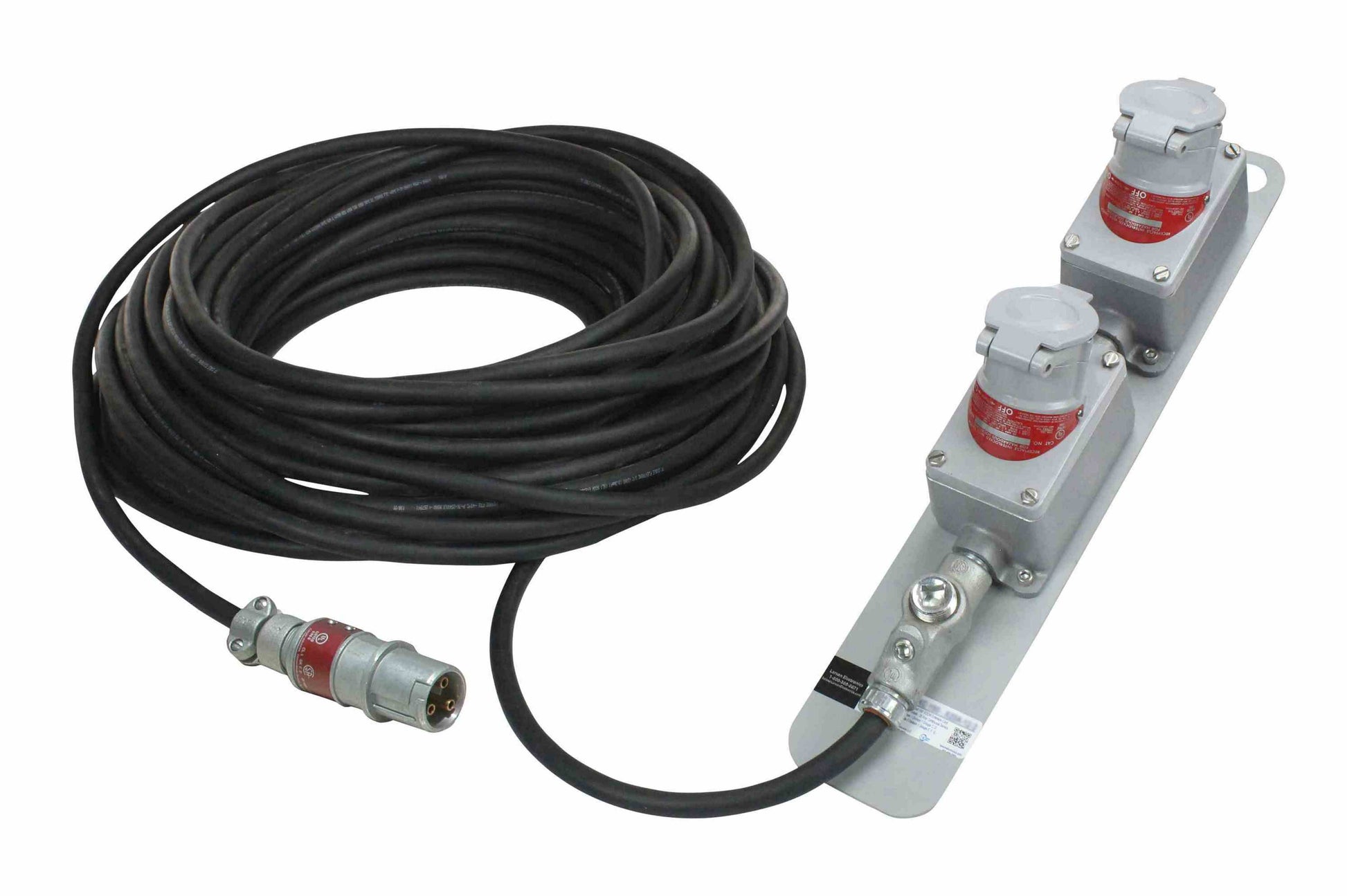

The Larson Electronics EPEXC-2X-50-10.3-30A Explosion Proof Extension Cord allows operators to safely extend the range of their explosion proof light or equipment cords within the boundaries of the hazardous work area. These units are constructed of 50 feet of 10/3 SOOW explosion proof cord rated at 30 amps of continuous service. The cord is chemical and abrasion resistant and comes with two 20 amp explosion proof receptacles installed on one end and a general area use 30 amp pin/sleeve cord cap installed on the other end.
The two 20 amp power receptacles are constructed of non sparking aluminum and finished with an epoxy powder coating while the housing is constructed of triple coated malleable iron for durability and added corrosion resistance. The internal receptacle plug contacts are constructed of brass and designed to maintain constant pressure along their entire length for superior connectivity. The plug receptacles are deeply recessed to prevent accidental contacts and designed for twist lock plug insertion to provide secure connections. A neoprene seal fitted inside the connector receptacle seals against the plug when inserted to provide positive sealing against water ingress. A spring loaded receptacle door provides an automatic weather-tight seal when the plug is removed. In standard installations within the hazardous location area, threaded rigid pipe is brought to the outlet and the outlet is affixes to a mounting surface.
The receptacles on these units are of a twist lock design. In order for a secure and working connection to take place, the operator must insert the plug and twist until it locks into place. This ensures a safe seal is made before any sparks from electrical contact can take place. To ensure the highest safety, operators should make connections outside of the hazardous area.
These explosion proof extension cords are preconfigured in 125 V (left) or 250 V (right). Each unit is equipped with a 30 amp explosion proof pin/sleeve cord cap and rated for 30 amps of continual service. The outlets are a twistlock design. The deep recessed contacts in the receptacle housing prevents ordinary and wet location plugs from activating the explosion proof outlets.
Inter-Compatibility:
The included explosion proof plug and receptacles are cross-interchangeable with Crouse Hindâ„¢ part# ENPENP5151 plugs and receptacles and Hubble-Killiark part# UGP-15231 ACCEPTOR plugs and receptacles. Any equipment requiring these C-H or H-B plugs should work with these cords. Due to possible manufacturer changes we cannot guarantee interchangability although we have made every effort to ensure cross compatibility correctness.
Wiring and Plug:
This explosion proof extension cord is equipped with 50 feet of 10/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade 30 amp pin/sleeve cord cap.
Suggested Applications:
Manufacturing, Industrial, Warehouse, Lighting, Explosion Proof Light Fixtures, Grinders, Wet areas or Locations Where Combustible Dust is Present.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Amp Rating: 30 Amp Continuous Service
Cord Length: 50 Feet 10/3 SOOW
Configuration: 2 Pole 3 Wire 2 Pole 3 Wire
Receptacles: (2) 20 Amp Receptacles
Configuration: 2 Pole 3 Wire 2 Pole 3 Wire
Voltage: 125V or 250V
Materials: Copper Free Aluminum
Mating Plugs: ****EPP-15A, EPP-20-A***
Finish: Epoxy Powder Coat
Cord Cap: 30 Amp Pin/Sleeve Cord Cap
