30" Electric Explosion Proof Fan - Stainless Steel - 8723 CFM - Wall or Ceiling Mount - C1D1 & C1D2

LARSON ELECTRONICSSKU: PL3-EPF-30-PM-SS
filler

Prix:
Prix réduit$4,268.00
 Plus de moyens de paiement

Description

Specifications / Additional Information
EPF-30-PM-SS Explosion Proof Fan/Blower Ratings/Approvals:
Dimensions: 30"-Dia x 15-D Class I, Divisions 1 & 2, Groups C, D
Weight: 61 lbs. Class II, Divisions 1 & 2, Groups E, F, G
Motor: 0.25 Horsepower T3B Temp Rating
Voltage: 115/230V AC
Ambient Temperature: 40°C (104°F)
Ambient Temperature Rating: 10°C to 40°C
Motor Insulation: Class B
Sound Level: 75db @ 3ft
Start-up Amps: 5.6A @ 115V - 2.8A @ 230V
Fan Type: Circular Fan
Fan Blade Pitch: 14 Degrees Toll Free: 1-800-369-6671
CFM Delivery: 8,723 Intl: 1-214-616-6180
Wiring: 3/4" Hub Fax: 1-903-498-3364
Mounting: Ceiling or Wall Mount
' Product Overview '

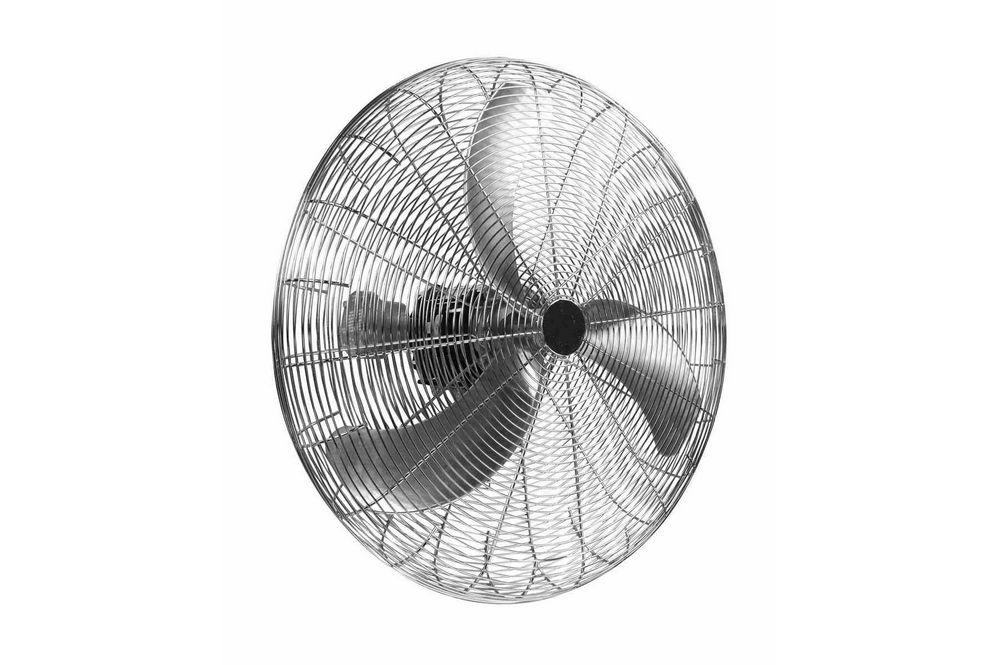

Made in the USA The Larson Electronics EPF-30-PM-SS Explosion Proof Circular Fan with Stainless Steel Guards and Blades redirects and circulates air within hazardous locations. This explosion proof fan meets UL standards for hazardous areas and provides a high 8,723 CFM output for effective airflow in larger spaces including food prep and food processing environments. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT* This electric explosion proof circular fan is suitable for confined spaces and is approved for use within Class I Divisions 1 & 2 and Class II Divisions 1 & 2 hazardous locations. This fan features a high efficiency 1/4 HP motor which is fully encapsulated with a powder coated aluminum motor enclosure and a precision balanced, non sparking stainless steel blade assembly with a stainless steel gaurd for high output and protection against accidental ignitions. This fan has 30" propeller diameter and produces over 8,723 CFM of air output for excellent circulation of air in large areas. The EPF-30-PM-SS has an ambient temperature rating of 10° to 40°C and is suitable for washdown environments such as food prep and food processing applications. This fan is rated for single phase 115/230V 60Hz and operates at 1,140 RPM. A powder coated aluminum junction box houses the fan motor and allows for electrical connections to the fan. Mounting options include ceiling mount for suspended pendant mounting and a wall mounting kit for mounting to flat surfaces. A 12` stainless steel safety cable is included with ceiling mount kits.
