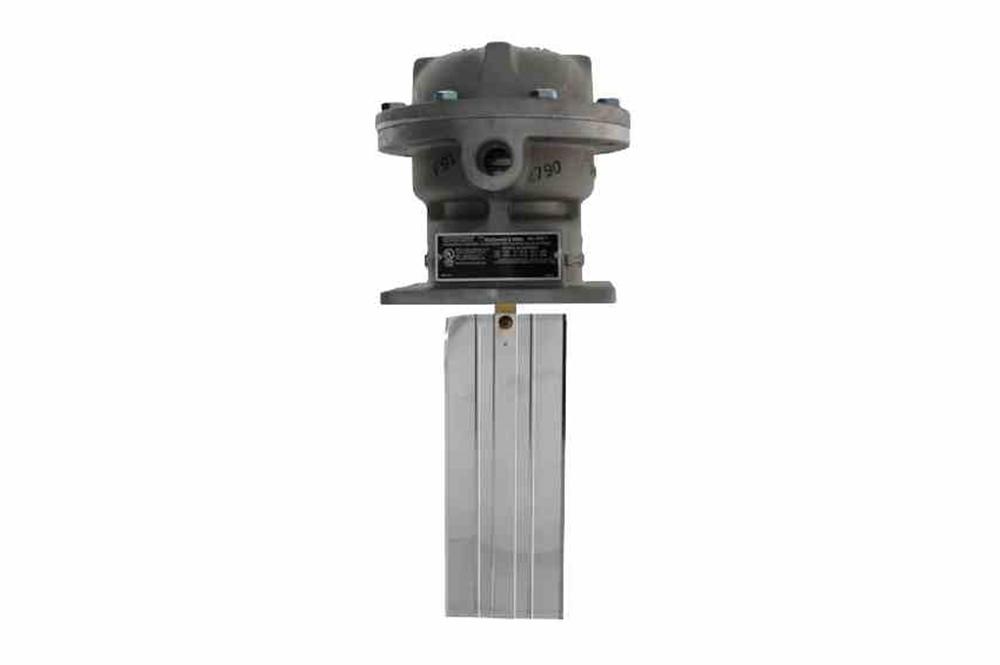

Explosion Proof Air Flow Switch for Medium Velocity - Class I, II - 120/240V - NEMA 7/9 - 1/2" NPT Hub
Explosion Proof Air Flow Switch for Medium Velocity - Class I, II - 120/240V - NEMA 7/9 - 1/2" NPT Hub
Sold by: LARSON ELECTRONICS
| EPF-AFM-SW1 Explosion Proof Airflow Switch | Features/Ratings |
| Listing: NRTL Listed for United States and Canada | Class I, Division 1 Groups C,D - NEMA 7 |
| Unit Type: Medium Velocity Airflow Switch | Class II, Division 1 Groups E,F,G - NEMA 9 |
| Dimensions: 10.25" x 5.75" x 4.5" | NEMA 7 or NEMA 9 |
| Weight: 6 lbs | Â |
| Rated Voltage: 120/240V AC | Â |
| Motor Switch Rating:Â 7.4A (Full Load), 44.44 (Locked Rotor) - 120V; 3.7A (Full Load), 22.2A (Locked Rotor) - 240V | Â |
| Pilot Duty: 125VA @ 120/240V, 50/60Hz | Â |
| Switch Type: Magnetic | Â |
| Switch Configuration: Single Pole, Double Throw Snap Switch | Â |
| Flow Rate (feet per minute) - Horizontal Top Mounting Duct: 300 fpm to 1900 fpm - Flow Operation; 100 fpm to 500 fpm - No Flow Operation | Â |
| Flow Rate (feet per minute) - Horizontal Side Mounting Duct: 350 fpm to 1950 fpm - Flow Operation; 100 fpm to 900 fpm - No Flow Operation | Â |
| Flow Adjustment: Screw | |
| Maximum Ambient Temperature: 49°C | |
| Maximum Duct Temperature : 135°C | |
| Materials: Brass, Steel, Aluminum | Toll Free:Â 1-800-369-6671 |
| Finish: - | Intl:Â 1-214-616-6180 |
| Mounting: Duct Mount, Horizontal or Vertical, Paddle fits 8" Minimum Duct Size | |
| Hub Size: 1/2" NPT |
| The Larson Electronics EPF-AFM-SW1 Explosion Proof Air Flow Switch for Medium Velocity facilitates active monitoring of air flow velocity in combustible locations. This unit is equipped with a magnetic, single pole double throw snap switch and has a 1/2" NPT conduit connection. Recommended for use with fan systems, the NEMA rated device is compatible with duct mounting applications. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPF-AFM-SW1 is designed for use in Class I and II environments. Suitable for applications with medium velocity requirements, this unit operates on 120/240V AC and is equipped with a magnetic, single pole double throw snap switch. The explosion proof device offers 300 fpm to 1,900 fpm flow operation (100 fpm to 500 fpm - no flow operation) when mounted at the top of ducts in a horizontal position and 350 fpm to 1,950 fpm flow operation (100 fpm to 900 fpm - no flow operation) when mounted at the side of ducts in a horizontal position. An accessible sensitivity adjusting screw enables quick flow adjustment. This airflow switch has a 49°C maximum ambient temperature rating and a 135°C maximum duct temperature rating. The unit is made out of brass, steel and aluminum. Hubs: Operators may access a 1/2" NPT hub on the explosion proof device. Mounting: The EPF-AFM-SW1 is compatible with duct mounting installations (8" minimum duct size). This unit can be installed horizontally or vertically. |
