12" Explosion Proof Exhaust Fan - C1D1 - 650 CFM - Motorized Louvers - Wall Mount - Group B Hydrogen

LARSON ELECTRONICSSKU: PL3-EPF-LPSM-B-12-0.15HP-V2
filler

Prix:
Prix réduit$7,664.00
 Plus de moyens de paiement

Description

Specifications / Additional Information
EPF-LPSM-B-12-0.15HP Explosion Proof Exhaust Fan Ratings/Features
Unit Type: Toxic Gas Exhaust Fan Class I, Division 1 & 2, Groups B, C, D
Dimensions: 9.5" x 12" x 12" Weather Resistant
Weight: -
Watts: 80W
Voltage: 120V AC, 24V DC or 48V DC
CFM: 650 CFM
Internal Louvers: Motorized Locking (Open/Closed)
External Louvers: Fixed, Rain
Status Display: LEDs
Amps: 0.67A @ 110V AC, 3.5A @ 24V DC, 1.7A @ 48V DC Toll Free: 1-800-369-6671
Mount: Wall via Sliding Collar Intl: 1-214-616-6180
Mounting Dimensions: 12.25" x 12.25 Opening, 1.5" - 8" Thickness
Wiring: NA
' Product Overview '

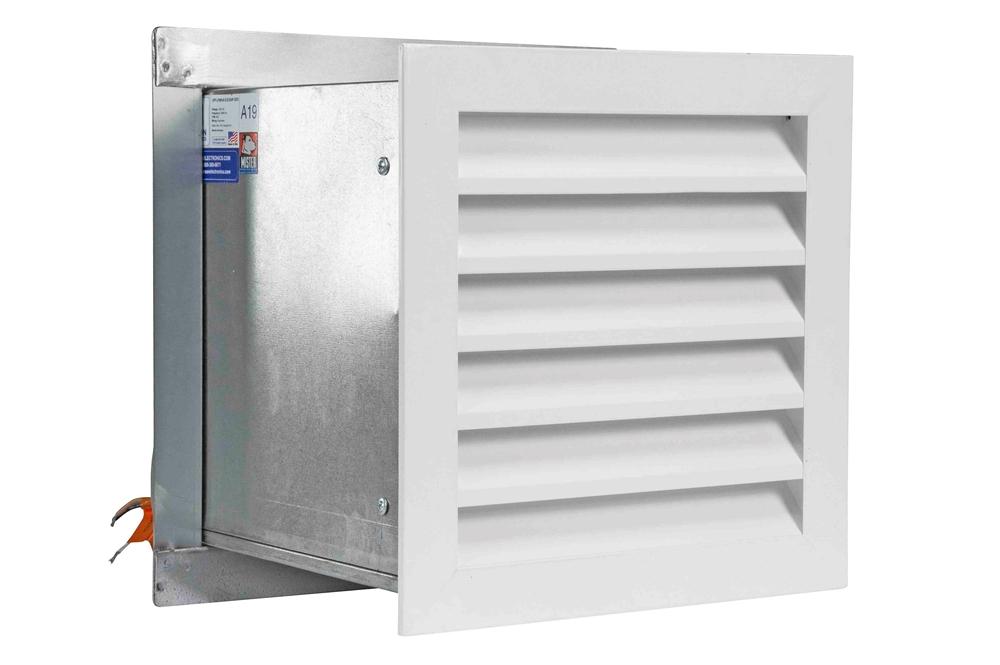

The Larson Electronics EPF-LPSM-B-12-0.15HP is an Explosion Proof Exhaust Fan for Class I, Division 1 & 2 rated flammable sites. This wall-mount fan features internal motorized and external fixed louvers. The 650 CFM unit is weather resistant and recommended for use with toxic gas sensors (not included). The EPF-LPSM-B-12-0.15HP is an explosion proof exhaust fan for reducing the accumulation of toxic gases, such as hydrogen, inside combustible facilities, including battery charging rooms. This 80-watt fan operates on 120V AC, 48V DC or 24V DC and contains motorized louvers that lock in an open or closed position, as well as fixed external rain louvers. Capable of providing 650 CFM, operators can monitor the real-time status of the fan via LED status lights. This unit can be used with hydrogen gas sensors (not included) and is suitable for promoting ventilation in confined spaces. The weather resistant fan is rated for Class I, Division 1 & 2 environments. Wiring: The EPF-LPSM-B-12-0.15HP requires red/black/black/white for AC wiring connections or red/white/white/black for DC wiring connections. Mounting Compatibility: This exhaust fan is designed for wall mounting applications facilitated by a sliding collar. The unit must fit in a 12.25" x 12.25" opening with 1.5" to 8" thickness during installation. Suggested Applications: Battery-charging rooms, paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, gas processing plants, chemical manufacturing, waste water treatment plants, offshore applications and more.
