Explosion Proof Fusible Disconnect Switch - C1D1, C2D1 - 2P, 100A, 600V - (1) 2" NPT, (1) 0.5" NPT

LARSON ELECTRONICSSKU: PL3-EPFDS-100A-2P
filler

Prix:
Prix réduit$15,026.00
 Plus de moyens de paiement

Description

Specifications / Additional Information
EPFDS-100A-3P Explosion Proof Disconnect Switch/Breaker Features/Ratings
Unit Type: Explosion Proof Fusible Disconnect Class I, Div 1&2 Groups B,C,D
Dimensions: 12" x 18" x 8" Class I, Zones 1&2 Groups llB+ H2,IIA
Weight: 130 lbs Class II Div 1&2 Groups E,F,G
Configuration: 2-Pole Class III
Amps: 100A (Maximum) NEMA 3,4,4X,7(B,C,D),9(E,F,G)
Voltage: 600V Max CENELEC/ATEX/IEC Ex
Fuses Included: No Ex d IIB + H2 T5 or T6
Materials: Copper-free Aluminum Ex tD A21 IP66
Hardware Materials: Stainless Steel
Finish: Aluminum Lacquer Paint Finish
Mounting: Wall/Surface Mount Toll Free: 1-800-369-6671
Wire Size: #14-2/0 Intl: 1-214-616-6180
Hub Sizes: (1) 2" NPT, (1) 0.5" NPT Fax: 1-903-498-3364
Hub Locations: Top/Bottom
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

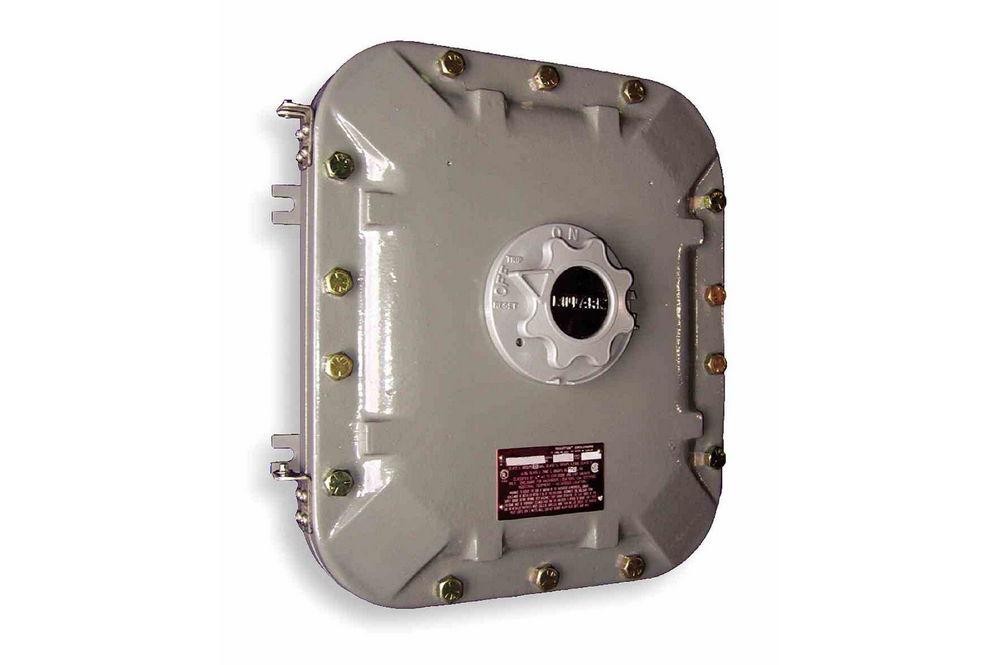

Made in the USA The Larson Electronics EPFDS-100A-3P Explosion Proof Disconnect Switch is designed for Class I, Division 1 & 2; Class II, Division 1 & 2; and Class III locations. This fusible unit features a 100-amp and 600V AC rating. Constructed of copper-free aluminum with stainless steel hardware, the ATEX-rated disconnect switch contains one, 2" NPT hub (top) and one, 0.5" NPT hub (bottom). *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPFDS-100A-3P is an explosion proof disconnect switch for flammable work sites. This fusible, 100-amp unit is rated at 600V AC. Operators are provided access to a copper-free aluminum handle, which can be padlocked in the ON or OFF position. The ATEX-rated explosion proof disconnect is constructed of copper-free aluminum, with stainless steel hardware. For durability, the unit is finished in aluminum lacquer paint and features a NEMA-rated enclosure. The EPFDS-100A-3P can be mounted on walls or surfaces. One, 2" NPT hub at the top and one, 0.5" NPT hub at the bottom are available for completing wiring connections during installation. Applications: Petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored.
