Explosion Proof Fusible Disconnect Switch - 400 Amp - C1D1, C2D1 - 3-Pole - (2) 3" & (1) 0.5" Hubs

LARSON ELECTRONICSSKU: PL3-EPFDS-400A-3P
filler

Prix:
Prix réduit$33,490.00

Description

Specifications / Additional Information
EPFDS-400A-3P Explosion Proof Disconnect Switch Features/Ratings
Weight: 425 lbs Class I Division 1 & 2 Groups C, D
Configuration: 3-Pole Class I Zones 1 & 2 Groups llB & llA
Amps: 400 (Maximum) Class II Division 1 & 2 Groups E, F, G
Voltage: 600V AC (Maximum) Class III
Fuses Included: No NEMA 3, 4, 4X, 7 (C, D), 9 (E, F, G)
Materials: Copper-free Aluminum IP66
Hardware Materials: Stainless Steel
Mounting: Surface Mount
Hub Sizes: (2) 3" NPT (Top), (1) 0.5" NPT (Bottom) Toll Free: 1-800-369-6671
Hub Qty: 3 Intl: 1-214-616-6180
Hub Locations: (2) Top, (1) Bottom Fax: 1-903-498-3364
Conduit: Operator Provided
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

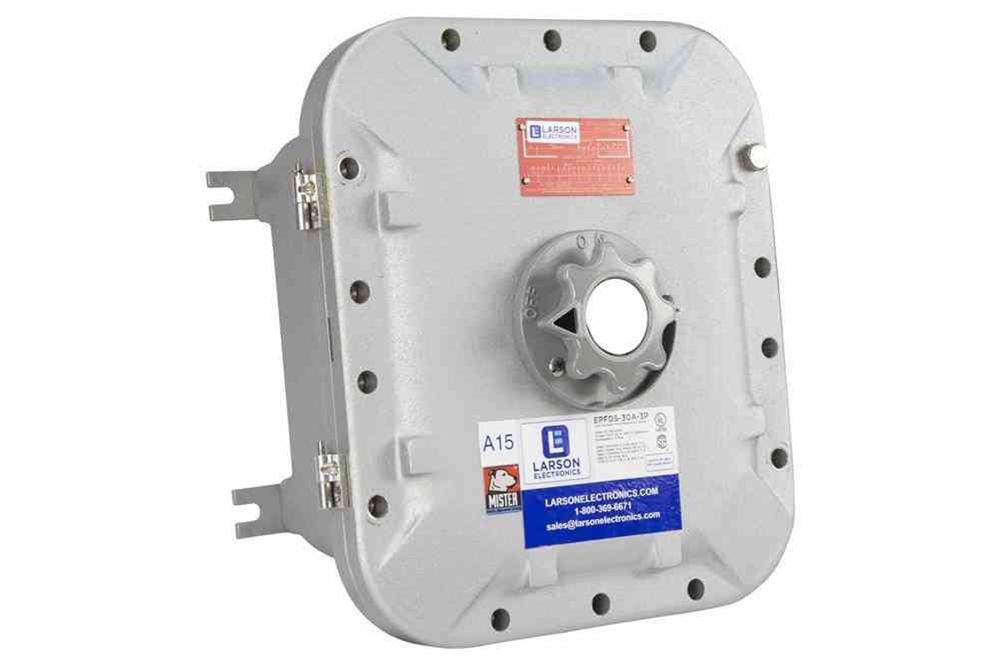

Made in the USA The Larson Electronics EPFDS-400A-3P explosion proof 400 amp fusible disconnect switch/breaker provides operators with a Class I and II, Division 1 and 2 cast aluminum enclosure for overcurrent and short circuit protection of service entrance, feeder or branch circuits, lighting, heating, appliances and motor circuits. This unit features a 3-pole configuration with a maximum rating of 600V AC. Two, 3" NPT hubs (top) and one, 0.5" NPT hub (bottom) are available for completing connections to the disconnect switch. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPFDS-400A-3P is ideal for short circuit protection or may serve as a motor circuit disconnect in hazardous locations. This 400-amp unit features a 600V maximum electrical rating. The 3-pole disconnect switch comes with two, 3" NPT hubs located at the top and one 0.5" NPT hub at the bottom with a wire size compatibility of #2-600MCM. The explosion proof disconnect switch/breaker is constructed of cast aluminum and stainless steel cover bolts. The external on/off lever can be locked into the "on or "off" position with room for up to three padlocks for superior security. A gasketed flange with O-ring (in the side bolt circle) is available for protection from the ingress of moisture. Applications: Petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored.
