Explosion Proof Fusible Disconnect Switch - 800A - C1D1, C2D1 - 3-Pole - 600V 3P - (2) 3" & (1) 0.5"
Explosion Proof Fusible Disconnect Switch - 800A - C1D1, C2D1 - 3-Pole - 600V 3P - (2) 3" & (1) 0.5"
| EPFDS-800A-3P Explosion Proof Disconnect Switch | Features/Ratings |
| Weight: 419 lbs | Class I Division 1 & 2 Groups C, D |
| Configuration: 3-Pole | Class I Zones 1 & 2 Groups llB & llA |
| Amps: 800 (Maximum) | Class II Division 1 & 2 Groups E, F, G |
| Voltage: 600V AC (Maximum) | Class III |
| Fuses Included: No | NEMA 3, 4, 4X, 7 (C, D), 9 (E, F, G) |
| Materials: Copper-free Aluminum | IP66 |
| Hardware Materials: Stainless Steel | Â |
| Dimensions: 23.88" W x 47.88" H x 14.25" D | |
| Mounting: Surface Mount | |
| Hub Sizes: (2) 3" NPT (Top), (1) 0.5" NPT (Bottom) | Toll Free:Â 1-800-369-6671 |
| Hub Qty: 3 | Intl:Â 1-214-616-6180 |
| Hub Locations: (2) Top, (1) Bottom | Fax:Â 1-903-498-3364 |
| Conduit: Operator Provided | |
| *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |

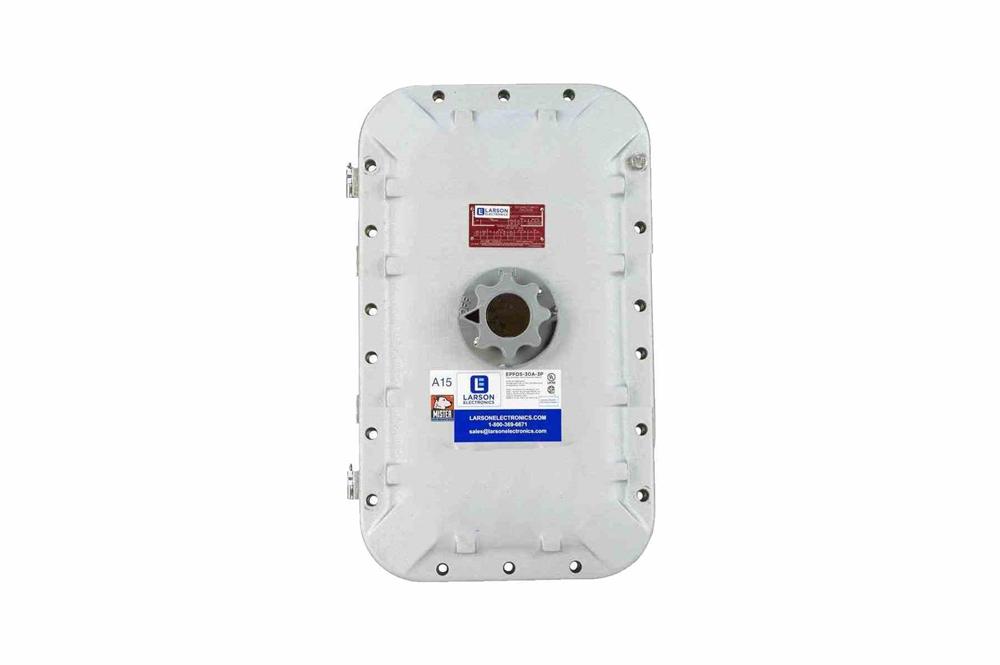

| Made in the USA The Larson Electronics EPFDS-800A-3P explosion proof 800 amp fusible disconnect switch/breaker provides operators with a Class I and II, Division 1 and 2 cast aluminum enclosure for overcurrent and short circuit protection of service entrance, feeder or branch circuits, lighting, heating, appliances and motor circuits. This unit features a 3-pole configuration with a maximum rating of 600V AC. Two, 3" NPT hubs (top) and one, 0.5" NPT hub (bottom) are available for completing connections to the disconnect switch. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPFDS-800A-3P is ideal for short circuit protection or may serve as a motor circuit disconnect in hazardous locations. This 800-amp unit features a 600V maximum electrical rating. The 3-pole disconnect switch comes with two, 3" NPT hubs located at the top and one 0.5" NPT hub at the bottom with a wire size compatibility of #2-600MCM. The explosion proof disconnect switch/breaker is constructed of cast aluminum and stainless steel cover bolts. The external on/off lever can be locked into the "on or "off" position with room for up to three padlocks for superior security. A gasketed flange with O-ring (in the side bolt circle) is available for protection from the ingress of moisture. Applications: Petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored. |
