Explosion Proof Hand Lamp -100/75/60 Watt - 120V AC - 150 Foot SOOW Cord - Class 1 & Class 2

LARSON ELECTRONICSSKU: PL3-EPL-120-150
filler

Prix:
Prix réduit$1,338.00

Description

Specifications / Additional Information
EPL-120-100 Explosion Proof Hand Lamp Approvals / Ratings
Lamp Type: Incandescent Class I, Division 1 & 2, Groups C, D (100 watt)
Dimensions: 16.5"L x 5"Dia Class II, Division 1 & 2, Groups F, G (60 or 75 watt)
Total Weight: 152 lbs Class I, Zone 1, Group IIB
Lamp Weight: 5 lbs Listed to UL 844
Voltage: 120V AC 50/60 Hz Listed to CSA 22.2 No. 137
Total Watts: 100 watts, 75 watts, or 60 watts Listed for United States and Canada
Total Lumens: 1000 (100W), 750 (75W), or 600 (60W) T3C Temperature Rated
Luminous Efficacy: 10 Lm/W
Lamp Life: 4,000 Hours
Ambient Operating Temp: -20° to +50°C
Housing Material: Aluminum & Plastic
Mounting: Handheld w/ Swivel Hook
Lens Material: Tempered Glass
Wiring: 150` 16/3 SOOW Cable
Cord Cap: 5-15, 6-15, L5-15, L6-15, BS1363, Schuko, or Pigtail
Warranty: Yes - 1 Year*
Intl: 1-903-270-1187

' Product Overview '

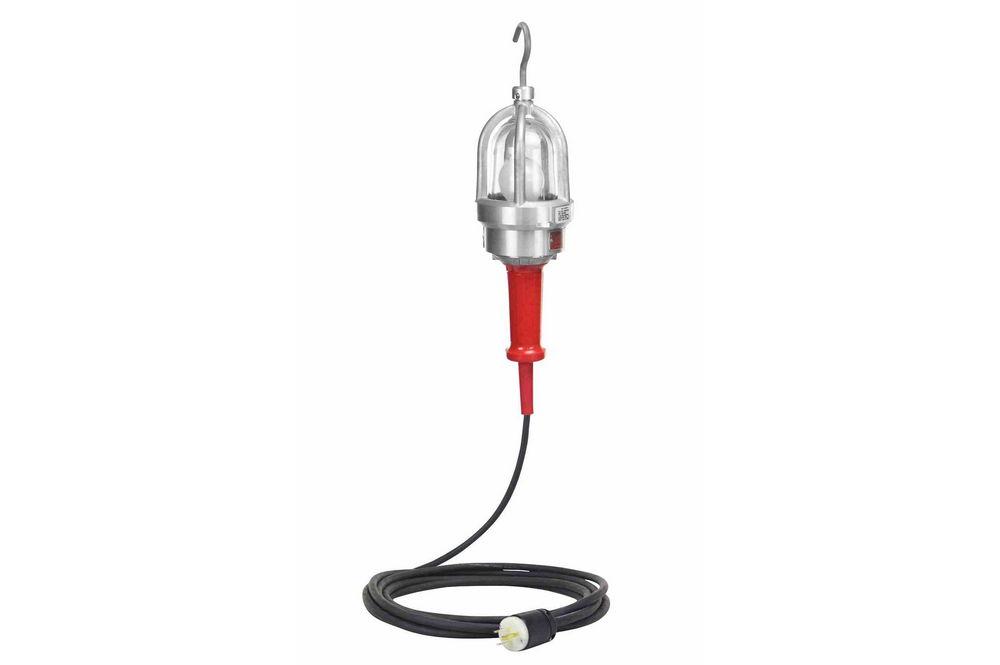

Made in the USA The Larson Electronics EPL-120-150  Explosion Proof Hand Lamp is UL Listed Class 1 Division 1 Groups C and D - and is ideal for general work activities in hazardous locations requiring explosion proof protection. This explosion proof work light from Larson Electronics comes complete with 100 feet of explosion proof cord. The EPL-120-150 drop light housing is constructed of aluminum with a rubber bumper guard designed to provide an effective lighting solution for operators requiring a versatile source of illumination. This hazardous location hand lamp is Class 1, Division 1 approved when equipped with a 100 watt bulb and Class 2 Division 1 approved when equipped with a 60 or 75 watt bulb. This explosion proof drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired.
Dark 40` Container Illuminated with EPL-120-100
Click Photos to Enlarge Click Photos to Enlarge
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated Flying Leads / Pigtail Wires
Wiring and Plug: This explosion proof drop light is equipped with 150 foot of 14/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground or a NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. This explosion proof hand light operates on standard 120 Volts. This unit is available with either a 100 watt bulb for Class 1 Division 1 operation (Gases Vapors) or a 60 or 75 watt bulb for Class 2 Division 1 operations (Dusts). Choose your bulb type below when ordering.
Made in USA Quality Lamp Features
1. Chemical and abrasive resistant cord 2. Explosion Proof. 3. 60/75/100 Watt Lamp. 4. Rugged fabricated steel and cast aluminum construction. 5. Red and Gray paint finish. 6. UL Class1 Div1 Class 2 Div1 7. 120 Volt Operation 8. 150` SOOW cable. 9. Hook for Convenient Placement. Rubber bumper Guard Non-sparking aluminum housing 120 VAC operation Aluminum lamp guard Lamp shield prevent shattering Plugs into standard outlets Swivel hook for hanging and hands free operation Explosion proof cord
