Explosion Proof Hand Lamp with Cord Reel - 100/60 Watt - 120V AC - 50 Foot SOOW Cord - Class 1 & 2

LARSON ELECTRONICSSKU: PL3-EPL-120-50-HR
filler

Prix:
Prix réduit$9,818.00

Description

Specifications / Additional Information
EPL-120-50-HR U.L./CSA Approvals
UL Listing: United States Class 1, Division 1 Groups C, D (100 watt)
Dimensions: L-16.5  "   Dia-5" Class 2, Division 1 Groups F, G (60 watt)
Total Watts: 100 or 60 watts Conforms to UL standard 781
Voltage: Stnd-120VAC CSA C22.2 No. 12 and CSAC22.2 No. 137
Mounting: Hook Reel - UL Listed E193373
Wiring: 50` SOOW Cord w/ Explosion Proof Reel Reel - Class I, Zone 1, AEx d IIB.
Lamp Type:: Incandescent Made in the USA
Operating Temp:: 160 degrees C (T3C) Class 1 & 2
Ambient Temp:: 40 degrees C maximum

This fixture is being remanufactured with cord reel under file number E193373.

' Product Overview '

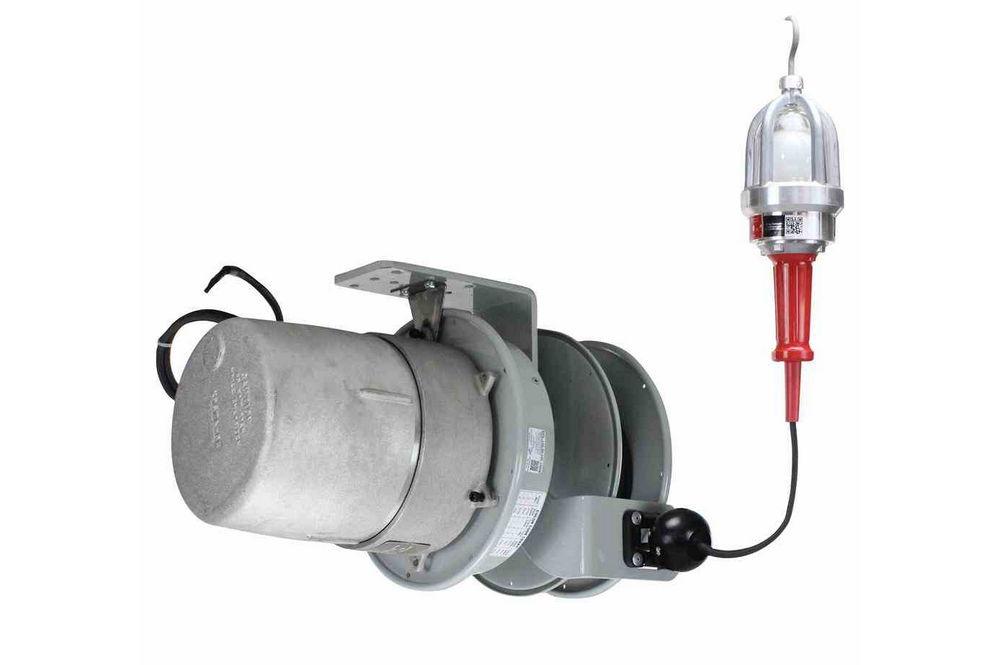

Made in Texas The Larson Electronics EPL-120-50-HR Explosion Proof Hand Lamp and Explosion Proof Cord Reel are both UL Listed Class 1 Division 1 Groups C and D and is ideal for general work activities in hazardous locations requiring explosion proof protection. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** This explosion proof work light from Larson Electronics comes complete with an explosion proof cord reel. Cord reel contains 50 feet of SOOW cord.  The EPL-120-50-HR drop light housing is constructed of aluminum with a rubber bumper guard designed to provide an effective lighting solution for operators requiring a versatile source of illumination. This hazardous location hand lamp is Class 1, Division 1 approved when equipped with a 100 watt bulb and Class 2 Division 1 approved when equipped with a 60 watt bulb. This explosion proof drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired. The non sparking reel contains this unit’s 50` of SOOW Cord for convenient cord management. This explosion proof reel and LED hand lamp can be installed and used within the hazardous location area, making it ideal for hazardous work areas where a ready source of easily managed lighting is desired.
Dark 40` Container Click Photos to Enlarge Illuminated with EPL-120-50
Click Photo to Enlarge
This 60 or 100 watt drop light is suitable for use in areas where petrochemical vapors (100 watt) and various dusts (60 watt) are present. This unit is rated Class 1, Division 1, Class 2 Division 1 and comes complete with 50’ of SOOW 16/3 AWG cord terminating within the explosion proof cord reel. This explosion proof hand light operates on standard 120 Volts. This unit is available with either a 100 watt bulb for Class 1 Division 1 operation (Gases Vapors) or a 60 watt bulb for Class 2 Division 1 operations (Dusts). Choose your bulb type below when ordering.
Made in USA Quality Lamp Features
1. Federal Spec Cord. 2. Explosion Proof. 3. 60 or 100 Watt Lamp. 4. Rugged fabricated steel and cast aluminum construction. 5. Red and Gray paint finish. 6. UL Class1 Div1 Class 2 Div1 7. 120 Volt Operation 8. 50` SOOW cable. 9. Hook for Convenient Placement. 10. Explosion Proof Cord Reel 11.Spring activated reel ratchet 12. 4-roller adjustable cable guide 13. NTRL Listing (Cord Reel) - Class I, Division 1 & 2 Group D; Class II, Group G. 14. NTRL Listing (Cord Reel) - Class I, Zone 1, AEx d IIB. Rubber bumper Guard Non-sparking aluminum housing 120 VAC operation Aluminum lamp guard Lamp shield prevent shattering Plugs into standard outlets Swivel hook for hanging and hands free operation Explosion proof cord Built to UL 508 table 36.1 / NEC Standards Indoor or outdoor use Gray epoxy finish on steel parts
