Larson 150 Watt Explosion Proof Light - Combo Scaffold Mount & Base Stand Mount - Class 1 Div 1 C&D

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

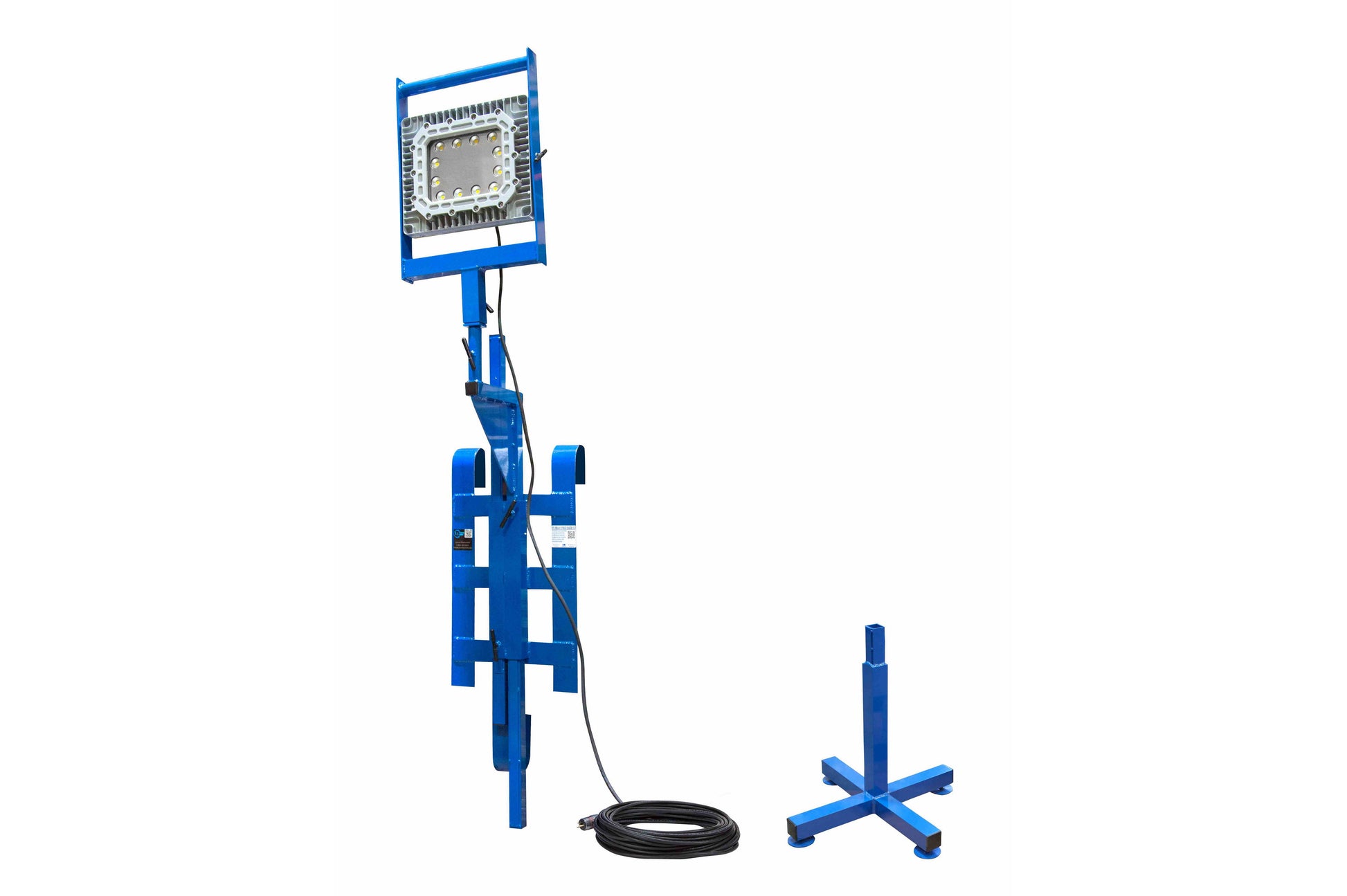

The EPL-16BSxJH-1X150LED-100 Explosion Proof LED Light from Larson Electronics is rated Class 1, Divisions 1 and 2, Groups C and D and Class 2, Divisions 1 and 2. This portable LED flood light includes a scaffold mount J-hook mount and portable pedestal mount. Both mounts incorporate a high output Cree LED light head to produce 21,000 lumens of light while drawing only 150 watts, and allow operators to easily swap the LED fixture between mounts within the field.
The EPL-16BSxJH-1X150LED-100 explosion proof LED light provides 10,000 square feet of work area coverage with 21,000 lumens of light output. This portable LED light provides two mounting systems. The scaffold mounting system consists of an aluminum rail/ladder bracket that can be adjusted from 26 inches to 43 inches to allow mounting to a wide variety of railings, scaffoldings or ladders with a slip fit mounting system for the light head assembly to attach to the scaffold mount. The portable base stand consists of a four leg aluminum base with a slip fit style attachment for the light head bracket to attach to the pedestal base stand. The LED light head produces a brilliant flood pattern of light that is ideal for illuminating enclosed areas and hazardous locations where flammable vapors, gases and dusts may be present. The two mounting platforms share one light head that is swapped between the two mounts as needed. Often referred to as simply a “tank light,” this unit is considered universal due to its ability to be passed through any conventional manhole such as those found in petrochemical containers and ship storage tanks.
The LED light head is offered in a 60° narrow flood for greater distance and a 125° wide flood that produces a brilliant flood pattern of light that is ideal for illuminating enclosed areas and further adds to this units desirability as a portable tank lighting solution. This explosion proof LED light fixture is comprised of a 22" x 14" LED light head mounted within a rectangle frame fabricated from non sparking aluminum. This frame features round tubing at the top of the frame which acts as a carrying handle, allowing operators to remove the light head frame assembly from one stand and move to another.
The scaffold mounting system features adjustable J-shaped top and bottom hooks that enables operators to securely mount the light to any ladder or scaffolding. The pedestal base stand mount provides stable temporarily lighting in various locations, as needed. Lamp adjustment is via an adjustable yolk that allows the operator to position the lamp angle through a full 90 degrees of vertical adjustment. All hardware on this unit is non sparking/corrosion resistant and the power cord is chemicals and abrasion resistant.
Transferring the unit through manholes consists of simply removing the light head from the mounting platform, passing the light head and mount through the manhole separately, and then reassembling the unit once inside. The lamp can be easily adjusted up or down 90 degrees and locked into position by simply loosening the two hand screws located on either side of the light head and re-tightening them once the desired angle is found. Included with this LED lighting system is 100 feet of SOOW cord, which combined with the 90° of tilt offered by the LED light head and dual mounting assemblies provide an effective alternative to often cumbersome explosion proof string lights.
Mounted at 10`
Mounted at 12`
Mounted at 15`
The above images display the EPL-JH22C-150LED-RT-100 illuminating a take with a 90` circumference at three different heights.
Energy Consumption Comparison
Metal Halide
LED
Wattage
400 watts
150 watts
Amp Draw @ 120V AC
3
.83 amps
1.25 amps
Amp Draw @ 220V AC
2.09 amps
0.68 amps
Amp Draw @ 240V AC
1.92 amps
0.63 amps
Amp Draw @ 277V AC
1.66 amps
0.54 amps
Amp Draw @ 12V DC
38.33
amps
12.5 amps
Amp Draw @ 24V DC
19.12 amps
6.25
amps
Lamp Life Expectancy
20,000 hours
50,000+ hours
Operation cost per year
$241.78
$78.84
Each LED light fixture has the potential to save $150.00+ per year in electricity alone, not including maintenance costs, operational downtime, reduced productivity, HVAC loads, or carbon footprint. When retrofitting an entire facility with 100s of light fixtures, the return on investment of LED over metal halide becomes evident.
The explosion proof LED light head in this unit features multiple LED drivers which helps to increase the operational life of the fixture.
With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates.
This new series of LED lamps contains
twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
5-15 Straight Blade Plug
6-20 Straight Blade Plug
This LED light produces 21,000 lumens with a color temperature of 5000K, 4000K, or 3000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. Further adding to the versatility and convenience of this explosion proof LED light are 25 peel off mylar overspray lamp protectors that ship with the unit. The protectors provide lamp protection from dirt or debris and can be removed, cleaned and replaced, lessening the need for tedious lamp cleaning or replacements. This lamp is T5 temperature rated and the LED light head retains 80% of its lumen output after 60,000 hours of use, far longer than incandescent or fluorescent lamps.
Made in USA Quality
Superior LED Benefits
1. Approved Class 1 Div1-2 Class2 Div I-2
1. 60,000+ hour lifespan.

Specifications
Listing: United States - Canada
Lamp Type: Cree LED
Dimensions: 14" x 22" Light head
Weight: 40 lbs (Base Stand) / 60 lbs (Scaffold Mount)
Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC
Total Watts: 150W
Total Lumens: 21,000
Luminous Efficacy: 140 Lm/W
Beam Lux: 8500@ 1 Meter 1250@ 3 Meters
Lamp Life: 60,000+ Hours
Color Temp: 5600K, 5000K, 4500K, 4000K, 3500K, 3000K, 2700K, or 6500K
Color Rendering Index: >75 CRI
Beam Angle: 60°, 125°, or 140°
Lighting Configuration: Flood Pattern
Power Efficiency: >95%
Power Factor: 0.992
Ambient Operating Temp Range: -50° C to +65°C
Operating Temp Rating: T5
Lamp Housing Material: Copper Free Cast Aluminum
Lamp Housing Finish: Epoxy Powder Coated - Grey
Lens Material: Hardened Borosilicate Glass
Gasket Material: Silicone
Mount Material: Non-Sparking Aluminum Tubing
Mount Finish: Powder Coated - Gloss Blue
Mounting: Aluminum Scaffold J-Hook & Base Stand Mounts
Wiring: 100` 16/3 SOOW w/ EXP Cord Cap
Cord Cap: 5-15, 5-20, or 6-20
