Low Voltage - Trunnion Mount - Explosion Proof Infrared LED Light - 850NM or 940NM
Low Voltage - Trunnion Mount - Explosion Proof Infrared LED Light - 850NM or 940NM
| EPL-21-IRLED Infrared Explosion Proof LED Light | UL and CSA Certified |
| Lamp Type: Edixeon® Infrared LED | Class 1 Division 1, Groups C and D |
| Dimensions: 10"-W 10"-H 9"-Depth | Class 1 Division 2, Group C, D |
| Total Watts: 21 | Class II, Division 1 - 2, Groups F, G |
| Voltage: 120-277V AC OR 12-24VDC | Class III |
| Amps: 1.75 (on 12 volts) | UL 595 Marine Use |
| LED Lamp Life Expectancy: 50,000+ Hours | UL 781 Portable Haz Loc Use |
| Operating Temp Range: T4 Rated | UL Listing: United States/Canada |
| Weight: 25 Lbs | |
| LED Drive %: 90% | |
|  | |
|  | |
|  |

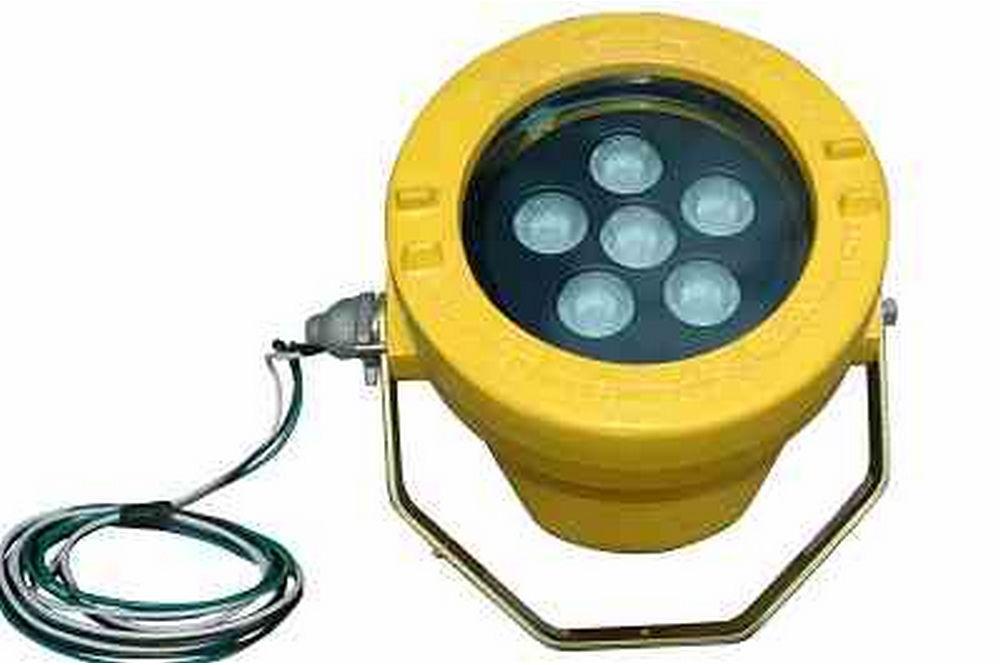

| Made in the USA The EPL-21-IRLED Low Voltage Portable Explosion Proof Infrared LED Light is UL Listed Class 1 & 2, Division 1 & 2, and is rated for use in wet and marine environments. The LED lamp used with this unit provides operators with excellent power and efficiency coupled with high versatility and ease of use. The EPL-21-IRLED Explosion Proof Infrared LED light provides an infrared flood beam approximately 160` long by 125` in width in a portable and rugged explosion proof lighting package. The LED lamp in this unit produces a powerful infrared light beam in a 40° flood pattern that is ideal for high vibration environments and covering large areas. The light from this unit is invisible to the naked eye and night vision goggles or infrared dependent devices are required to view the light output. This unit can be ordered in 850Nm configuration for use with general night vision devices and security cameras, or 940Nm configuration for use with the latest generation of military night vision equipment. An included inline transformer steps down standard 110-277VAC current to 12 Volts to provide a low voltage lighting solution for areas where low voltage operation is preferable. | ||||
|
||||
| Durability: This unit incorporates a 21 watt Infrared LED lamp assembly containing seven Edixeon® 3 Watt Infrared LEDs and a copper-free cast aluminum housing with a thermoset powder coat finish. The shell covers and sealed fittings are also made of copper-free aluminum. The lens is constructed of 3/4" thermal shock and impact resistant tempered glass and the housing contains threaded joints lubricated with non-drying lubricant. The LED lamp assembly has no filament and is thus highly resistant to damage from shocks or impacts, greatly reducing the chances of damage should the lamp be dropped or hit, unlike incandescent lamps which may break or shatter. The lamp is rated at 50,000+ hours of life, providing longer service life than typical halogen lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or “duty cycle†accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED’s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 100% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours. |
