Larson 347/480V Explosion Proof LED Light - Class 1, Class 2 Div 1 - Paint Spray Booth Approved

Larson ElectronicsSKU: PL3-EPL-24-2L-LED-480V
filler

Prix:
Prix réduit$3,957.99

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1-844-787-5483 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

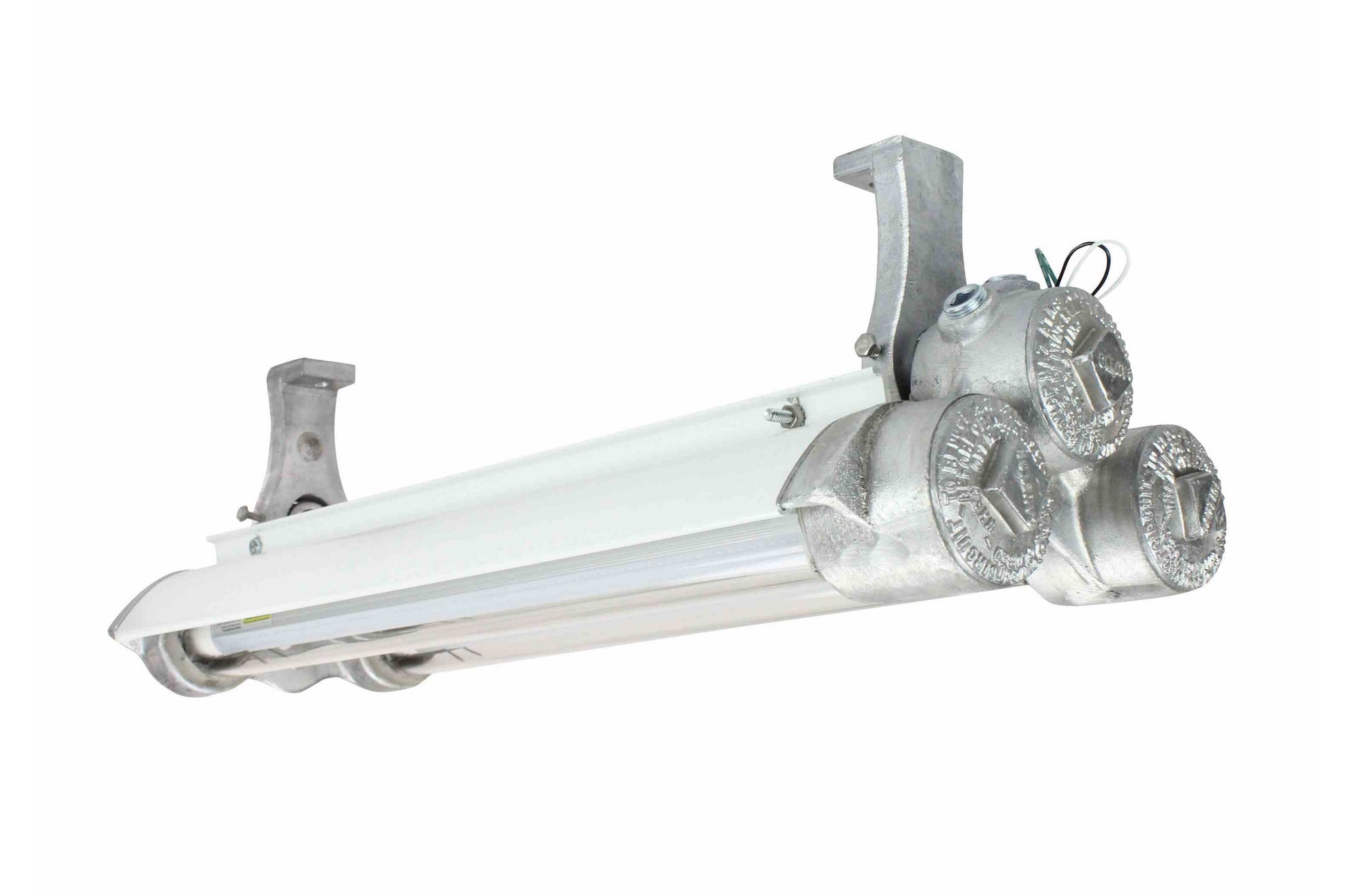

The Larson Electronics EPL-24-2L-LED-480V Explosion Proof LED Light Fixture is NRTL Listed for United States and Canada Class 1 Division 1 & 2 and Class 2 Division 1 and 2 for areas where flammable chemical/petrochemical vapors exist or have the potential to exist. This explosion proof LED light has a T6 temperature rating and carries a paint spray booth light certification, making it ideal for applications such as paint booths, oil rigs, offshore applications, petrochemical, manufacturing, chemical storage, water treatment centers, and food processing plants. This C1D1 LED light operates on 230-480V AC for high voltage applications.
This two foot, two lamp LED fixture is ideal for operators seeking a top quality explosion proof light that will reduce operating costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals. The EPL-24-2L-LED-480V is equipped with Larson Electronics’ specially designed LED T-series bulbs which produce 3,500 lumens, resulting in 30% more foot candles of illumination at 8 feet as compared to standard T8 lamps when measured with an Extech light meter. Our LED-T series bulbs are visibly brighter than standard F17/T8`s and have consistently surprised many of our customers with their unexpectedly high light output levels.
This fixture carries a T6 temperature rating and is approved for Class I Division 1, Groups C and D, Class I, Division 2, Group A, B, C and D, and Class II, Division 1 and 2, Groups E, F and G environments where flammable or combustible gases, vapors, dusts, fibers, and flying exist or stand the potential to exist. This LED linear fixture is approved for use in confined spaces.
We have eliminated the ballast box normally associated with explosion proof fluorescent fixtures which reduces overall weight and overall complexity of installation. There is no ballast in this unit and the included
LEDT8-24-V1
LED lamps have a 50,000+ hour service life, both of which result in extreme efficiency and greatly reduced maintenance costs. These fluorescent LED lamps have internal drivers, eliminating external power components. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature and a lamp service life over twice that of standard fluorescent bulbs. This second generation lamp is offered in 5600K cool white, 4500K natural white, and 3000K warm white. Our standard unit ships with 5600K unless different color temperature is specified.
Unlike the glass tube design of traditional fluorescent lamps, these LED T-Style lamps have no filaments or fragile housings to break during operation. Instead of using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. The LED assembly is mounted to the "tube" constructed from extruded aluminum, with a polycarbonate lens protecting the LEDs. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than fluorescent lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional fluorescent lighting.
The 14 watt LED lamps produce 30% more illumination than standard T8 bulbs while offering lower amp draw and increased reliability. Each lamp produces 1,750 lumens at 125 lumens per watt, for a combined 3,500 total lumen light output. An EPL-24-2L-T8 explosion proof fluorescent light, with a combined total of 34 watts, draws 0.07 amps at 480 volts AC. This LED version of the same light, with a total of 28 watts, draws only 0.05 amps at 480 volts AC. The drivers in this unit provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range.
The EPL-24-2L-LED-480V is universal voltage, not multi-tap, and operates on any voltage ranging from 180 to 528V AC 50/60Hz and 254 to 747V DC without any modifications necessary. 220V and 230V 50Hz are common in many European countries, 347V is common in Western Canada, while 480V is common in the United States and Eastern Canada. We also offer other variations of this light if needed to fit your specific application, 120-277V AC, 12-24V DC, and 0-10V dimmable models
Energy Consumption Comparison
T5HO
T8
LED
Wattage
48 watts
34 watts
28 watts
Amp Draw @ 230V AC
0.21 amps
0.15 amps
0.13 amps
Amp Draw @ 277V AC
0.18 amps
0.13 amps
0.10 amps
Amp Draw @ 347V AC
0.14 amps
0.10 amps
0.08 amps
Amp Draw @ 480V AC
0.10 amps
0.07 amps
0.05 amps
Amp Draw @ 12V DC
4 amps
2.84 amps
2.34 amps
Amp Draw @ 24V DC
2 amps
1.42 amps
1
.17 amps
Lamp Life Expectancy
20,000 hours
24,000 hours
50,000 hours
Operation cost per year
$25.23
$14.87
$14.72
Our EPL-24-2L-LED-480V LED light fixture is NRTL Listed for United States and Canada approved for use in paint spray booths. Please note, according to the NEC, using threaded rigid pipe does not require additional seal offs with this fixture. An EYM and seal off is necessary for flex conduit or other non-rigid pipe implementations.
Mounting Options:
Surface Mount (Standard)
Adjustable Surface Mount Brackets:
Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg.
Pendant Mount (Optional)
3 Conduit Positions
Suspension Mounting:
Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture features a 1/2” NPT junction box on one end, and a 1/2” NPT adjustable L-bracket on the other end of the fixture. Operators bring rigid pipe down to the threaded mounting hubs. Wiring is fed down through the rigid pipe to the junction box and tied in to the fixture’s lead wires, completing the electrical connection. The adjustable L-shape mounting bracket provides support for the opposite end of the fixture.
Suggested Applications:
Made in USA Quality
Superior LED Benefits
1. Each unit dialectically tested.
1. 50,000 hour lifespan.

Specifications
NRTL Listed for United States & Canada
United States & Canada NRTL Listed for
Dimensions: 11.25"-W x 27.5"-L x 8.5"-H
Weight: 32 Lbs.
Voltage: Universal 180 to 528V AC 50/60 Hz & 254 to 747V DC - 12-24V AC/DC and 120-277V AC 50/60Hz Optional
Total Watts: 28 watts
Total Lumens: 3,500
LED Lamp Life Expectancy: 50,000+ Hours
Luminous Efficiency: 125 Lumens per Watt
Color Temp: 5600K, 4500K, 3000K
Color Rendering Index: >80
Beam Angle: 150°
Power Efficiency: 90%
Power Factor: >0.95
Ambient Operating Temp Range: -30° C to +85°C
Operating Temp Rating: T6 Rated
Minimum Operating Temp: -30°C
Maximum Case Temp: +90°C
Housing Material: Cast Aluminum End Caps, Aluminum Reflectors - Copper Free
Lens Material: Hardened Borosilicate Glass Tubes
Gasket Material: Buna Rubber O-Rings
Mounting: Surface Standard - Pendant Optional
Wiring Hub: 1/2" NPT
Warranty: 5 Years*
