Larson Explosion Proof Paint Spray Booth LED Lighting - 2 Foot, 2 Lamp Fixture - Surface and Pendant Mount
Larson Explosion Proof Paint Spray Booth LED Lighting - 2 Foot, 2 Lamp Fixture - Surface and Pendant Mount
Made in the USA

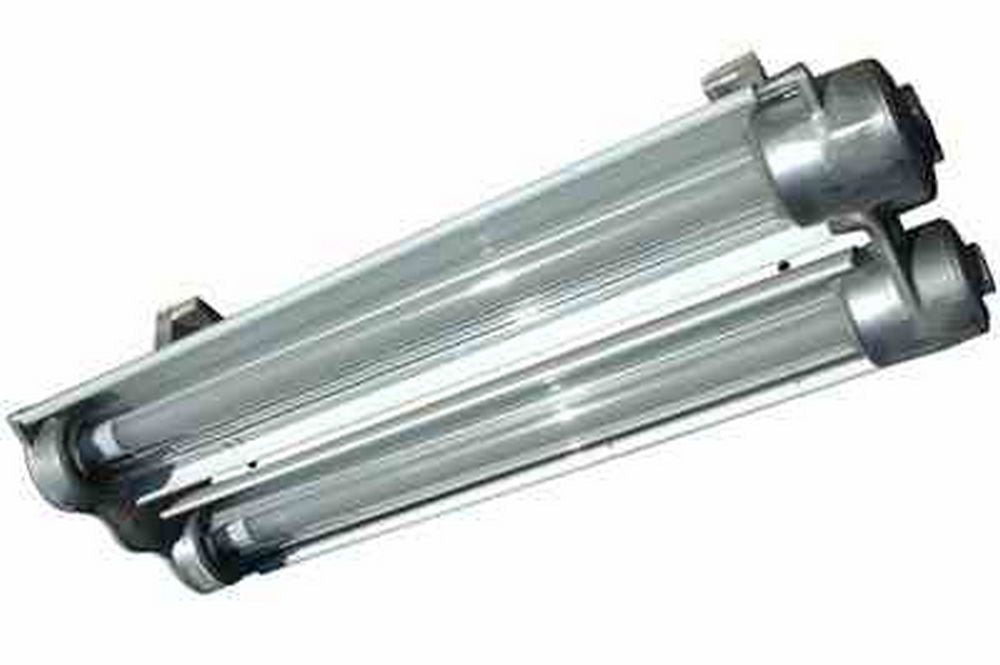

The Larson Electronics EPL-24-2L-LED-PNSF Explosion Proof LED Light Fixture is NRTL Listed for United States and Canada, Class 1 Division 1, Class II Division 1, has a T6 temperature rating and is a superior lighting solution for areas where flammable chemical/petrochemical vapors or pulverized dust exist or have the potential to exist.
This 2 foot long, 2 LED tube, explosion proof light fixture is ideal for use in locations requiring powerful yet compact hazardous location lighting that will improve overall illumination levels and light quality while reducing operating costs.
The EPL-24-2L-LED-PNSF is equipped with Larson Electronics’s specially designed LED T-series bulbs which produce 15% more illumination at 8 feet as compared to standard T8 lamps when measured with an Extech light meter. Our LED-T series bulbs are visibly brighter than standard T8s and have consistently surprised many of our customers with their unexpectedly high light output levels. This 2 LED bulb explosion proof fixture is lighter in weight, has a slimmer profile, and produces more light than traditional explosion proof fluorescent fixtures. The 2 foot long T17 LED tube design bulbs included with this unit are rated at 50,000+ hours of service life, which is nearly twice as long as standard T8 bulbs.
This fixture carries a T6 temperature rating and is Class 1 Division 1, Groups C and D, Class 1 Division 2, Group A,B,C and D, and Class II, Division 1 and 2, Groups E, F and G.
We have eliminated the ballast box normally associated with fluorescent fixtures which reduces overall weight, creates a slimmer unit profile, and helps this LED fixture maintain a T-6 temperature rating. The solid state design of the LED lamps give this fixture superior resistance to damage from vibrations and extremes in temperature as well as a lamp service life over twice that of standard T8 bulbs. The 15 watt LED lamps produce more illumination than standard T8 bulbs. The LED bulbs used in this fixture are our new second generation LED T series 15 watt T17 style lamps which produce 15% more light than standard T8 bulbs when measured from eight feet. This fixture is multi-voltage capable (not multi-tap) and works on the following voltages: 120 Volt 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ, 277 Volts 60 HZ. We also make a 12-24V DC version for low voltage applications (-LV suffix). Our EPL-24-2L-LED-PNSF LED light fixture is NRTL Listed for United States and Canada for use in paint spray booths. .
Standard Bracket Mounts:
Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top of the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg.
This fixture ships with both pendant and surface mount. It comes equipped with surface mount but is shipped with a pendant mount leg. The installer swaps out the surface mount leg for the pendant mount leg to pendant mount the fixture.
Suggested Applications:
Paint spray booths, Aircraft maintenance, Oil drilling rigs, Refineries, Solvent and cleaning areas, Gas processing plants, Chemical manufacturing, Waste treatment plants, Gas processing plants.
Made in USA Quality
Superior LED Benefits
1. Each unit dialectically tested.
1. 50,000 hour lifespan.
Specifications
NRTL Listed for United States & Canada
United States & Canada NRTL Listed forÂ
Dimensions: W-11.25"Â L-27.5"Â H-8.5 "
Weight: 32 Lbs
Total Watts: 30 watts
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz
Low Voltage (Optional): 12-24V DCÂ
LED Lamp Life Expectancy: 50,000+ Hours
Efficiency: 90 Lumens per Watt
Ambient Operating Temp Range: -
Operating Temp Rating:
Minimum Operating Temp:
Maximum Case Temp:
Beam Angle: Â 150 degrees
Color Temp: Â 5300K-
Mounting: Surface Standard - Pendant Optional
Wiring Hub: 1/2 or 3/4Â inch threaded
