Explosion Proof Fluorescent Fixture - 2 Foot, 2 Lamp - Class 1, Div. 1 - Low Voltage 9-32 VDC
Explosion Proof Fluorescent Fixture - 2 Foot, 2 Lamp - Class 1, Div. 1 - Low Voltage 9-32 VDC
| EPL-24-2L-LV Explosion Proof | Ratings |
| NRTL Listed for United States & Canada | Class 1 Division 1, Groups C and D |
| Dimensions: W-11.25" L-27.5" H-8.5 " | Class 1 Division 2, Group A,B,C,D |
| Weight: 30 Lbs | NRTL Certified to UL 595 Outdoor Marine Type (Saltwater) |
| Total Watts: 34 watts | NRTL Certified to UL 844, 924 |
| Voltage: 12V - 24V | NRTL Certified to UL 1598 Marine Type |
| Total Lumens: F17-T8/841 Bulbs 2400 | Class II Division 1- 2, Groups E,F,G |
| Lamp Life : F17-T8/841 Bulbs 24,000 Hours | Certified Canadian Standards |
| Efficiency: F17-T8/841 Bulbs 184 Lumens per Watt | Listed for Paint Spray Booths* |
| Ambient Operating Temp Range: -30 C to 70 C | California Title 24 Compliant |
| Operating Temp Rating: T6 Rated |  |
| Minimum Operating Temp: -30 C | |
| Maximum Case Temp: 90 C | |
| Beam Angle: N/A | Toll Free: 1-800-369-6671 |
| Color Temp: 4100K-STD-F17-T8/841 Bulbs | Intl: 1-214-616-6180 |
| Mounting: Bracket Standard - Pendant Optional | Fax: 1-903-498-3364 |
| Wiring Hub: 1/2 inch threaded | E-mail: |
Made in the USA
The Larson Electronics EPL-24-2L-LV 12V/24V Explosion Proof Fluorescent Light Fixture is NRTL Listed for United States and Canada Class 1 Division 1,  Class 1 Division 2, has a T6 temperature rating and is ideal for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist

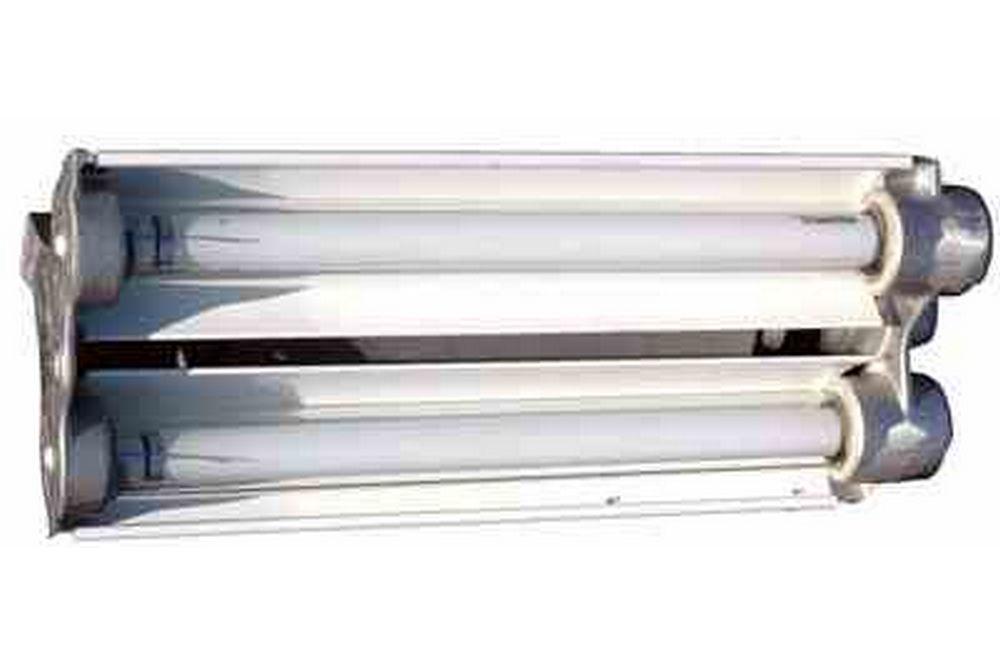

The EPL-24-2L-LV fixture is a 2 foot long, 2 lamp, Class 1 Division 1 and Class 2 Division 1 & 2 explosion proof fluorescent light which is also approved for use in paint spray booth applications and a good choice for use in applications requiring a low voltage source of illumination. This T6 temperature rated fixture comes standard with T8 bulbs, and is designed to operate on 12 or 24 volts only. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is multi-voltage capable and provides operators in hazardous locations with a reliable and affordable low voltage lighting solution that provides the best explosion proof protection available without sacrificing light quality or fixture durability.
|
||||
NOTE ON LAMPS: All hazardous location lights are shipped with bulbs. This fixture comes equipped with F17-T8/841 lamps producing 1,200 lumens per bulb, 20,000 hours of service life and a 4100 Kelvin color. Because of the fact that the fixture is low voltage, only T8 bulbs are available. The unit has an electronic ballast and only works with 12 or 24 volt lamps. Please specify your desired voltage option from the drop down menu below when ordering
Additional mounting options: Unless otherwise specified, our standard, most popular configuration is the bracket end mounting shown in the photos above. We also offer a pendant mount for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit).
Standard Bracket Mounts: Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg. The first picture shown above illustrates the ballast side bracket and also shows the access caps for changing the bulbs. The second picture shows the bracket at the opposite end of the fluorescent light.
|
