Larson Explosion Proof Low Profile Linear LED Light - C1D1 - 4 Ft - 480 VAC - 20 Ft Cord - Remote Power
Larson Explosion Proof Low Profile Linear LED Light - C1D1 - 4 Ft - 480 VAC - 20 Ft Cord - Remote Power
Sold by: Larson Electronics
Made in the USA

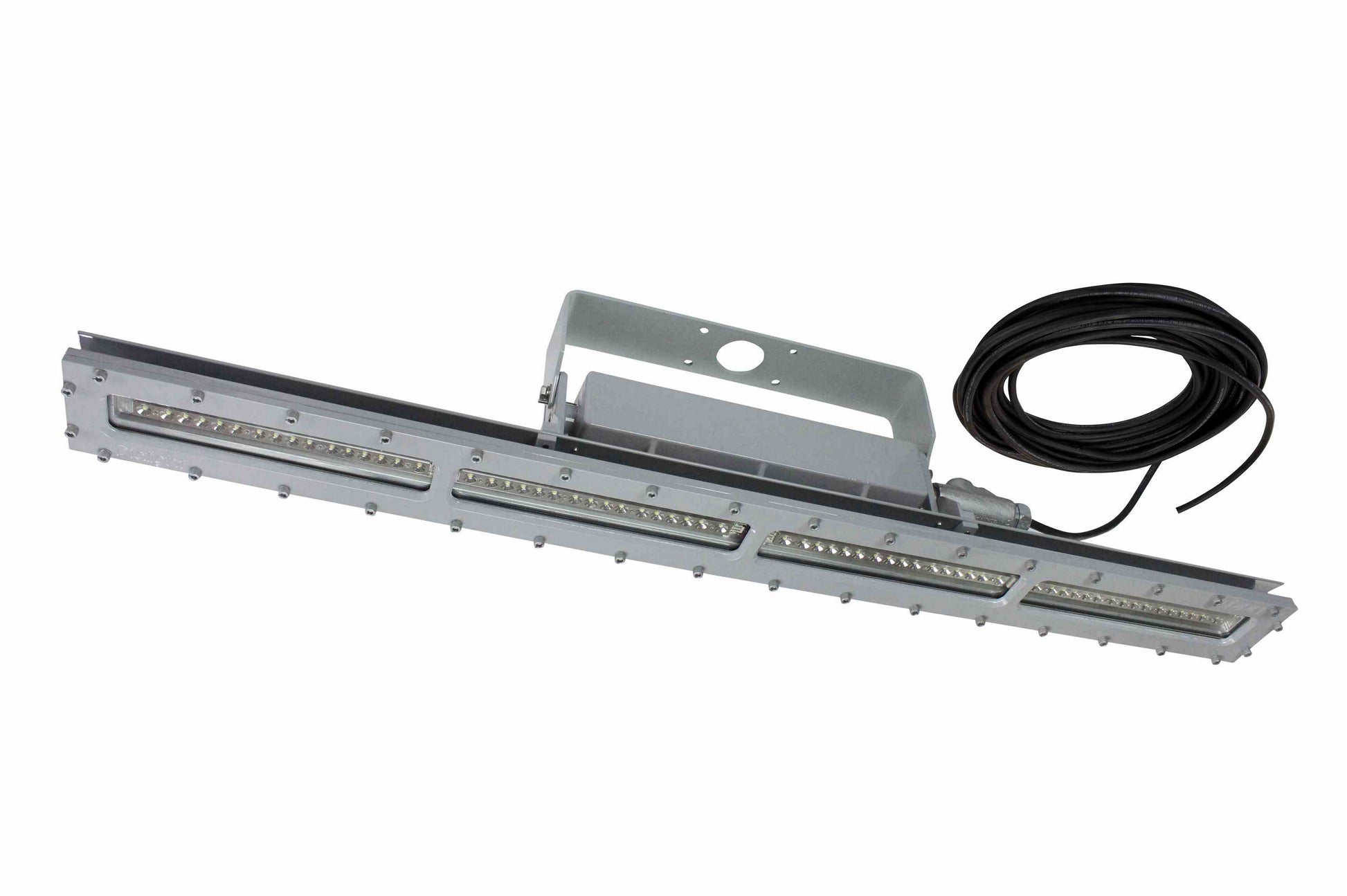

The Larson Electronics EPL-48-100LED-20C-480V.1P Explosion Proof LED Light Fixture is
is NRTL Listed for United States and Canada, and rated Class
I Divisions 1 & 2 for areas where flammable chemical/petrochemical vapors exist or have the potential to exist. This explosion proof LED light has a T4A temperature rating, is designed for low profile mounting to make the maximum use of available space and operateson 480V via a remote power supply.
The EPL-48-100LED-20C-480V.1P is comprised of solid state design LEDs, making this explosion proof led fixture highly resistant to shock and vibrations and cooler running than comparable incandescent and HID light fixtures. This 68 Watt LED fixture operates on a 480 Volt AC remote power system while producing 7,250 lumens of bright white light, producing efficiency that reduces power consumption and operating costs without compromising light output or quality.
This explosion proof linear LED fixture contains no ballast box normally associated with fluorescent fixtures, which reduces overall weight and creates a slimmer unit profile. The solid state LEDs have a 100,000+ hour service life, which results in extreme efficiency and greatly reduced maintenance costs. The solid state design of the LED lamps give this fixture superior resistance to damage from vibration, extremes in temperature and a lamp service life over twice that of standard T5 fixtures.
This light is operates with 480 VAC from a remote power supply. This power supply measures 15.32"L x 15.32"W x 11.09"H and weighs 85 lbs. The power supply has (2) 3/4" NPT hubs on it, and terminal strips on the inside for customer provided wiring. The lamp is equipped with a 20` 16/3 SOOW cord with blunt cut ends. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 7,250 lumens with a color temperature of 5000K and a color rendering index of 75, which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The EPL-48-100LED-20C-480V.1P is available in surface mounting and pendant mounting options and ideal for installation in locations where space is at a premium.
High Quality Features
Superior LED Benefits
1. Low power consumption.
1. 100,000 hour lifespan.
Specifications
Lamp Type: LED
Lamp Dimensions: L-47.46" W-4.83" H-6.15 "
Power Supply Dimensions: 15.32"L x 15.32"W x 11.09"H
Lamp Weight: 26 Lbs
Power Supply Weight: 85 Lbs
Voltage: 480VAC 50/60 hz
Total Watts: 68 Watts
Lumens: 7,250
Luminous Efficacy: 106 lm/w
LED Lamp Life Expectancy: 100,000+ Hours
Color Temp: 5000K
Beam Angle: 150°
Ambient Operating Temp Range: -40°C to 65°C
Operating Temp Rating:
Minimum Operating Temp: -40°C
Maximum Case Temp: 65°C
Mounting: Surface Standard - Pendant Optional
Lamp Wiring Hub: 20` 16/3 SOOW Cord w/ Blunt Cut End
Power Supply Wiring: (2) 3/4" NPT Hubs
