Larson 36W Surface Mount Explosion Proof Fluorescent Light Fixture - Paint Booth Rated - 3350 Lumens
Larson 36W Surface Mount Explosion Proof Fluorescent Light Fixture - Paint Booth Rated - 3350 Lumens
Made in the USA

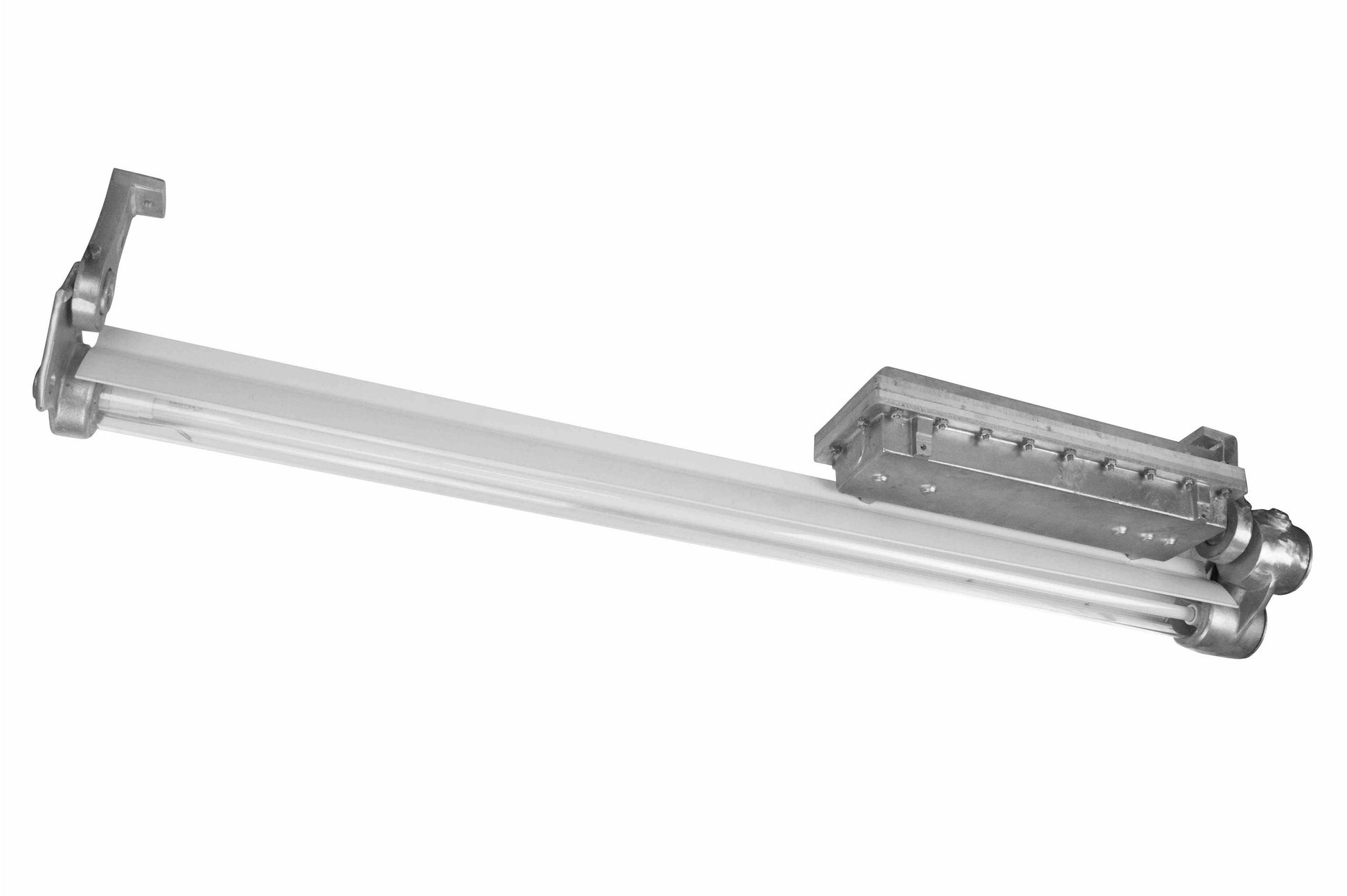

The Larson Electronics EPL-48-1L-INTL-36WT8 Explosion Proof Fluorescent Light Fixture is NRTL Listed for United States and Canada, and rated Class 1 Division 1 and Class 1 Division 2 for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist. The unit carries a T6 temperature rating and is also approved for paint spray booths.
The EPL-48-1L-INTL-36WT8 fixture is a 4 foot long lamp, Class 1 Division 1 and Class 2 Division 1 & 2 explosion proof fluorescent light which is also approved for use in paint spray booth applications. This T6 temperature rated fixture comes standard with one 18 watt T8 fluorescent bulb. The lamp is protected by a heat and impact resistant Pyrex tube and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture is multi-voltage capable and is available in a variety of lamp options. The EPL-48-1L-INTL-36WT8 provides operators in hazardous locations with a reliable and affordable lighting solution that provides the best explosion proof protection available without sacrificing light quality or fixture durability.
T8
LED
Wattage
18 watts
24 watts
Amp Draw @ 120V AC
0.15 amps
0.2 amps
Amp Draw @ 277V AC
0.06 amps
0.09 amps
Amp Draw @ 12V DC
1.5 amps
2 amps
Amp Draw @ 24V DC
.75 amps
1 amp
Lamp Life Expectancy
24,000 hours
50,000 hours
Color Temperature
4100K
5300K
Operation cost per year
$5.78
$7.71
Mounting Options:
Unless otherwise specified, our standard, most popular configuration is the bracket end mounting shown enlarged below. We also offer a pendant mount for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit). Additional mounting configurations can be customized to meet the requirements on the application. Please contact us for special mounting configurations.
Adjustable Surface Mount Brackets:
Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg.
Suspension Mounting:
Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture features a 1/2" NPT junction box on one end, and a 1/2" NPT adjustable L-bracket on the other end of the fixture. Operators bring rigid pipe down to the threaded mounting hubs. Wiring is fed down through the rigid pipe to the junction box and tied in to the fixture`s lead wires, completing the electrical connection. The adjustable L-shape mounting bracket provides support for the opposite end of the fixture.
Applications:
Industrial facilities, hazardous locations, offshore refineries, marine locations, work space lighting, garage and warehouse lighting, indoor/outdoor spaces, ship yards, docks and anywhere a rugged and dependable fixture with high output and efficiency is needed.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Made in USA Quality
Lamp Options
1. Each unit dialectically tested.
F36-T8/841
- 18 watts, 3350 lumens, 24,000 hours life, 4100 Kelvin color (Suffix -T8)
Specifications
Dimensions: W-11.25" x L-52" x H-8.5 "
Weight: 65 Lbs
Voltage: Universal 120-277VAC 50/60 Hz
Total Watts: 18W
Total Lumens: 3,350
Lamp Life Expectancy (Hrs): 24,000 hours
Luminous Efficiency (Lm/W): 186.1 Lm/w
Color Temp: 4100K
Beam Angle: 150°
Ambient Operating Temp Range: -20°C to +70°C
Operating Temp Rating: T6 Rated
Minimum Operating Temp: -30°C
Maximum Case Temp: +90°C
Housing Material: Cast Aluminum End Caps, Aluminum Reflectors - Copper Free
Lens Material: Hardened Borosilicate Glass Tubes
Gasket Material: Buna Rubber O-Rings
Mounting: Surface Standard - Pendant Optional
Wiring Hub: 1/2" NPT
Warranty: 5 Years*
