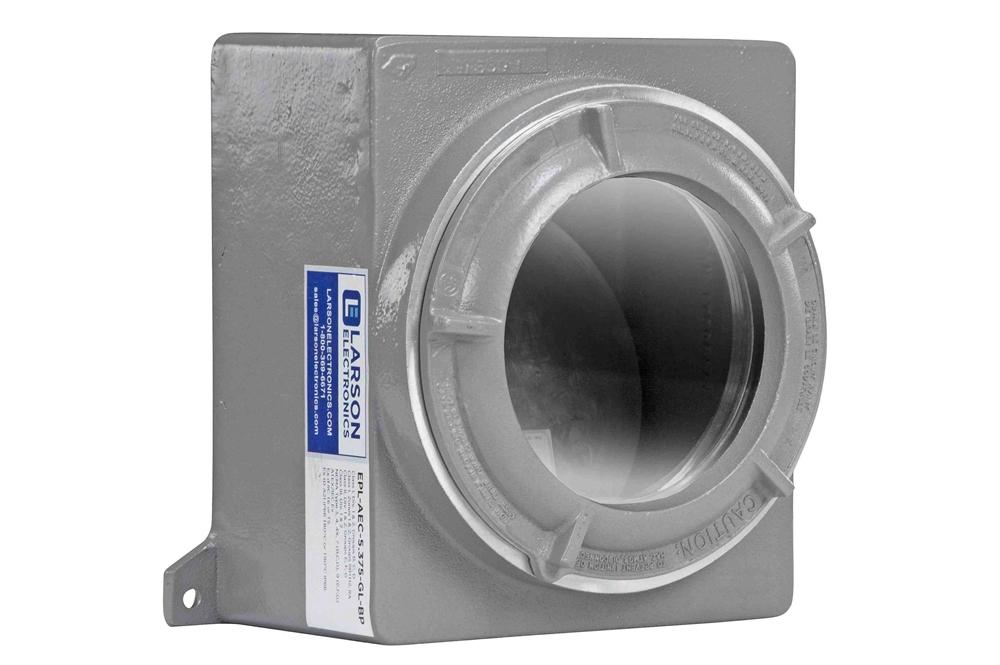

Explosion Proof Device Box Instrument Enclosure w/ Back Plate - Class I, II, III - ATEX/IECEX - 7.75" Lens - (2) Hubs

LARSON ELECTRONICSSKU: PL3-EPL-AEC-9.63-GL-BP-1X0.75S-1X1S
filler

Prix:
Prix réduit$13,246.00

Description

Specifications / Additional Information
EPL-AEC-9.63-GL-BP-1X0.75S-1X1S Explosion Proof Device Box Instrument Enclosure - Class I, II, III Divisions 1 & 2 Ratings/Approvals
Listing: NRTL Listed for United States, Canada, Europe, Asia Class I, Divisions 1 & 2, Groups B, C, D
Device Type: Explosion Proof Instrument Enclosure Class I, Zones 1 & 2, Groups IIB+H2, IIA
External Dimensions: 12.18" x 11" x 11" Class II, Divisions 1 & 2, Groups E, F, G
Internal Dimensions: 9.56" x 10.63" x 8.43" Class III, Divisions 1 & 2
Internal Volume: 940 cu. in. NEMA Type 3, 4 & 4X
Lens Opening: 7.75" ATEX/IEC Ex Rated
Weight: -
Back Plate: Internal
Material: Copper-free Aluminum
Enclosure Finish: Electrostatically Applied Powder Epoxy/Polyester Finish
Lens Material: Tempered Soda Lime Glass Special Orders - Requirements
Mounting: Surface
Design: Single Box w/ Lens Cover
Maximum Conduit Size: 4"
Hubs: (1) 3/4" NPT and (1) 1" NPT @ South Side
Color: Gray
' Product Overview '
The EPL-AEC-9.63-GL-BP-1X0.75S-1X1S from Larson Electronics is an Explosion Proof Device Box Instrument Enclosure that houses compact instruments or devices used in hazardous locations, confined spaces and industrial facilities. This unit contains a 7.75" lens opening and is constructed of copper-free aluminum. The explosion proof enclosure may be used to comply with domestic and international code requirements, while providing protection for operators and nearby workers. The EPL-AEC-9.63-GL-BP-1X0.75S-1X1S offers protection from explosive hazards and ignitions, dust, harsh weather and rough treatment (tampering). This unit is equipped with a 7.75" lens opening, 940 cubic inches of volume and an internal back plate. Constructed of copper-free aluminum, the ATEX/IECEX-rated enclosure is protected by a tempered soda lime glass lens. Cast mounting lugs are available for mounting. The explosion proof device box is compatible with conduit sizes up to 4". One 1" NPT and one 3/4" NPT hubs are available at the south side of the unit. This unit is rated NEMA Type 3, 4 & 4X and designed to withstand the rigors of demanding environmental and operating conditions while remaining robust and easy to use. Applications: Flow measurement devices, temperature monitors, two-wire transmitters, gas detectors, Ph analyzers, pressure gauges, level detectors, H2S monitors, transducers, pressure switches and other compact industrial instruments/devices.
