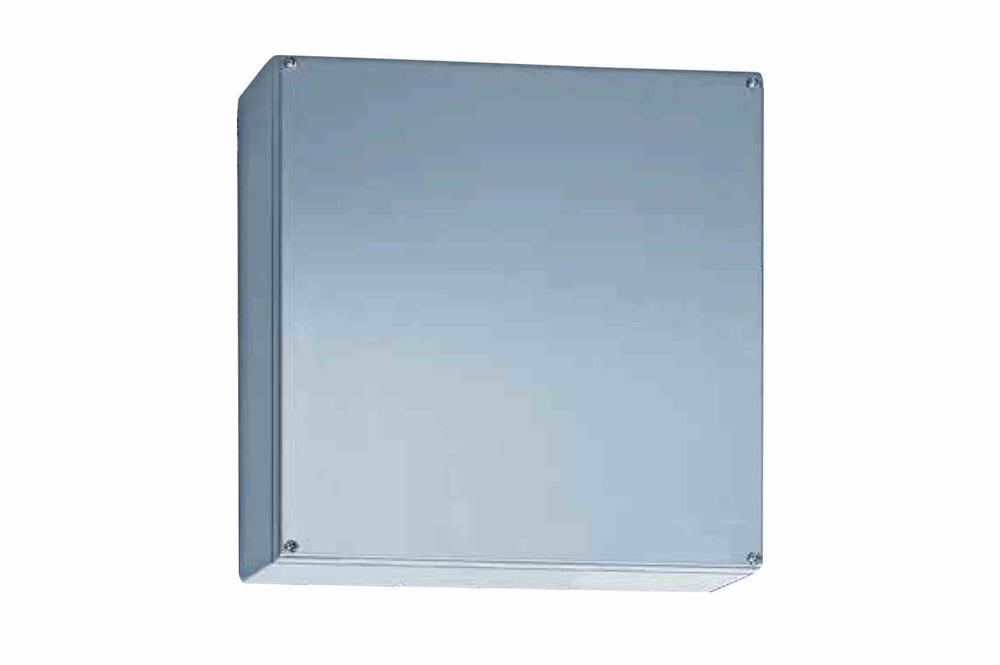

Stainless Steel Hazardous Location Junction Box - C1D2 ATEX/IECEx Rated - 20" x 16" x 8" - IP66/Type 4X

LARSON ELECTRONICSSKU: PL3-EPL-AEH-SS-20.16.8-N4X
filler

Prix:
Prix réduit$4,926.00

Description

Specifications / Additional Information
EPL-AEH-SS-20.16.8-N4X Explosion Proof Junction Box Ratings
Listing: ATEX/IECEx Rated Class I, Division 2, Groups A,B,C,D
Box Dimensions: 20" x 16" x 8" Class I, Zones 1 & 2, Groups IIA,IIB,IIC
Mounting Lug Dimensions: 14.69" x 17.63" Class II, Division 2, Groups E,F,G
Weight: 31 lbs Class III, Divisions 1 & 2
Max Power: 34W ATEX/IECEx Rated
Ground/Earthing: Studs @ Cover and Through Wall Ex e IIC Gb, Ex i IIC Gb
Body and Cover Material: 316 Stainless Steel (Brush Finished) Ex tb IIIC Db IP66
Cover Type: Hinge/Latched Ex tb / Zone 21&22 AEx tb IIIC
Latch: Quarter Turn 316 Stainless Steel  T80C /T100C/T130C Db IP66
Gasket: One Piece High Temperature Closed Cell Silicone NEMA Type 3, 4 & 4X
Mounting: Wall/Surface Mount via Bi-directional Mounting Lugs
Maximum Conduit Size: 4" NPT






' Product Overview '
The Larson Electronics EPL-AEH-SS-20.16.8-N4X Stainless Steel Explosion Proof Junction Box provides operators with a rugged enclosure that is designed to hold and protect equipment in flammable environments. This explosion proof enclosure is ideal for ATEX/IECEx rated sites and indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEH-SS-20.16.8-N4X explosion proof enclosure is made of 316 stainless steel and features Type 4X and IP66 protection ratings. Equipped with a hinged and latched cover, this ATEX/IECEx rated junction box measures 20" x 16" x 8". Ground/earthing studs are available on cover and through the wall of the unit. Operators are provided access to bi-directional mounting lugs at the back of the stainless steel box for wall or surface mounting installations. This unit accommodates conduit sizes up to 4" NPT (maximum). Applications: Offshore rigs, sewage and wastewater treatment plants, coal plants, gas facilities and any other hazardous location where an explosion proof enclosure is needed.
