Explosion Proof LED Light - Non-Spark Aluminum Base - Single 150 Watt Led Light - 20 Meter 16/3 Cord

LARSON ELECTRONICSSKU: PL3-EPL-BS-161M-20M
filler

Prix:
Prix réduit$4,440.00
 Plus de moyens de paiement

Description

Specifications / Additional Information
Specifications / Additional Information
EPL-BS-161M-20M Explosion Proof LED Light Quick Summary
Lamp Type: LED Listed for United States and Canada
Dimensions: 18.09"L x 15.9"W x 23.75"H Class I, Divisions 1 & 2, Groups C and D
Total Weight: 68 Lbs Class II, Divisions 1 & 2, Groups E,F,G
Fixture Weight: 45 Lbs Class II, Divisions 1 & 2, Groups E,F,G
Voltage:  100-277V AC 50/60Hz or 11-25V AC/DC Class II, Divisions 1 & 2, Groups E,F,G
Total Watts:  150 watts Certified to UL 1598
Total Lumens:  17,500 Certified to C22.2 No. 137 Rev 2009
Luminous Efficacy: 116.67 Lm/W Certified to C22.2 No. 250.0
LED Lamp Life Expectancy:  60,000 Hours T5 Temperature Rating
Color Temp:  5000K Paint Spray Booth Approved
Color Rendering Index:  >75 CRI IEC 60529 Tested
Beam Angle: 60° or 125° IP67 Rated Waterproof
Lighting Configuration: Flood Pattern LEL Approved
Power Efficiency: >95% Multiple Driver Banks
Power Factor:  0.992 80% Lumen Retention after 60,000 Hours
Amperage: 2.5A @ 120V, 1.26 @ 240V, 1.08 @ 277V Factory Sealed Light Fixture
Ambient Operating Temp Range:-50°C to +65°C 20 Meters 16/3 SOOW Cable
Operating Temp Rating: T5 Direct Replacement for 400W Portable Lights
Lamp Housing Material: Copper Free Cast Aluminum
Stand Material: Non-Sparking Aluminum
Lens Material: Hardened Borosilicate Glass
Gasket Material: Silicone
Mounting: Triangular Shaped Aluminum Base Stand
Finish: Powder Coated - Gloss Blue
Wiring: 20 Meters (66`) 16/3 SOOW Cord Explosion Proof Cord Cap
Cord Cap: 5-15 Straight (120V), 5-20 Twist (120V), or 6-20 Twist (250V) Explosion Proof Plug
Warranty: Yes - 5 Year - 10 Year Warranty Available

' Product Overview '

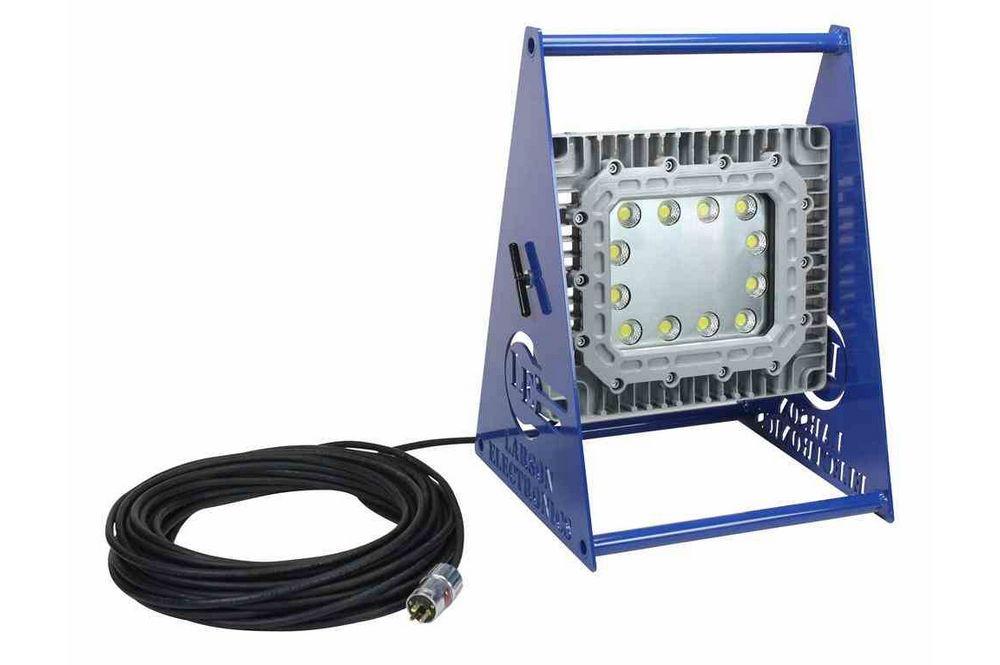

Made in Texas The EPL-BS-161M-20M Explosion Proof LED Light from Larson Electronics is rated Class I Division 1-2 Groups C & D and Class II Division 1-2 and uses a 16 inch LED light head to produce 17,500 lumens of light while drawing only 150 watts. The EPL-BS-161M-20M explosion proof LED light provides 9,000 square feet of work area coverage with 17,500 lumens of light output. This portable LED light is mounted to an A-frame style aluminum base and has an adjustable LED light head measuring 16 inches wide by 14 inches high. The LED light head on this unit produces a brilliant flood pattern of light that is ideal for illuminating enclosed areas and hazardous locations where flammable vapors, gases and dusts may be present. This explosion proof LED light fixture is comprised of a 16 inch wide square LED light head mounted within a portable base stand fabricated from non sparking aluminum with a convenient carrying handle built into the top of the stand. The aluminum A-frame is powder coated with glossy blue finish for corrosion resistances and aesthetics. The lamp can be easily adjusted up or down 90 degrees and locked into position by simply loosening the two hand screws located on either side of the light head and retightening them once the desired angle is found.
Click Photo to Enlarge
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. LED Drivers: Even in LED fixtures, heat is the single largest factor in premature light failure and color shifting. As a result, many manufacturers reduce the output of their LEDs in order to reduce the amount of heat produced. Rather than lower light output or quality, Larson Electronics addresses this problem with the addition of electronic LED drivers. These internal drivers provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. This not only reduces the energy dissipation, effectively lowering the operating temperature of the fixture, but also prevents AC over-voltage and short circuit loading making this fixture virtually maintenance free. Because the electronic drivers allow the EPL-BS-161M-20M to run at a cooler internal temperature and regulates the electrical current, energy efficiency and LED service hours are maximized while at the same time reducing operating costs and downtime incurred from the frequent servicing intervals required with other hotter running lights. The explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. With the EPL-BS-161M-20M from Larson Electronics, each LED fixture contains six individual LED boards configured in a series of banks. Each bank contains two LED on a single board with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate.
Click Photos to Enlarge
60° Beam Angle 125° Beam Angle Plug 140° Beam Angle Plug
Beam Angles: When used as a portable lighting solution, the varying beam angles are each individually ideal for several environments. The 60° beam provides the most intense beam of the three options. It is perfect for narrow, confined spaces and is ideally suited for tank cleaning purposes. It offers focused light to provide ample illumination to tight work spaces and other environments. The 125° beam offers a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination. The 140° beam offers a very wide lighting pattern and is ideal for situations where lighting distance is not a concern, but illumination of a wider area and even light distribution is. The 140° beam is great for situations that call for working in close proximity to lights such as in a paint booth. This explosion proof LED flood light produces a total of 17,500 lumens with a color temperature of 5000K standard and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. We also offer a 3000K warm white and 4500K natural white color temperature options (longer lead times may apply for non-standard temperatures). This lamp uses Cree LED units that have been chosen for their high lumen per watt ratio and extreme longevity. These Cree LEDs generate a robust 86.67 lumens per watt effective lumen output and have a 80% lumen retention at 60,000 hours, giving them better efficiency and operational life than traditional light sources. Field Serviceability: This explosion proof LED light fixture is field serviceable. All major internal components can be purchased from Larson Electronics and installed by a licensed electrician with basic tools. With most explosion proof fixtures, the fixture must be returned to the manufacturer for repair work, which presents downtime and long turn around times for repair work. Larson Electronics addresses this issue with the EPL-BS-161M-20M series with field serviceability, allowing operators to perform service work without having to return the fixture to the manufacturer in the event of damage or failure.
Energy Consumption Comparison
Metal Halide LED
Wattage 400 watts 150 watts
Amp Draw @ 120V AC 3.83 amps 1.25 amps
Amp Draw @ 220V AC 2.09 amps 0.68 amps
Amp Draw @ 240V AC 1.92 amps 0.63 amps
Amp Draw @ 277V AC 1.66 amps 0.54 amps
Amp Draw @ 12V DC 38.33amps 12.5 amps
Amp Draw @ 24V DC 19.12 amps 6.25amps
Lamp Life Expectancy 20,000 hours 50,000+ hours
Operation cost per year (12hs/day @ 12c/kWh) $241.78 $78.84
Each LED light fixture has the potential to save $150.00+ per year in electricity alone, not including maintenance costs, operational downtime, reduced productivity, HVAC loads, or carbon footprint. When retrofitting an entire facility with 100s of light fixtures, the return on investment of LED over metal halide becomes evident.
Voltage: This light is universal voltage capable and can be operated with 100-277V AC, 50/60 Hz without modifications to the fixture, and a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 volts for rigs and vision systems. 18-48V AC/DC voltages are available for network systems and marine vessels. We also offer an additional 347-480V high voltage and 0-10V dimmable versions of this explosion proof LED light fixture.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof tower mounted flood lighting system is equipped with 20 meters (66`) of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. Suggested Applications: This pedestal base stand explosion proof light is ideal for any application Class I & II, Division 1 & 2 explosion proof or hazardous location environment requiring durable and quality lighting in a portable form factor. Applications include but not limited to aircraft maintenance, alcohol processing, aerospace, chemical manufacturing, coke processing, cold storage, compressed natural gas (CNG) facilities, cranes, cryogenics, distilleries, food processing (with food grade gasketed polycarbonate lens: ), fuel storage, gas processing plants, grain processing, laboratories, liquefied natural gas (LNG) facilities, liquid propane gas (LPG), manufacturing, marine vessels, methane production, mining, offshore, oil drilling rigs, oil refineries, paint spray booths, paper processing, petrochemical, pharmaceuticals, power plants, production refineries, sand blast cabinets, sewage and septic tanks, shipyards, solvent and cleaning areas, storage facilities, tank farms, tankers, textile, washdown areas, waste treatment plants, and woodworking. .
Made in USA Quality Superior LED Benefits
1. Approved Class I Div 1-2 Class II Div I-2 2. Led lamp head requires no lamping. 3. Durable Base Mount constructed of copper free aluminum. 4. No ballast box. No ballast to replace. 5. Extreme long life LEDs reduce maintenance and replacement costs. 6. Adjustable LED light head. 7. 5000K Color Temperature and Color Rendering Index of 75 8. 17,500 Lumens produced from only 150 watts. 9. Mercury free shock proof LED lamp light head. 1. 60,000+ hour lifespan. 2. Can SAVE 50% or more on energy. 3. 100% recyclable. 4. No toxins-lead, mercury. 5. No UV light, infrared radiation or CO2 emissions. 6. Bright, even light maintains consistent color over time. 7. Instant on/off - No flickering, delays or buzzing. 8. Very good color rendering. 9. Vibration/impact resistant. 10. Significantly cooler operation. 11. Less frequent outages, higher output improves workplace safety.
