Description
PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please email us at info@purilite.ca to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

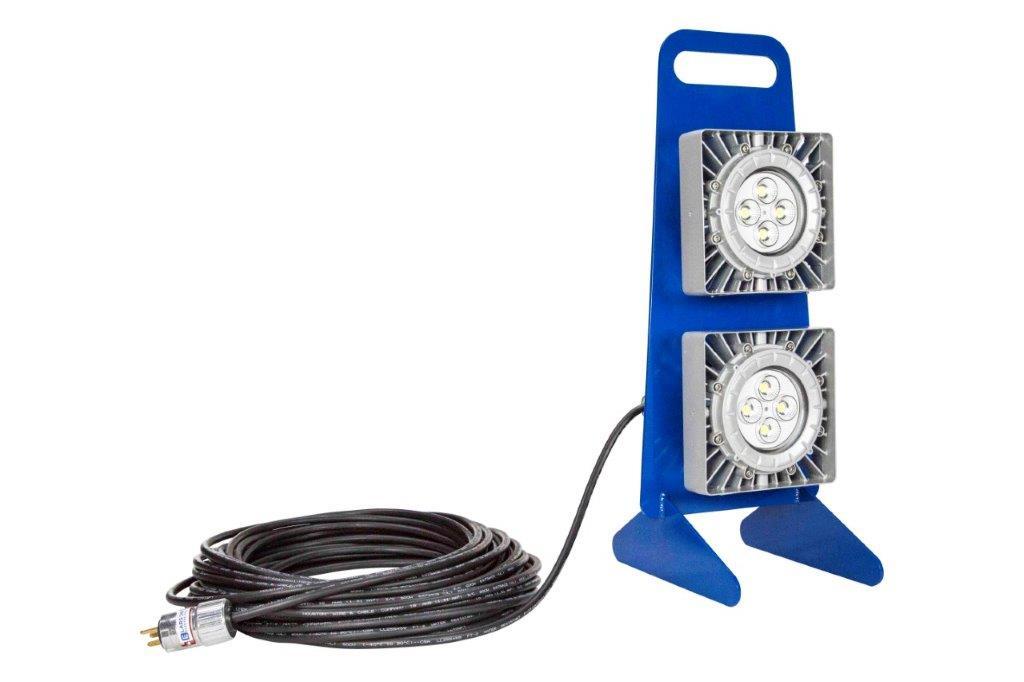

The EPL-BS-2X70LED-100 Portable Explosion Proof LED Light from Larson Electronics is a superior lighting solution for flammable environments and outdoor locations. Equipped with two 50-watt LED light heads, this unit produces 11,600 lumens of light during use. The explosion proof light is constructed of non-sparking aluminum and comes with 100 feet of 16/3 SOOW cord with an explosion proof straight blade plug.
The EPL-BS-2X70LED-100 explosion proof LED light provides 9,000 square feet of work area coverage with 11,600 lumens of light output. It is available in 360° and 180° beam spreads. This portable LED light consists of two LED lamps and is mounted to a handheld aluminum frame with an explosion proof on/off switch on the back of the frame. The LED light heads on this unit produce a brilliant flood pattern of light that is ideal for illuminating enclosed areas and hazardous locations where flammable vapors, gases and dusts may be present.
This explosion proof LED light fixture is comprised of two, 50-watt LED light heads (100 watts total) mounted atop a base stand fabricated from non-sparking aluminum with a convenient carrying handle built into the top of the stand. The aluminum frame features an explosion proof switch built into the cord wrap on the back of the unit. Included with this LED light is 100 feet of 16/3 SOOW cord terminating in a 1523 explosion proof straight blade plug.
This light is universal voltage capable and can be operated with 100-277V AC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 volts. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
This LED light produces 11,600 lumens with a color temperature of 5600K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries.
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
LED Drivers:
Even in LED fixtures, heat is the single largest factor in premature light failure and color shifting. As a result, many manufacturers reduce the output of their LEDs in order to reduce the amount of heat produced. Rather than lower light output or quality, Larson Electronics addresses this problem with the addition of an electronic LED driver. This internal driver provides the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. This not only reduces the energy dissipation, effectively lowering the operating temperature of the fixture, but also prevents AC over-voltage and short circuit loading making this fixture virtually maintenance free. Because the electronic driver allows the EPL-BS-2X70LED-100 to run at a cooler internal temperature and regulates the electrical current, energy efficiency and LED service hours are maximized while at the same time reducing operating costs and downtime incurred from the frequent servicing intervals required with other hotter running lights.
Field Serviceability:
This explosion proof LED light fixture is field serviceable. All major internal components can be purchased from Larson Electronics and installed by a licensed electrician with basic tools. With most explosion proof fixtures, the fixture must be returned to the manufacturer for repair work, which presents downtime and long turn around times for repair work. Larson Electronics addresses this issue with the EPL-BS-70LED series with field serviceability, allowing operators to perform service work without having to return the fixture to the manufacturer in the event of damage or failure.
5-15 Straight Blade Plug
5-20 Straight Blade Plug
6-20 Straight Blade Plug
Wiring/Plug:
This unit is equipped with 100 feet of 16/3 chemical and abrasion resistant SOOW line-in cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets.
Note on Beam Spread:
The 360° beam spread is the standard directional output and typical for flood lights. The 180° shines in only one direction. This is good for down lighting, wall packs and for not blinding oncoming traffic or pedestrians.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Listing: United States & Canada
Dimensions: 22.74"-H x 10.35"-W x 10.25"-D
Weight: 40 Lbs
Total Watts: 100W
Voltage: Universal 120-277V AC 50/60 Hz
Lumens: 11,600
LED Lamp Life Expectancy: 60,000 Hours
Color Temp: 6000K
Beam Spread: 360° or 180°
Operating Temp Range: T5 Rated -40C to 65C
Mounting: Aluminum Base Stand
Wiring: 100` 16/3 SOOW Cord w/ Explosion Proof Straight Blade Plug and Inline Explosion Proof Switch
EXP Cord Cap Options: 5-15, 5-20 or 6-20
The EPL-BS-2X70LED-100 Portable Explosion Proof LED Light from Larson Electronics is a superior lighting solution for flammable environments and outdoor locations. Equipped with two 50-watt LED light heads, this unit produces 11,600 lumens of light during use. The explosion proof light is constructed of non-sparking aluminum and comes with 100 feet of 16/3 SOOW cord with an explosion proof straight blade plug.
The EPL-BS-2X70LED-100 explosion proof LED light provides 9,000 square feet of work area coverage with 11,600 lumens of light output. It is available in 360° and 180° beam spreads. This portable LED light consists of two LED lamps and is mounted to a handheld aluminum frame with an explosion proof on/off switch on the back of the frame. The LED light heads on this unit produce a brilliant flood pattern of light that is ideal for illuminating enclosed areas and hazardous locations where flammable vapors, gases and dusts may be present.
This explosion proof LED light fixture is comprised of two, 50-watt LED light heads (100 watts total) mounted atop a base stand fabricated from non-sparking aluminum with a convenient carrying handle built into the top of the stand. The aluminum frame features an explosion proof switch built into the cord wrap on the back of the unit. Included with this LED light is 100 feet of 16/3 SOOW cord terminating in a 1523 explosion proof straight blade plug.
This light is universal voltage capable and can be operated with 100-277V AC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 volts. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
This LED light produces 11,600 lumens with a color temperature of 5600K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries.
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
LED Drivers:
Even in LED fixtures, heat is the single largest factor in premature light failure and color shifting. As a result, many manufacturers reduce the output of their LEDs in order to reduce the amount of heat produced. Rather than lower light output or quality, Larson Electronics addresses this problem with the addition of an electronic LED driver. This internal driver provides the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. This not only reduces the energy dissipation, effectively lowering the operating temperature of the fixture, but also prevents AC over-voltage and short circuit loading making this fixture virtually maintenance free. Because the electronic driver allows the EPL-BS-2X70LED-100 to run at a cooler internal temperature and regulates the electrical current, energy efficiency and LED service hours are maximized while at the same time reducing operating costs and downtime incurred from the frequent servicing intervals required with other hotter running lights.
Field Serviceability:
This explosion proof LED light fixture is field serviceable. All major internal components can be purchased from Larson Electronics and installed by a licensed electrician with basic tools. With most explosion proof fixtures, the fixture must be returned to the manufacturer for repair work, which presents downtime and long turn around times for repair work. Larson Electronics addresses this issue with the EPL-BS-70LED series with field serviceability, allowing operators to perform service work without having to return the fixture to the manufacturer in the event of damage or failure.
5-15 Straight Blade Plug
5-20 Straight Blade Plug
6-20 Straight Blade Plug
Wiring/Plug:
This unit is equipped with 100 feet of 16/3 chemical and abrasion resistant SOOW line-in cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets.
Note on Beam Spread:
The 360° beam spread is the standard directional output and typical for flood lights. The 180° shines in only one direction. This is good for down lighting, wall packs and for not blinding oncoming traffic or pedestrians.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Listing: United States & Canada
Dimensions: 22.74"-H x 10.35"-W x 10.25"-D
Weight: 40 Lbs
Total Watts: 100W
Voltage: Universal 120-277V AC 50/60 Hz
Lumens: 11,600
LED Lamp Life Expectancy: 60,000 Hours
Color Temp: 6000K
Beam Spread: 360° or 180°
Operating Temp Range: T5 Rated -40C to 65C
Mounting: Aluminum Base Stand
Wiring: 100` 16/3 SOOW Cord w/ Explosion Proof Straight Blade Plug and Inline Explosion Proof Switch
EXP Cord Cap Options: 5-15, 5-20 or 6-20
