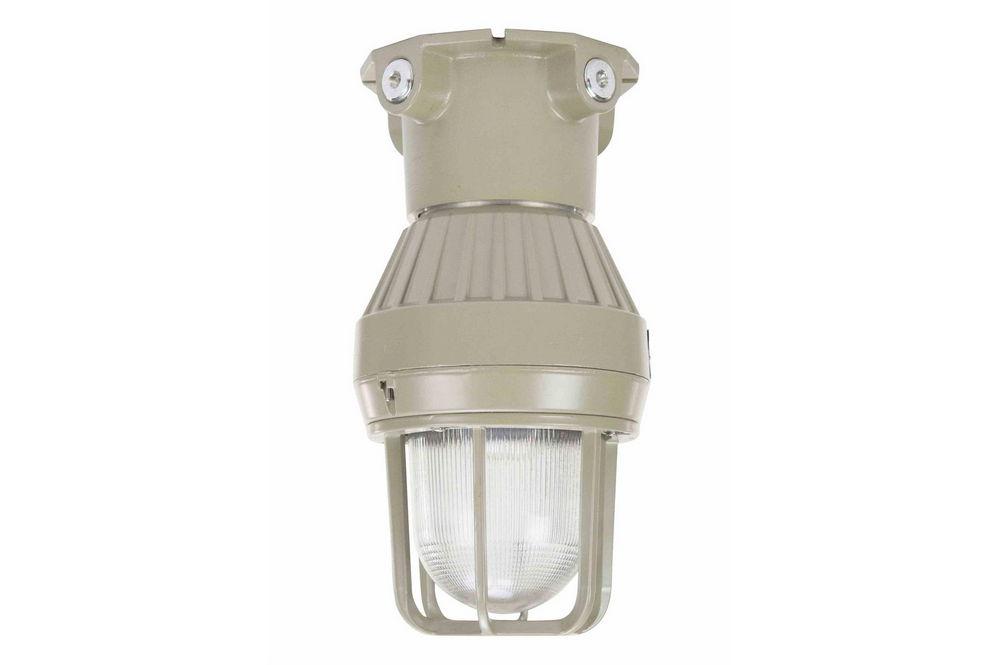

Class I, Div. I, 60 Watt Incandescent Light - Vapor Proof - Fixed Mount - 120 Volts
Class I, Div. I, 60 Watt Incandescent Light - Vapor Proof - Fixed Mount - 120 Volts
| EPL-CM-60W-120V | U.L Ratings |
| Lamp Type: Incandescent | Class 1, Groups C and D |
| Lamp Dimensions: 7.25"-Wide, 15" Height | Class II, Groups E and F (T3 Temp Rating) |
| Lamp Weight: 9 lbs | Class III, Groups E, F and G |
| Hub: 3/4" Threaded | IP67 (water proof) |
| Lumens: N/A | Suitable for Paint Spray Booths |
| Voltage: 120 Volts 60hz AC, | T3C Temperature Rating |
| Lighting Configuration: Steady Burn | |
| Mounting: 3/4" Hub | |
| Temp Rating: T3C | |
| Watts:Â 60 Watts | |
| Wiring:Â 3/4 inch Hub | |
| Made in the USA The EPL-CM-60W-120V Explosion Proof Light from Larson Electronics is UL rated Class 1 Division 1, Groups C, D, and paint spray both approved. Water proof and IP67 rated , this explosion proof incandescent light is available in pendant, ceiling, or wall mount options. The powerful and durable EPL-CM-60W-120V explosion proof light from Larson Electronics is approved for use in paint spray booths and is ideal for industrial applications, hazardous work spaces, and areas where gases, vapors and dusts may be present and an effective and durable hazardous location light solution is needed. The lamp housing is waterproof, constructed of heavy cast aluminum, and UL tested to withstand 1490 lbs. per square inch of hydrostatic pressure. Factory sealed and finished in a durable polyester powder coating, this lamp can be ordered with a choice of mounting options and operates on 120VAC @60hz. | |||||
|
|||||
| This hazardous area light carries a T3C temperature rating and is UL Listed Class 1, Groups C and D, Class 2, Groups E and F(T3 rating), and Class III, Groups E, F and G. This light is IP67 rated waterproof and suitable for use in paint spray booths and areas where flammable gases, vapors and chemicals may be encountered as well as approved for exposure to combustible dusts. The cast aluminum housing is fully factory sealed and includes an integrated inspection hole for easy access to the splice compartment. Wiring is through a 3/4" hub. The 60 watt incandescent lamp in this unit offers good power and economy and is energized by leads which pass through sealing compound that separates the lamp chamber from the wiring compartment. The lamp assembly is protected by an impact and heat resistant clear prismatic globe with heavy gauge aluminum reflector that affords excellent light control. We offer four different mounting options with this explosion proof light. Pendant Mount: Avaliable with a single 3/4" wiring hub, the pendant mount option allows operators to suspend the fixture from the ceiling or other suitable mounting location. The pendant mount option allows the operator to choose the distance of the fixture from the mounting surface by altering the length of the connecting conduit accordingly to achieve the desired position. Wall Mount: Available with 4- 3/4" wiring hubs, the wall mount option allows operators to attach the fixture to flat surfaces such as walls, bulkheads, entryways etc. This option provides optimal placement for identifying specific locations such as exitways, entryways, high caution areas etc. Ceiling Mount: Avaliable with 4- 3/4" wiring hubs, the ceiling mount option provides the most rigid and secure placement of the fixture when mounted to ceiling locations. This mouting option provides a fixed position and has no provision for altering the distance of the lamp from the ceiling. Stanchion Mount: Avaliable with a single 3/4" wiring hub, the stanchion mount option allows operators to mount this unit in locations where vertical or horizontal wall or ceiling mounting is unavailable or undesirable. Additionally, the stanchion mount can be used to produce custom mounting angles or to mount the unit in unusual locations to achieve the best performance from the unit. Number of Hubs and Sizes: The wiring hubs on these units are threaded for connection to rigid conduit and threaded connectors. Pendant and Stanchion mount configurations contain a single wiring hub and can be ordered with a 3/4" hub. Ceiling and Wall Mount configurations are available with 3/4" hubs and contain 4 threaded wiring hubs to allow feed through and series connections as well as connection to vertical or horizontally placed conduit. Voltages: 120VAC draws 0.04A average. Temp Code: Class 1 T3C 230° C - Class2 T3 (Do not install where the operating temperature exceeds the ignition temperature of the hazardous atmosphere.)  | |||||
| Â |
